WELCOME TO JACK'S BEST SPUD GUNS

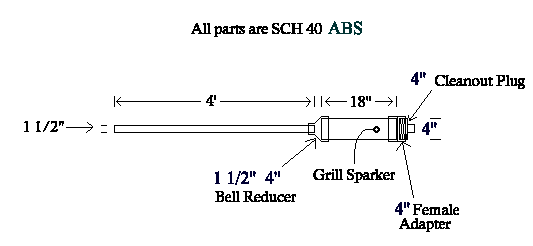

THIS IS YOUR BASIC BIG SPUD GUN
AVOID PVC IF YOU CAN. IT IS MUCH WEAKER THAN ABS, I HAVE HAD PVC BLOW UP BUT NEVER
ABS. PVC GETS WEAK WHEN IT IS TOO COLD OR TOO HOT ABS DOES NOT. YOU CAN TAKE A HAMMER
AND BUST PVC ALL TO CRAP BUT IT JUST BOUNCES OF ABS. PVC CAN NOT COPE WITH CEMICALS ABS
IS SEWAGE PIPE IT CAN HANDEL ANYTHING!
- This is what you will need:
- 4' of sch. 40 ABS
- 18''of sch. 40 ABS
- 4'' to 1 1/2'' Bell Reducer
- 4'' Female adapter
- 4'' Cleanout Plug
- BBQ Lighter
- ABS Glue, Grade Yellow or Black.!!!DO NOT USE PVC GLUE ON ABS!!!
- Drill with 1/2 Drill bit.
I WILL NOT BE HELD RESPONSIBLE IF YOU BLOW YOUR FACE OFF
WITH ONE OF THESE THINGS. SPUD GUNS CAN KILL YOU. THEY ARE NOT TOYS, THEY
SHOULD NEVER BE POINTED AT ANYONE FOR ANY REASON.
Sorry if this is your picture E-Mail me and I will give you credit.
This Is My Picture Example:
1st. Use a sharp hacksaw to gut pipe to size.
Make sure pipe is clean, sand contact areas of pipe.
2nd. Glue barrel to reducer. Give it a twist as you put it in place.
Then use a hammer to tap it in place.
3rd. Glue Female adapter to the 18''(don't get glue in threads)chamber use
hammer to tap in place.
4th. Now glue the reducer to the 18'' chamber. Make sure it is in good use
a lot of glue don't get cheap on me. Take a hammer and tap the barrel top
to make sure it is in good.
5th. Take a paper-clip cut about 1 cm off, then tape or soder it to the peice
of metal on the side of the lighter. Take and bend to were it comes about
a 2cm from the top. Press the button and it should spark.
6th. Now take the cleanout plug and use the 1/2 drill bit and drill all hole in
the sqaure part of the plug.
7th Now before you put it in take the ABS glue and put on the BBQ Lighter threads. Now
stick it in the hole and use the nut to secure it in place let dry for
about 2min and take some pliers and give the lighter a tight COUNTER CLOCKWISE turn not
8th Take a file and round the ends of the barrel so that it cuts the spud to size.
take the end cap off now take a stick or a broom stick and shove the spud down the barrel
Spray about 8 seconds of choke cleaner or hair spray in the camber.
Push the button... BANG whatch the spud fly, and feal the kick!
This spud gun has a range of 200 yards!!!!! Using choke cleaner.
This is another one of my Example Pictures:
Mail me for tips or what ever.
