Galaxy Radios



Updates and Additions

Channel Expansion
COMING SOON

VR 1..............AM S-Meter
VR 2.............SSB S-Meter
VR 3.......SSB Squelch Range
VR 4........AM Squelch Range
VR 6.....SSB Carrier Balance
VR 7...............TX Offset
VR 9................RF Meter
VR10..............Final Bias
VR12.............Driver Bias
VR13.................SSB ALC
VR14...........AM High Power
VR15.....AM Modulation Meter
VR16...........AM Modulation
VR17...............SSB Power
VR18............AM Low Power
VC1..................10.240

Galaxy Melaka

Channel Expansion

1) Remove top and bottom covers and open the radio.
2) Find a small jumper wire on the bottom side of the main board towards the front.
3) This wire is soldered to ground as well as 2 pins.
4) Unsolder both ends of the wire.
5) Make sure the 2 pins are no longer shorted together.

Tweak & Peak

Audio Limiter - VR-14
AM Power - VR-13
SSB Power - VR-12

Galaxy 44V

Channel Expansion

1) Open the radio.No Really?!?
2) Find the small circuit board on the left of the radio.
3) Cut the green wire and tape it off.
4) There is an unplugged connector by this board..plug it in.
5) Near the front of the radio there is a connector marked +10K. Reconnect the plug to the board.
6)That's it. You now have 8 bands of 40 channels.25.165-28.755.

Tweak & Peak

Audio Limiter - R249
AM Power - VR13

Galaxy 55V

Tweak & Peak

Audio Limiter - TR53
AM Power - VR13

Galaxy 66V

Channel Expansion

1) Open the radio.No Really?!?
2) Find the small circuit board on the left of the radio.
3) Cut the green wire and tape it off.
4) There is an unplugged connector by this board..plug it in.
5) Reconnect the plug to the board.
6)That's it. You now have 8 bands of 40 channels.25.165-28.755.

Tweak & Peak

Audio Limiter - TR53
AM Power - VR13

Galaxy 73V

Channel Expansion

1) Remove the bottom speaker cover.
2) Remove the screw holding the small silver freq. counter module.
3) Locate the loose 8 pin connector and plug it in to J1.
4) Clip the short jumper wire on the rear corner of the microprocessor board.
5) That's it. You now have 8 bands of 40 channels.25.165-28.755.

Dual Watch

1. Locate the cut yellow and gray wires on J2
2. Locate the cut yellow and gray wires in the wiring harness
3. Solder the two yellow wires together and the two gray wires together
4. Tape up the solder splices and replace the speaker cover

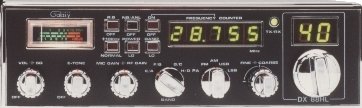

Galaxy 88 HL

Channel Expansion

1) Remove the covers on the radio.
2) Find the small long boardon the keft side with the radio upside down.
3) Remove the RED jumper wire on top of that board.
4) Close the radio, plug in the power cord , and turn it on.
5) That's it. You now have 8 bands of 40 channels.25.165-28.755.

Tweak & Peak

Audio Limiter - TR53
AM Power - VR13

Galaxy 99V

Tweak & Peak

Audio Limiter - TR53
AM Power - VR13
