Ford Drawings for 1988

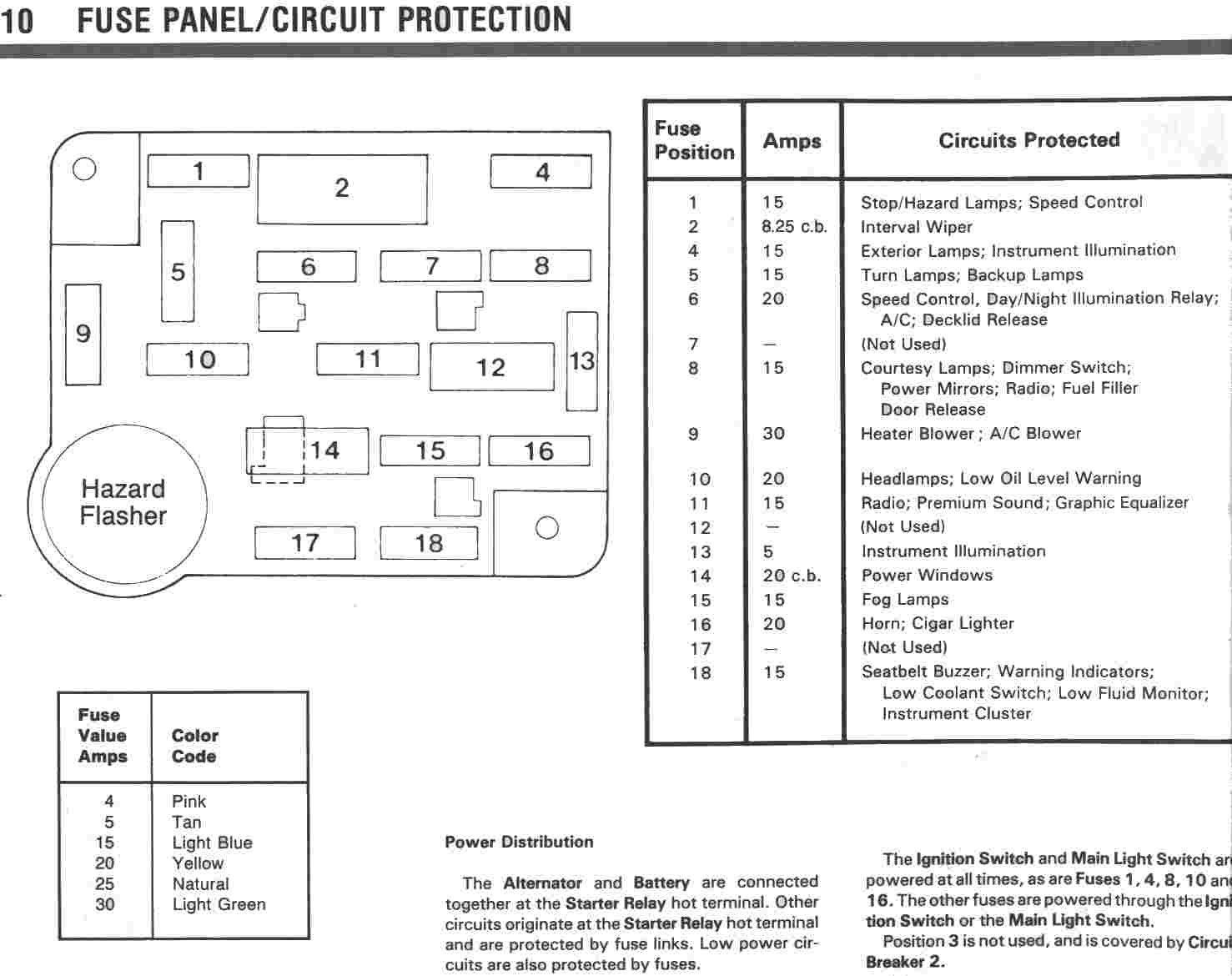

The diagram below is excerpted from "Electric and Vacuum Troubleshooting Manual", FPS-12121-88; Copyright © 1987 Ford Motor Company.
