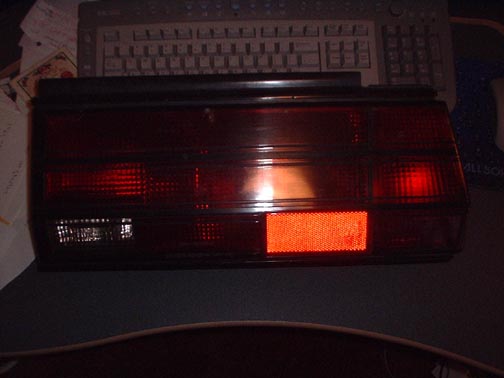

| Tail light once removed form Starion |

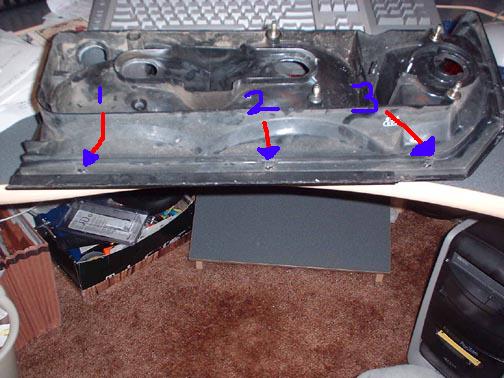

| First you need to soak the whole light in HOT water for a few mins. to melt the factory glue that holds it all together. Then there are 6 tabs, 3 on top then 3 on the bottom. Use a screw driver to pry apart the lens from the assembly at the tabs. If it's hard to pry apart soak longer in the HOT water!!!! |
| This is the lense once removed from the assembly |
| Once you removed the clear cover lense there will be a 2 piece lense remove both |
| Once removed it will look like this, apply new silicone around where the clear lense connects to the assembly |

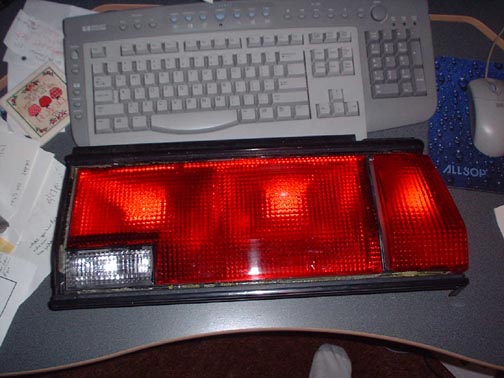

| Once it's all assembled |

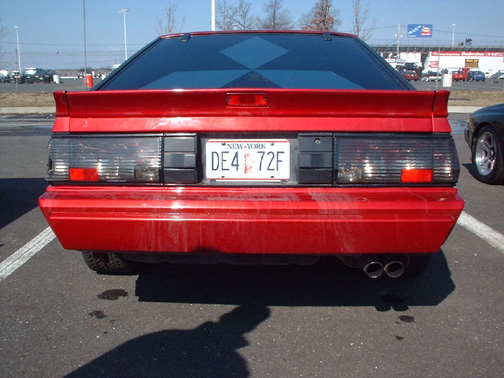

| Installed on a Starion (not my starion in this picture) Just remember to use RED bulbs!! |

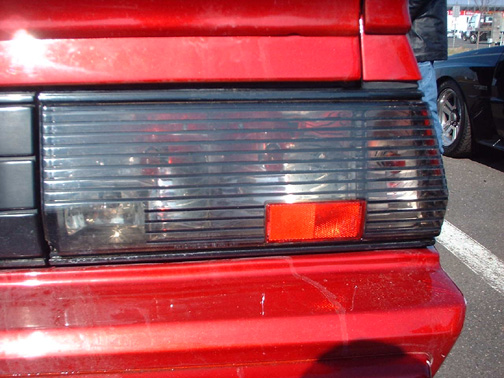

| Clear tail lights.. |
