Paper cutting knives
Paper Cutting / Sheeter Knives
New times bring new and faster technical developments and in the printing industry this is specially so. Th
e requirement is to increase production and to improve quality control and efficiency. In attaining these goals tungsten carbide has an important role to play. Worked up as machine parts and assembled in cutting knives Star has fulfilled the function for which it was specifically assigned. Tungsten carbide with its high wear resistance and great edge strength is the ideal material for the manufacturing of paper cutting knives. Since its introduction in 1965 Star is able, despite the considerable difference in expansion between steel and tungsten carbide, to produce paper cutting knives to almost any length. Quality control, efficiency and product innovation for the printing industry are of vital importance. Star tungsten carbide cutting knives therefore strengthen the position of those firms who use them, because:
of a ten to twenty-five times longer life of drastic reduction of machine down-time and production loss caused by the lack of need for frequent knife changes.
as a result of the minimum grinding loss a considerably longer life with greater operational reliability is achieved.
of superior cutting quality thanks to the unique wear
resistance properties of tungsten carbide which give razor sharp cutting
edges with extremely fine finish allowing smooth and neat cutting with
minimal dust formation.
Star develop and manufacture, in their own plant,
tungsten carbide knives for the paper, printing and film industry.
Through our offices at Amritsar knives are exported world wide
and so, in this area too, our company has a highly respected international
reputation
This website has been revised please check our new website Click here.
Paper Cutting / Sheeter Knives
Paper Cutting
Knives
Sheeter Knives for Paper, Card and Corrugated Card Knives for packaging equipmentAll the blades in this range are available in a choice of 4 different grades of material: Standard Tool steel - Well approved for Universal useHigh Carbon, High Chrome - Harder Wearing Tool steel High Speed Steel - 18% Tungsten Carbide, approx 400% higher cutting yieldSolid Tungsten Carbide Tipped for the Ultimate cutting edge This website has been revised please check our new website Click here. The table below shows the make and models of machines we are currently familiar with. If the machine you use is not listed - then please enquire and we will be pleased to help. |
Make |
Models |
ATLAS | A78Z, A80Y, A80Z, A106, A132, A152, A25/35X, A25/35S, A30/42VH, A30/42H |
MC CAIN - BREHMER | 771, 772, 745 |
BREHMER STAHL | SM300-4, SM300-5, SM300-6, SM300-8, SM300-9, SM300-10, SM300-12, ST100, SM300 |
CEELEN | 77, QZ92 |
CASAGRANDE | Swiss Hydrocut |
COMECA (F:T:P) | FTP76, FTP82HY, FTP107HY, FTP112HY-S, FTP112/115HY-S, |
COMO | 78 H 1/S 31", 92 H 2/S 36", 110 H 3/S 343 1/4", 115 H 4/S 4 45", 82 HY 32", 92, 110, 115, 155, Super 36 1/4" 92, Super 46" 117, Super 52" 132, Super 57" 145, Super 59" 150/155, Super 65" 165, Super 97" 220, Como H3 109/110/43" 43¼" |
CORTA | 56, 58, 72, 72 New, SM78, 92, 92 New |
DAHLE | 510/36, 540/36, 545/46 |
DÖRRIES-PRINTAX | 78, 80, 82, 86, 92, 92 New, 107, 115, 138, 145 |
EHINGER/EBA | EBA 4/360 Multicut, EBA 4/360 Multicut, EBA 480 Multicut, EBA 10/520 Multicut, EBA 10/550 Multicut, EBA 10/710 Multicut, EBA 10/720 Multicut |
F.L. | 72, 76, 82, 92, 92 New, 106, 115, 115 (10/87), 125, 135, 150, 165, 185, 200, 225 |
GRAPHA/USA | 1522, Punchcut |
HEREBOLD | 46, 51, 52, S65, H65, H72, H72 6/67, TS72, S76, S83, S83ab, 88, 90, S92, S107, S110, S107S, S115 |
HÖRAUF | BS SN130 717, AVH 72, ASN 131, SN 135 A, SN 138, 145AF, 150SN, 2001, 135S |
HUNKELER | HDS 36/46, HDS 35/47 |
ITOH | 72, 85, 100, 115A, 115B, 130, 132, 147, 160, 170 |
JACKAL / QUEEN | 720, 850, 1000, 1150, 1300, 1320, 1470, 1600, 1700 |
JUD | M50 / 52 Hydramatic, M61, M67, M72 / 76 Challenger, M80 / 82, M82 / 84, M92, M106, M106 / 108, M110 Challenger |
JURINE | 82, 106, 106 New, 125, 125 New |
KOLBUS | HD, HD49, FD49, HD140, MD55, MD155 |
KRAUSE-BIAGOSCH | A36, A52, A30 / 43D, A68, A70, A72B, A72OH, A72, A76N, A78N, A76, A80, A82, A86, A88, A92, A106, A115 |
KRUG & PRIESTER (IDEAL) | FORTE 360, 3610,
38, 45, 52 IDEAL 3905, 3915, 4800, 4810, 4850, 5210, 5250, 5221, 5220, 6500, 6550, 7200, 7228 |
L`HERMITE | 82 R2A, 82, 106, 114, 132, 165, 200 |
MACEY-HARRIS | 630, 636, 542/8, 543, 532/4, 454, 640, 642, 562, 650, 652, 450, Multibinder, Stanzen Chop Out, Trennen Parting |
MANDELLI | LMM 58, 62, 63, 72, 76, 82, 105, 107, 115, 132, 137, 150, 155 |
MAZIMA-ADAST | MJ46, MM58-S, MM58 New, MM80, MH78, MS82, MS92, MS106, MS107, MS115 |
MC CAIN | Standard A 20" 2500 XL OT, BA 20" MTA, MTC, Headcut, Standard A 13½", OT3000 High Speed, OT3000 24", 4th 5th Equal Str., 4th 5th High Speed, Stanzen Punching, Trennen Chop Cut |
MÜLLER-LANGENFELD | HF33C, C2 |
MÜLLER-MARTINI | DSS/890, 414-515, 217, 221, 235, DSS890 (514-515), DSI708/877, DSS/890 6mm, DSS/890 135 MS100, DSS 10mm, DS240, DS241, DS250, DS251, DS304, DS360, 3670 Old, 3670 New, DSS890, DSS0890, |
OSAKO | 368 / OT - 3A, 378 |
OMAC | T/C 73-76, TH76, T/C82, TOE84, TN/X/H90 / 91, TOE92, TH/A 103/105, TOE103/105/108, TNH105, T/N/H/E 117, TOE118/120, TOE131 / 135, TOE148, 155, 154, 150, 170, 175, 200, 220, 260 |
PERFECTA | 76, 76 New, Asp 78, Asp 83, S87, 92, Asp 105, Asp 106, 107, 115, 132, S167, 168, S220, S225, SD75F, SD100F, SDY-EZ, SDY-EZ-11, SDY-1, SDY-2, SD40/f, ADN30/42, D30/42, ADF25 / 35, D30 / 42 |
PIVANO | FG52, 76, 78, 82S, 82A, 82SR, 82 R/H, 103S/N, 105, 107H, 108, 112H, 113, 118H, 130, 135H, 170H, 170 |
POLAR | 55, 58EL, 66, 71, 72, 76, 78. 80, 82, 82EL, 86, 88, 90, 86ab, 92EL, 92CE, 105, 107, 115, 132, 137, 145, 150, 155, 176, 176EL, 107, 145 |
PRESTO | 82 |
RADOR | Simplex, Auto-Rador |
ROBUST | 45, 83 |
R.P.M. | 80/82, 105, 107, 115, 130, 132, 153, 165 |
SCHIMANEK | HS46, SH46, SH52, HS64, 66, SH66, SSH66, SSH72, SH80, 81, HHS81, 82, SSH 86/87, 92, SH90, SSH106 |
SCHIMANEK - UNIVERSAL | 21", 28" 30½", 33", 35½", 39", 42", 47", 57" |
SCHNEIDER | Konsul 78, 86, SHE 78, Senator 76, 78, 82, 92, 106, 110, 112, 115, 132, 137, 137H, 155, 185, 220, 260 |
SHERIDAN |
CT Trimmer, CT Special Trimmer, CT-325, HT Trimmer, SL VT-1 Trimmer, VT-II Trimmer, VT200 |
SPERR & LECHNER (SPLEK) | Hydromat SL III M, SDL III M, SL900 |
THEISEN & BONITZ | HFS |
TRÄNKLEIN | DS III 57K, 58, 57, SM80, 86, 89, 92, 115 |
WOHLENBERG | 76GW, 76G, 76K, 76F, A78, A86, 88, 90 92, 92G, 92F, 90F, A105CG, A106 DNE, A106, A107, A107E, A112, A115, 115H, 132S, 132 U/T, 132F, 137F, 137H, A146, 150F, 155F, 155H, A165 sh, A165 U/T, 180F/MCS, 185F, A220U, 38F, 38 FS 30 |
|

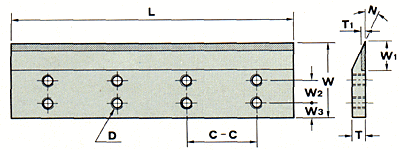

Knife specification can be made as
customer require.
Size
|
L
|
W
|
W1
|
W2
|
W3
|
T
|
T1
|
C-C
|
D
|
N
|
|
254~3200
|
50~200
|
25~75
|
25~150
|
19~150
|
6.35~19
|
3.175~6.135
|
75~250
|
6~19
|
20~35 |
|
10"~126"
|
2"~8"
|
1"~3"
|
1"~6"
|
0.75"~6"
|
0.25"~0.75"
|
0.125"~0.25"
|
3"~10"
|
0.25"~0.75"
|
Standard Tungsten Carbide STAR Long Life Tungsten Carbide
