There are two simple versions of an orgone detector that I've tried. They both work quite well, & they are sensitive enough to detect biological energy without picking up too much outside interference.
The tester will be the most sensitive to a particular object if it runs perfectly "in phase" with any ambiant interference. If there's a lot of AC interferance in the area, (such as flouroscent lighting) running it directly from the AC power will help cancel out the interferance.
The design works on the simple principal of orgone/aether's ability to alter the dielectric properties of an insulator. They MUST be running at a STABLE oscillation frequency, straight DC won't work.
Voltage level is not critical to how the tester operates, only on the meter readings.
The 555 timer based circuit uses a pair of resistors to reduce measurable output down into the millivolts range. This can be ommited, or taylored as you see fit. This is more suseptable to RF interferance from AC power sources than the simpler circuit. Use a metal enclosure for your finished circuit board. Higher orgone concentration levels cause a rise in the measured voltage. All of the 555 based oscillator circuit componants (except the .004 pf cap) came from Radio Shack for less than $10 US. I have found that this “portable” unit seems most accurate when adjusted to a freq. range of 100 to 160 hz.
The simpler unit only has 1 electronic componant, plus a high impedance AC volt meter. Higher orgone concentration levels cause a rise in the measured voltage
with this one too.
Be certain to well insulate all connections, for safety, and also be sure not have any part of your body within a few inches of the wires that lead from the meter to the detector tip as your own biological energy will affect the results.
Use a high impedence (10 meg or higher) AC volt meter, set to the lowest scale allowable. Non-true RMS meters may work best. O-scopes are fairly useless for this purpose.
I mounted everything to a 1”X1” piece of wood that's 30” long to get the detector tip into orgone field areas without my own energy creating any disturbances within the test area.
The low value cap is the hardest componant to come by. Digi-Key™ offers them, as does Information Unlimited™. You might want to try a TVrepair facility, though board level repairs are becoming a thing of the past. I've also tried a “12AV6” vacuum tube, useing only the 2 pins that lead to isolated plates. these tubes are available from Radio Shack™ for about $1 US plus S&H.
I'm interested to hear any & all results from other experamentors!
Simple Orgone Meter
An "Orgone Meter" or detection device can be used to find aetheric energy in and around Hamel Devices, "Lifters" and many other devices, along with measurement of true biological energy.
This type of device works on the principal of orgone/aether energy's ability to alter the physical properties of a dielectric (insulator).
Those properties are being dynamically stressed & measured by injecting a frequency across a very small value capacitor with an AC voltmeter in series with it. The current that can actually flow through the circuit is extremely small & is not as important as the "available" voltage that is capable of "passing" through the capacitor's dielectric layer.
How to build a simple Orgone Meter:

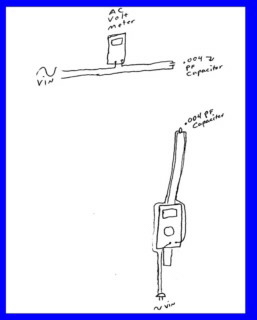

AC Input Circuit

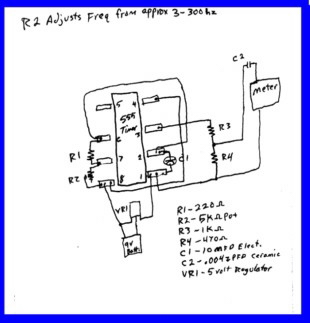

555 Timer Circuit
*More pictures to come later on*
