Introduction
- Vector quantization (VQ) has been commonly used in the compression
of image and speech signals. In vector quantization, a reproduction vector
(codevector) in a predesigned set of vectors (codebook) approximates each
set (vector) of the input signal. This representative codevector, the nearest
neighbor of the source vector, gives the least dissimilarity (distortion)
among all the codevectors in the codebook. In vector quantization, compression
is achieved by transmitting or storing the indices associated to the codevectors
instead of the codevectors because of the far fewer bits required for the
indices. The following Figure 1 shows the principle
of the resulting encoder and decoder.
- Vector quantization is the extension of scalar quantization. Basically
in signal processing converting a analog source - continuous time and amplitude
- into a digital source - discrete time and amplitude - results in two
operations: sampling and quantization. In the following context,
a source is regarded as stochastic process described by a probability density
function. A particularly realization of such a source is a signal. So sampling
means to convert a continuous-time signal into a discrete-time signal –
a set of data samples. Quantization means to convert a continuous-amplitude
signal into a discrete-amplitude signal.
- Vector quantization is characterized by its dimension,
equal to the number of data samples in a set, which is quantized jointly
as a single vector. Then vector quantization means to approximate an infinite
set of vectors by a limited set of vectors. This approximation can be regarded
as a lossy compression method characterized by its distortion
and its compression rate. The distortion measures the loss of information
induced by the quantization. For images is this loss a degradation in details.
The compression rate measures the gain in representing the samples by passing
from an infinite set to a limited set. In the sense of transmission, a
large compression rate implies a low bit rate and low compression
rate implies a large bit rate to transmit the same number of data
samples in the same time.
- In image processing vector quantization is used as a lossy compression
method to reduce psychovisual as well as statistical redundancies in the
image data.
- Vector quantization is based on two principal theories: Shannon
rate distortion theory and high-resolution theory. The two theories
are complementary in the sense that Shannon rate distortion theory prescribes
the best possible performance of quantization with a given bit rate and
asymptotically large dimension, while high-resolution theory prescribes
the best possible performance with a given dimension and asymptotically
large bit rate.
- So vector quantization based on the Shannon rate distortion theory
exploits the interdependencies of the data samples to gain performance;
in especially to transmit with the same bit rate more information. With
increasing dimension this interdependencies approximate the probability
density function of the source. As a result the Shannon rate distortion
theory leads to a small codebook with a large dimension.
- Instead vector quantization based on the high-resolution theory assumes
a uniform probability density function for the source. In case of non-uniformity,
a high bit rate is imposed to attain a local uniform probability density.
A high bit rate means to transmit more codevectors for the same amount
of information. This is resulting in a large codebook with a small dimension.
So when dimension as well as bit rate is large, both theories merge. Obviously that each theory leads to its own design philosophy.
- Further theoretical background for both theories can be found by Gray
and Neuhoff [1] and by Gersho and Gray
[2].
- The quantization can be decomposed into two operations: a lossy
encoder a and a reproduction decoder b. The lossy encoder a
is the mapping from the set of source vectors X Ì
Rk to the index set I = {1,…,i,…N}. So a k-dimensional vector
xÎ
X is represented by a index iÎ I. There
the set of vectors X is the infinite set of all possible combinations of
k data samples. The index set I is a finite set of N indices. The reproduction
decoder ? is the mapping from the index set I to the reproduction set Y
Ì
Rk.
- To each index i is associated a reproduction vector yiÎY,
whereby Y = {y1,…,yi,…,yN}.
There the original set of source vectors X is partitioned in N subsets
(regions) and each vector falling in a subset is represented by the associated
reproduction vector. So the reproduction set Y represents with less vectors
an approximation of the source.
- The reproduction set Y is also named codebook and its reproduction
vectors codevectors. In fact in most vector quantization methods
the reproduction set Y is used as codebook to encode and to decode the
vectors as presented in Figure 1. Depending on the
theory the operations encoding and decoding varies or can further be decomposed.
- The difference between the source vector and its associated codevector
is the distortion (quantization error, quantization noise) measured by
a cost function. Commonly used cost functions are norms so the difference
between the source vector and codevector becomes a distance d. In
image processing, Euclidean norm as the cost function, is the most
used distortion measure. However for vector quantization the squared Euclidean
norm or mean squared error is applied to simplify the computation.
It has been shown that mean squared error does not correlate well with
human quality requirements. In especially, details in an image such as
edges and breaks getting blurred by using the mean squared error.
- Given the source vector x and the codevector yi
the squared Euclidean distance or mean square error is given by
(1-1)
- With a distortion measure and the probability density function of the
source an optimal codebook can be designed. Optimal in the sense that the
average distortion between each possible source vector x and the
codevectors yi is minimal.
(1-2)- Commonly this distortion is expressed by the peak signal to noise ratio.
(1-3)- There the peak value is the maximal attainable source sample.
- So the codebook is partitioned such that for each vector x a
nearest neighbor codevector yi exists. Mathematically
spoken this partition is called Voronoi or Dirichlet partition

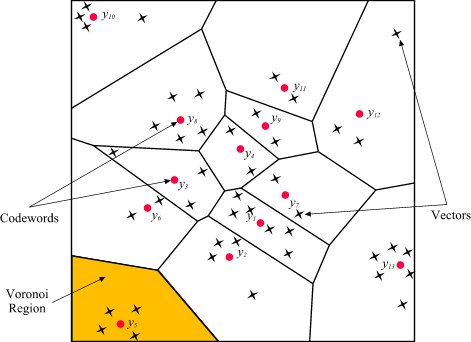

and the codevectors are the centroids of each region. The following
Figure
2 represents the two dimensional case.
- In general the probability density function of the source is rarely
known. To circumvent this problem the rate distortion theory and high resolution
theory offers each a solution.
- The later one is to choose a large number of codevectors. The associated
regions are small and high structured as a lattice. So instead to
find the nearest neighbor the number of codevectors is raised such that
for each vector x the distortion is approximately constant. As mentioned,
this results to a local uniformity of the source probability density function
and a high bit rate.
- The other solution is to use a training set representing best the source
to optimize the codebook. To achieve this, a clustering algorithm
is used. Such an algorithm is the Lloyd algorithm. It iteratively improves
a codebook by alternately optimizing the encoder for the decoder - subdividing
the codebook in regions (Voronoi regions) in the manner that the average
distortion for the given training set is minimal, and the decoder for the
encoder - replacing the codevectors by the centroids. This is repeated
until the average distortion and rate converges to an inferior limit set
by the Shannon rate distortion theory. So the codebook is optimal for the
training set but not necessary for the set of source vectors. Other clustering
algorithm are known such as the pairwise nearest neighbor algorithm by
Ward and Equitz, k-means algorithm, neural net approaches, simulated annealing
and stochastic relaxation algorithms just to mention some.
1.2 Classification of Vector Quantization
- Vector quantization can be classified into vector quantization with
and without memory. Memoryless vector quantization encodes each
source vector separately instead vector quantization with memory encode
the source vectors exploiting in addition their interdependencies. A coarse
criterion is the rate, most memoryless vector quantizations have a fixed
bit rate and most vector quantizations with memory have a variable bit
rate.
1.2.1 Vector Quantization
without Memory
- In practice to get reasonable vector quantization performance there
are two different approaches. One remains with the original optimal vector
quantization and uses fast algorithms for the nearest neighbor search.
This is named as unconstrained or unstructured vector quantization.
The other uses simple search algorithms and, as a consequence of the simplicity,
an approximation of the optimal codebook. This is named as constrained
or structured vector quantization.
Unconstrained Vector Quantization
To encode a source vector the closest codevector (nearest neighbor) in the optimal codebook is determined by using different search methods.
Full Search Vector Quantization For given sources vector the distortion to each codevector in the codebook is computed. The codevector with the minimal distortion is chosen as the reproduction vector.
Fast Search Vector Quantization To speed up the search procedure only a subset of codevectors is used. To decide which codevectors have to be considered an inherent property of the source vectors is used. Such properties are obtained by a transformation like principal component analysis, Walsh-Hadamard transformation, discrete cosine transformation or hyperplane partitioning. An other method is to use a geometrical criterion such as the triangular inequality to exclude codevectors from the search.
Constrained Vector Quantization
To encode a source vector a constrained codebook is used. In this case the codevector is an approximation of the nearest neighbor vector resulting in a suboptimal encoding.
Tree Structured Quantization The codebook is structured as a tree there beginning by the root the branches with the minimal resulting distortion are chosen.
Classified Vector Quantization The codebook is divided in several sub-codebooks. Where the sub-codebook for a given source vectors is selected by an appropriate criterion. This criterion is based on an inherent property of the source vectors.
Product Code Techniques The set of source vectors is divided in approximately independent subset. Each subset is encoded by its proper codebook. Depending of source different methods are used known as partitioned vector quantization, mean removed or mean residual vector quantization, shape gain vector quantization, pyramid vector quantization, polar vector quantization, multistage or residual vector quantization.
Lattice Vector Quantization The codebook is a regular lattice there all regions having the same shape, size and orientation.
