Spesifikasi Kendaraan


  Taft Hiline GTS Taft Hiline GTL Taft Hiline Pick-up Taft GT Rocky New Taft GT New Rocky US Rocky ('90-'92)

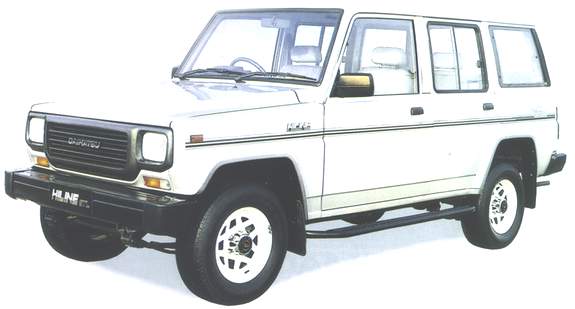

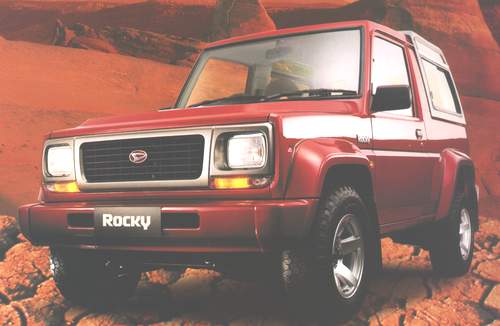

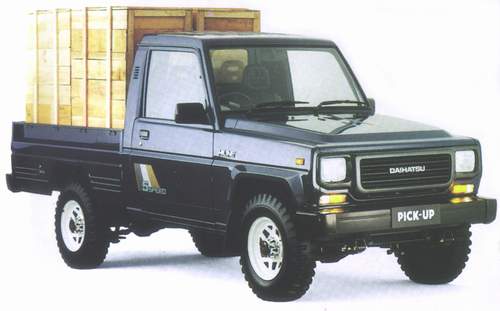

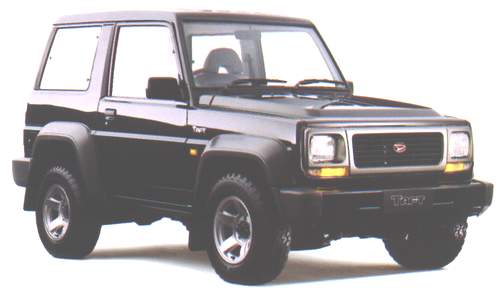

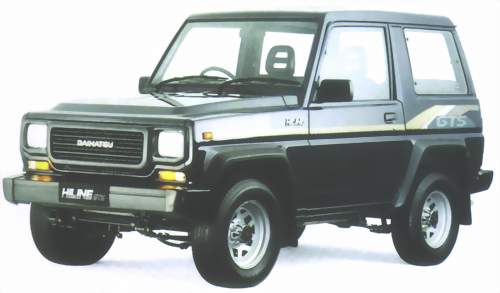

taft_gts.jpg (17571 bytes) taft_gtl1.jpg (21072 bytes) taft_pckup.jpg (19300 bytes) taft_gt.jpg (19707 bytes) rocky.jpg (16678 bytes) taft_new.jpg (15749 bytes) rocky_new.jpg (22252 bytes)
Panjang 3775 mm 4580 mm 4560 mm 3775 mm 4100 mm 3761 mm 4063 mm 3785 mm
Lebar 1660 mm 1580 mm 1580 mm 1660 mm 1660 mm 1754 mm 1754 mm 1740 mm
Tinggi 1840 mm 1840 mm 1830 mm 1840 mm 1915 mm 1848 mm 1908 mm 1720 mm
Wheel base 2205 mm 2800 mm 2800 mm 2205 mm 2530 mm 2210 mm 2520 mm 2175 mm
Tread (front/rear) 1370 / 1350 mm 1320 / 1300 mm 1320 / 1300 mm 1370 / 1350 mm 1370 / 1350 mm 1482 / 1484 mm 1482 / 1484 mm 1480 / 1480 mm
Ground Clearance

210 mm

165 mm

205 mm

Berat (Kosong) 1340 kg; (Total) 1905 kg (Kosong) 1490 kg; (Total) 2570 kg (Kosong) 1504 kg; (Total) 2570 kg (Kosong) 1380 kg; (Total) 1905 kg (Kosong) 1470 kg; (Total) 2085 kg (Kosong) 1553 kg; (Total) 1973 kg (Kosong) 1590 kg; (Total) 2090 kg 1322 kg
Mesin

diesel; 4 cylinder; 4 langkah; berpendingin air

diesel; 4 cylinder; 4 langkah; berpendingin air (HD-E) in-line 4 cylinder; SOHC 16 valve EFI
Kapasitas

2765 cc

2765 cc 2765 cc 1598 cc
Diameter x langkah

92 x 104 mm

92 x 104 mm 92 x 104 mm 76 x 87,6 mm
Tenaga Maksimum 74 PS / 55 kW - 3600 rpm

76 PS / 56 kW - 3800 rpm

70 kW - 5700 rpm

Torsi Maksimum 17,5 kgm/172 Nm - 2200 rpm

170 Nm - 2200 rpm

128 Nm - 4800 rpm

Rasio Kompresi 21,5 : 1

21,1 : 1

9,5 : 1

Kopling single plate; dry clutch; diafragma dikontrol secara mekanis

single plate; dry clutch; diafragma dikontrol secara mekanis

single plate; dry clutch
Transmisi 5 speed manual; 1 speed reverse; tongkat pemindah di lantai dan sinkromes

5 speed manual; 1 speed reverse; tongkat pemindah di lantai dan sinkromes

5 speed manual; 1 speed reverse

Transfer Case               2 speed Hi / Low manual free wheeling hubs
Gear Ratio

(1) 3,467; (2) 2,136; (3) 1,382; (4) 1,000; (5) 0,860; (R) 4,351

(1) 3,647; (2) 2,136; (3) 1,484; (4) 1,000; (5) 0,860; (R) 4,351

(1) 3,752; (2) 2,820; (3) 1,428; (4) 1,000; (5) 0,865; (R) 3,952
Transfer (Hi / Low)       1,297 / 2,370 1,297 / 2,370

1,297 / 2,370

1,000 / 1,754
Suspensi

(Depan) axle type; pegas daun; shock absorber double action; stabilizer lateral control rod

(Belakang) axle type; pegas daun; shock absorber double action

Independent suspension:

(Depan) double wishbone type; torsion bar spring; shock absorber double action telescopic; stabilizer lateral control rod

(Belakang) five link type; pegas keong; shock absorber double action telescopic

(Depan) independen; upper & lower wishbones dgn torsion bar springs; anti-swy bar; 2 way gas / oil shocks

(Belakang) live axle; leaf spring; 2 way gas / oil shocks

Rem

(Depan) tipe cakram / disc dgn booster

(Belakang) tipe drums, trailing dan leading

(Depan) tipe cakram / disc dgn booster

(Belakang) tipe drums, trailing dan leading

(Depan) power assisted 277 mm ventilated discs

(Belakang) power assisted 254 mm drums

Kemudi power-streering; ball-nut (24-28)

power-streering; ball-nut (28-32)

power-streering; ball-nut
Radius Putar 5,1 m 6,4 m 6,4 m 5,1 m 5,8 m 4,9 m 5,4 m 4,9 m
Ban (Depan-Belakang) 235/70-SR15 (Depan-Belakang) H78/235-SR70 (Depan-Belakang) 700-15-6PR GG (Depan-Belakang) 235/70-R15 (Depan-Belakang) 235/70-R15 (Depan-Belakang) 235/70-R15 (Depan-Belakang) 235/70-R15 (Depan-Belakang) 225/70-R15
Kapasitas Tangki

60 liter

60 liter


(sumber: brochure Daihatsu Taft dan Rocky; PT Astra Daihatsu Indonesia, Daihatsu World; http://daihatsuworld.hometead.com)
