CRASHIUS CLAY: number 2 |
all new construction af clay, we chose stainless steel with accents of titanium in the crucial areas. With help of Jasmina's pop Koyo, He did the welding in 3-4 days |
we purchased some goped wheels at the local dealer. not bad total height was 5" total, I think ?? |

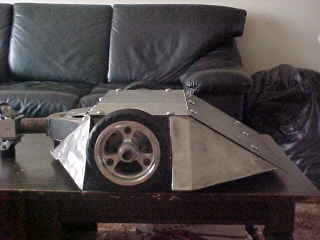

nice pic of the couch, the rims are actually two piece, they can be split on the axle, just a little spendy |

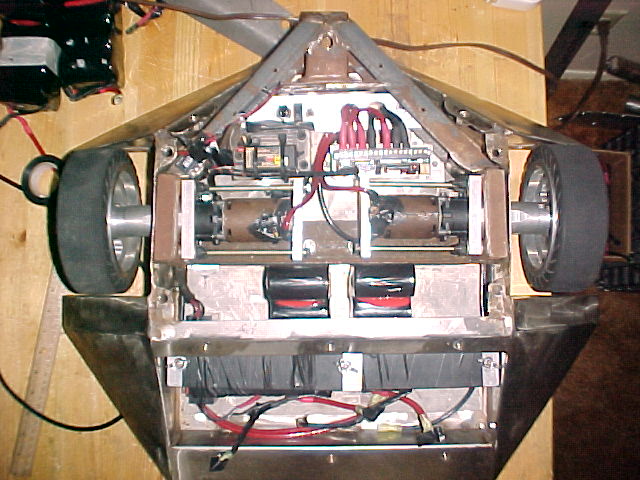

inside shot with the sub-frame in. It is removeable if needed for repair |

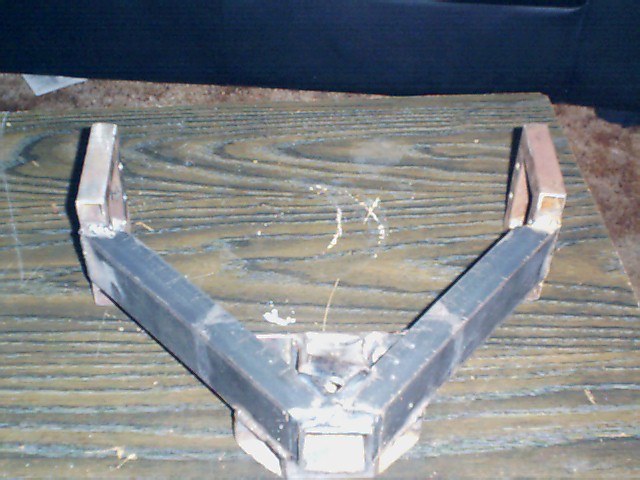

sub chassis was welded with c-channel steel and 3/4" square tubing |

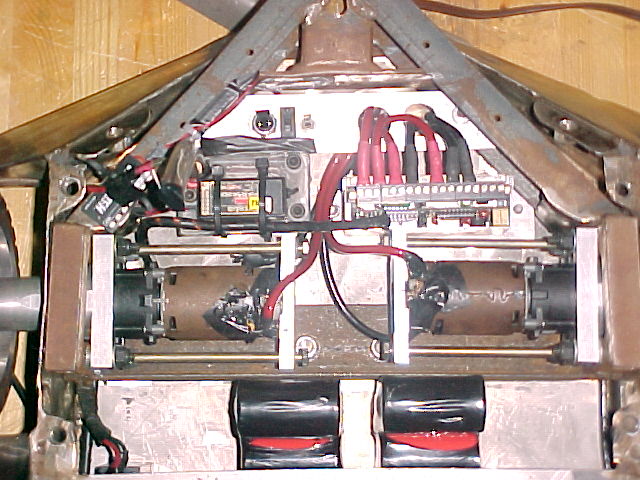

we used the old DeWalts from version 1, and the Vantec RDFR 23 |
full shot with the old axles also, tight package, this foto has two battery packs, It can hold four packs and be under 60 lbs. |
close up of the weapon mount, the weapons can be interchanged according to who we fight |

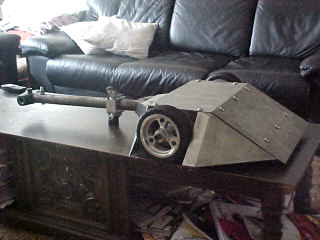

rear shot with the weapon installed, caster mount has wheels on both sides so it can ride inverted |
front pic, and again this version was built in the living room of our apt. |
angles came out right, low to the ground and ass whipping |
2000-02,Team Green Machine |
