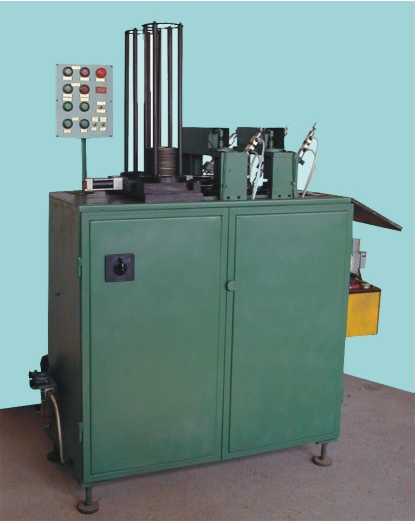

Saelent application machine


Technical Parameters:


  1. Output rate (components/min) - 30
  2. Installed power (kW) - 1.1
  3. Power supply (V;Hz) - 380;50
  4. Overall dimension
    length (mm) - 1300
    width (mm) - 500
    height (mm) - 1500

This machine is designed for application of single-component and double-component sealents in filter production. The sealents are applied in two parallel flows with two working positions each. The transposition of the components and their fastening in working position is performed by mechanisms controlled by an automatic pneumatic system. The different rate of rotation in the first and in the second position allows application of sealents of different density. The amount of the applied sealents is controlled by an angular position sensors. The components are fed automatically from a feed bin with stopping mechanism, or menually when the components are not suitable for automatic feeding.
