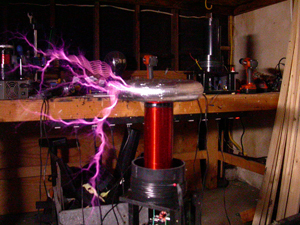

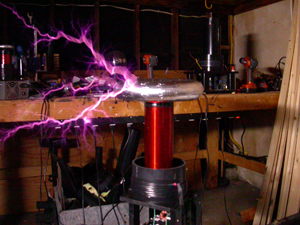

| -Screamer Dual Resonant Solid State Tesla Coil- |
 |
 |
| -------------SPECIFICATIONS-----------: Tank Cap: 50nF, 4KV Secondary Winding: ~1200 turns of 32 AWG magnet wire on 3.5" OD X 12" ABS pipe Fres: 200KHz Primary Coil: 7 turns of 10 AWG stranded wire on a 6" ABS form. Toroid: 10" X 2.0" Power Section: Full Bridge of HGTG20N60A4D IGBT's. Spark Length: ~20" max off 120VAC outlet drawing about 160 Watts. -------------FEATURES------------- 290 bursts per second!!!!! Power switch is on cord. No variac is need, simply plug in and flip the switch. This coil does not need or use a breakout point! Protected from primary strikes. If this coil ever fails, ship it back to me and I will repair it free. |
|
 |
 |
 |
 |
| :DISCLAIMER: I am not responsible for any death/deaths, injury/injures or damage to property persons or animals from the use/misuse of this Tesla coil. This tesla coil is a dangerous device and if you do not understand the unpredictability of high voltage then please do not purchase on this item. Transactions are carried out via the encrypted paypal button below. |
| Availible here through PayPal! scroll down for details and PayPal link. |
| Please allow up to one week for delivery. |
|
| Price is 370.00 USD +22.00 shipping. To anywhere in the US plus canada. The coil will be shipped via UPS ground. If you would prefer USPS be sure to let me know. |
 |
 |
