INSTALLLING THE CRUISE CONTROL ON MY TRIKE.

I PUT THE MAGNETS ON THE 2 WIRES 5.5" APART.
THIS SHOULD BE 180 DEG APART WHEN PUT
ON THE CV JOINT.

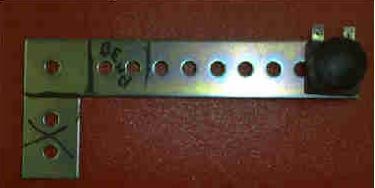

THIS IS WHAT I USED TO MOUNT THE PICKUP
I CUT THE PART WITH THE X ON IT OFF, THEN BENT IT AT
THE NEXT MARK. THAT GAVE PLENTY HOLES TO LINE UP ON
THE MAGNETS. YOU MAY HAVE TO PAY WITH THIS.

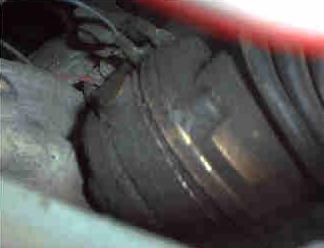

A SHOT OF THE PICKUP MOUNTING FROM ABOVE

THIS IS WHERE I MTD. THE PICKUP, ON THE SIDE PLATE
OF THE TRANSAXLE. I MTD. IT ON TOP BUT YOU COULD
MOUNT IT ON ANY OF THE BOLTS AROUND THE SIDE PLATE.

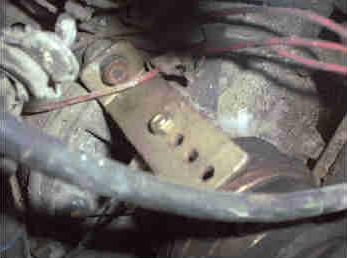

HERE YOU CAN SEE ONE OF THE MAGNETS, JUST TO THE LEFT
ABOVE THE CV BOLT. IF YOU LOOK CLOSE YOU CAN SEE
ONE OF THE WIRES, THE OTEHR IS TOO GREASY. NOW THIS IS ON
AN IRS, NOT A SWING AXEL.

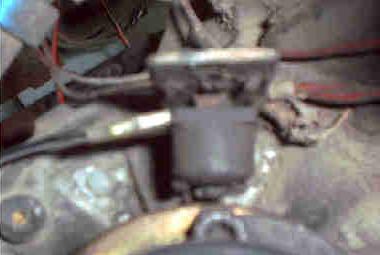

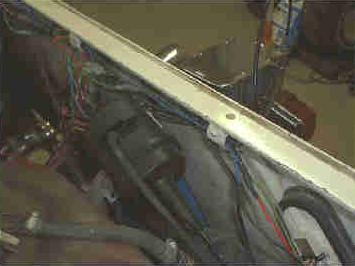

HERE IS THE VACUUM CONTROL, MOUNTED UNDER MY DECK.
I JUST FABRICATED A MOUNT FOR IT. OUT OF SS ANGLE.

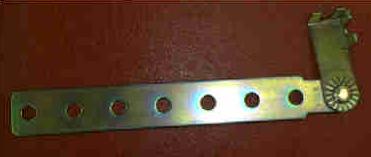

THIS IS WHAT I USED ON THE CARB. FOR THROTTLE PULL.

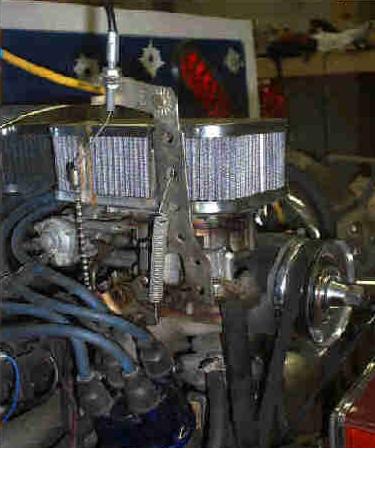

HERE I MOUNTED THE THROTTLE PULL, ON MY PROGRESSIVE CARB.
I MOUNTED IT FROM ABOVE, SINCE MY MOTOR IS EXPOSED
TO THE RAIN. I DIDN'T WANT RAIN IN THE CABLE.

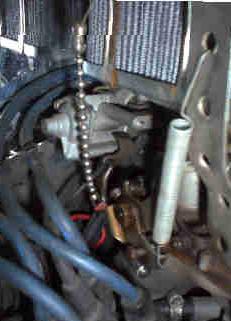

HERE IS FINAL SHOT OF HOOK UP TO CARB. SHOWING HOW I
MOUNTED THE THROTTLE PULL TO THE CARB.
HOPE THESE PICTURES HELP, IF YOU HAVE QUESTIONS, JUST ASK.
THIS IS AN AUTIOVOX MODEL CCS 100 CRUISE CONTROL
THE MANUAL THAT COMES WITH IT TELLS YOU HOW TO SET
THE DIP SWITCHES IN THE CONTROLS. IF YOU HAVE TROUBLE
WITH THIS, I CAN TELL YOU HOW I SET MINE. I SET THEM
ACCORDING TO FLOYD FLUDS RECOMENDATION AND IT
WORKS GREAT.

I MOUNTED THE CONTROL ON THE TANK, JUST A SMALL HOLE
FOR THE WIRES TO PASS THROUGH. USED THE DOUBLE SIDED
TAPE TO HOLD IT IN PLACE.
