        Komponen Pemancar


TUBE
3CX800A7, 4X150A, 4CX250B,
3CX1500A7, 4CX1500A,
3CX 3000A7, 3CX5000A7,



TRANSISTOR
MRF151G, MRF141G, MRF175GV, BLF278, U310,  MC145151P2, MC 145152, 2N3866, 2SC2694, 2SC2630, 2SC2782,

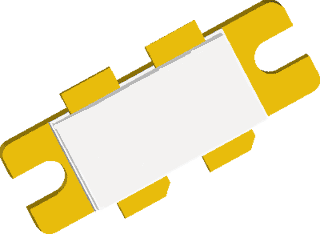

::: RF POWER TRANSISTOR

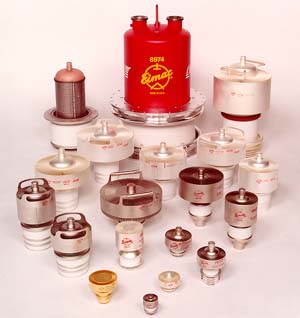

::: TUBE
| EXCITER FM | SOLID STATE RF AMPLIFIER | RF TUBE AMPLIFIER | ANTENNAS | COAXIAL | POWER DIVIDER | KIT PLL | STEREO CODER | RF TUBE | RF TRANSISTOR |
    KOMPONEN PEMANCAR FM
RF PA 750 WATT
Spec :
:: 88 - 108 MHZ
::
Gain 18 dB @ 108 MHZ ( Typical )
::
Input 14 Watt ( Typical )
::
Output 750 Watt
::
+55 Vdc / 28 Amper Drain Current
::
Dual Mosfet I/O dikombinasi
RF PA 350 WATT
Spec :
:: 88 - 108 MHZ
::
Gain 18 dB @ 108 MHZ ( Typical )
::
Input 14 Watt ( Typical )
::
Output 350 Watt
::
+55 Vdc / 13 Amper Drain Current
::
Push pull single Mosfet
SOLID STATE  POWER AMPLIFIER 88 - 108 MHZ
SOLID STATE  POWER AMPLIFIER 470 - 860 MHZ ( TV CH )
LINEAR TV AMPLIFIER  350 WATT
Spec :
:: 470 - 860  MHZ
:
: Gain 18 dB @ 108 MHZ ( Typical )
::
Input 14 Watt ( Typical )
:
: Output 350 Watt
:
: +28 Vdc / 25 Amper arus drain
Kembali kehalaman pertama
Juga mengadakan Kit SSPA ( Solid State Power Amplifier ) untuk frekuensi - frekuensi tertentu
seperti : HF SSPA (1.8 - 30 MHz ), UHF komunikasi dll.



MOSFET, VDMOS & LDMOS RF POWER TECHNOLGY
