Building a GatorBoats
'Big Mama'

 I built a one man Gator Boat last year and was needing a 2 man boat for duck hunting, so I decided to build the Big Mama version. I tried to take pics of all the various stages of the boat. During the building process, I went by the plans and didn`t alter anything. I needed a boat that could take two hunters to a blind in a flooded milo field and it fit the bill exactly. Follow along as I build my Gatorboat.
Step 1
Layed out the plans onto the plywood, and cut out all pieces needed.

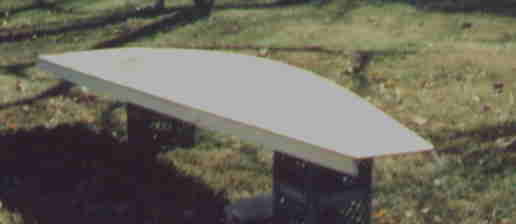

bmc1
Here is a pic of the bottom and chines.
Step 2

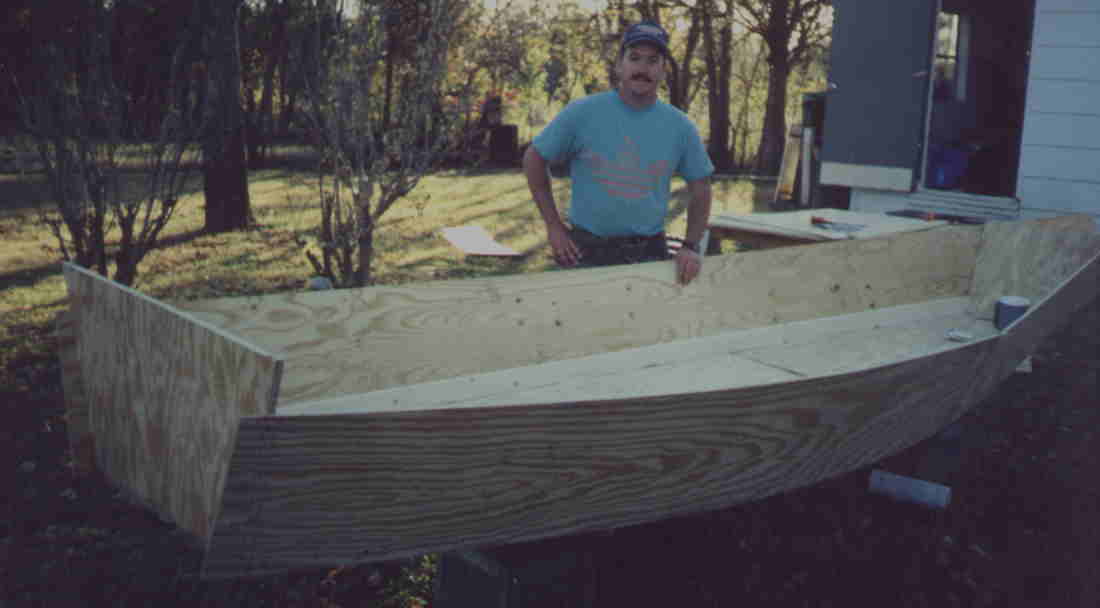

bmc2
Attached sides, transom, and bow(the tricky part). Here it is roughed in.
Step 3

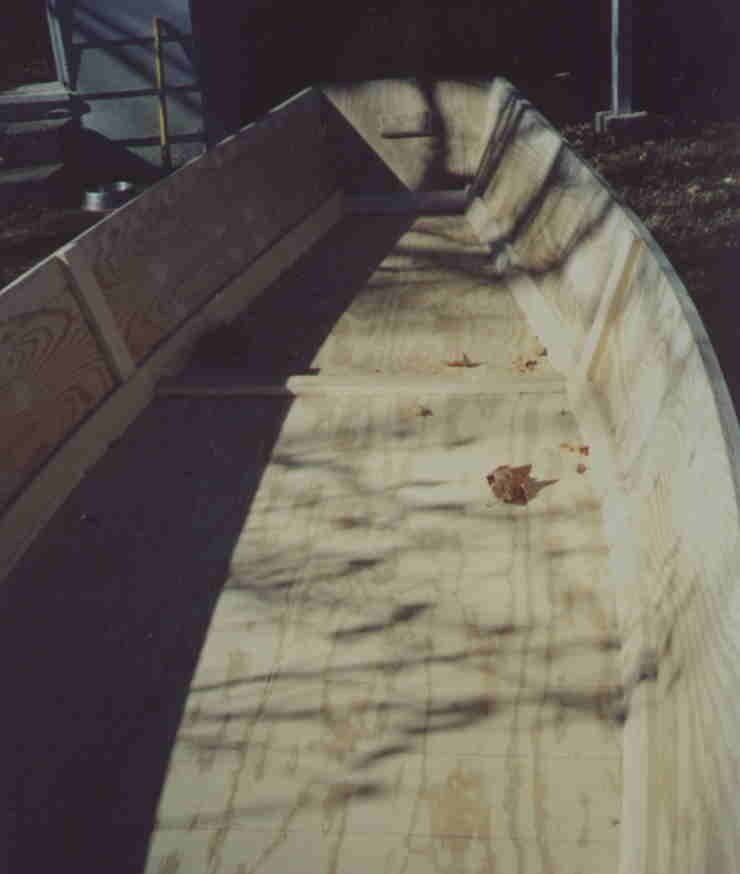

bmc3
After roughing out the boat we spent time cutting everything off flush and getting it sanded down. Notice the screw heads are filled, the brace for the butt joints and floor joint, and the bow eye reinforcement.
Step 4

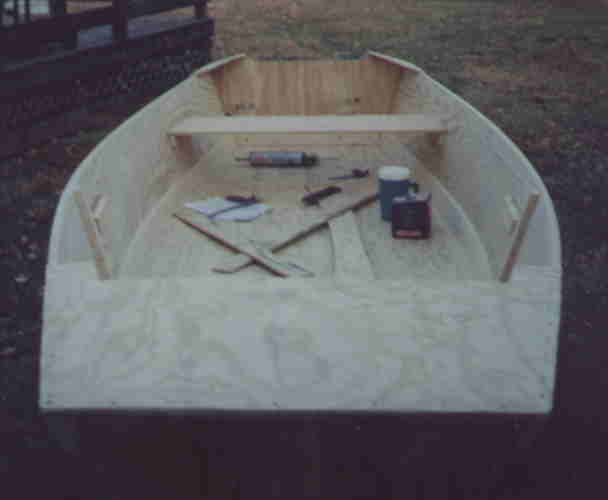

bmc4
Front deck test fit and rear transom braces are on.
Front deck and bulk head are done and rear seat is installed.
Step 5

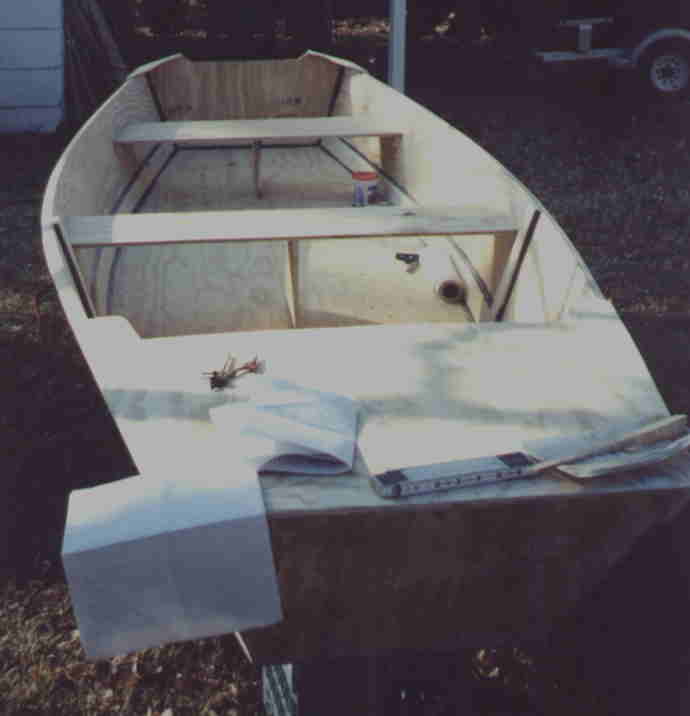

bmc5
Front seat and both seat supports are finished.

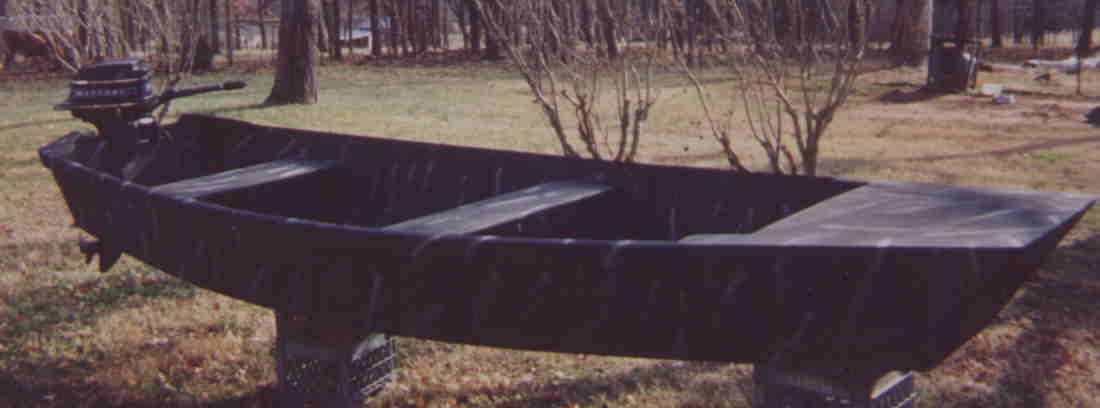

Gbm1
Ready to build the blind for hunting.
