Chocolate & Cocoa Machinery

920101- Chocotech S100 cooling tonnel 13.5m lenth, 1000mm width, new
920103- Buhler SF1300 5-roll refiner, 1300mm
920104- Lehman 5-roll refiner, 1000mm
920105- Nagema S81 enrobing machine, 800mm
920111- Nagema EE6 melanger, d-1600mm, very good condition
920112- Nagema EE6 melanger, d-1600mm, very good condition
920113- Nagema EE6 melanger, d-1600mm, very good condition
920115- Nagema EL11 sachet fold wrapping machine for chocolate articles
920125- Nagema EB1 Chocolate tablet wrapper, 2 papers, aluminium and outer paper 100gr, 120x35mm
920126- Nagema EB1 Chocolate tablet wrapper, 2 papers, aluminium and outer paper 157x77mm
920127- Nagema EB1 Chocolate tablet wrapper, 2 papers, aluminium and outer paper 115x30mm, 3 pcs
920128- Nagema EB1 Chocolate tablet wrapper, 2 papers, aluminium and outer paper 80x55mm, 3 pcs
920129- Nagema LB3 Bunch foiling machine for flat bottomed chocolates, hand feed
920135- Nagema TP16 tempering machine, 1600 kg/hour, new
920136- SH. N. K. -18.5 pomps for chocolate, 3000 l/hour, new, water heated, Russia
920137- Nagema SP1 pomp for chocolate, 1000 l/hour, water heated
920138- Nagema SP3 pomp for chocolate, 3000 l/hour, water heated
920139- Nagema SP6 pomp for chocolate, 6000 l/hour, water heated, 2pcs, new
920146- B4-sh.k.v. cooper cooker and blender, 75 l capacity, new

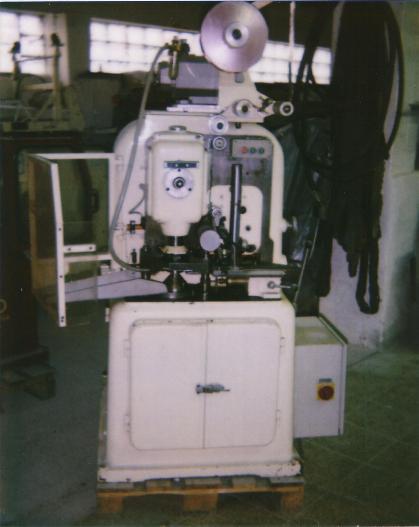

41130) Chocolate Coin stamp & packing Machine:

Made by G.D. Type 2001, adjusted for chocolate
Coin with a diameter of 32 mm.
Year made1978,
in good running condition.

-----------------------------------

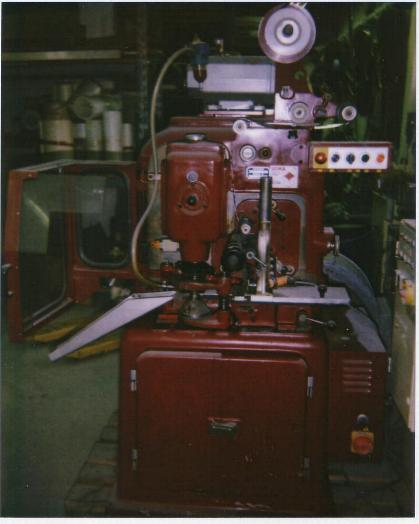

41140) Chocolate Coin stamp & packing Machine:
Made by G.D. Type 2001, adjusted for chocolate
Coin with a diameter of 32 mm.
Year made1985,
in good running condition.

------------------------------------------

41150)Cacao Powder Production Single Machinery

44189. Enrobing plant, made by KREUTER.

44190. Tempering equipment, made by JUFABA, type GT 4.

42230- ONE x Wolf Chocolate Temperer, 300 litre content, suitable for 200 litre per hour,
including refrigerated cooling.

41163) - Enrobing machine made by solich, working width 800 mm

with built in tempering and blower

41177) - Enrobing machine mdae by kreuter; Stainles steel year made 1987

41179) - Cooling tunnel made by BLUM, working width 800 mm.

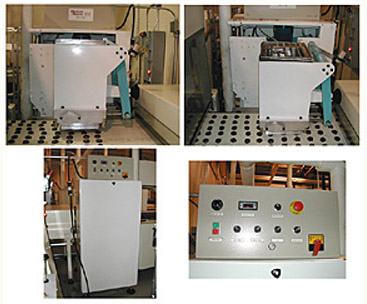

41190) Westbrook & Wood ML 300 Chip Depositor

1 &endash; Westbrook & Wood Ltd. ML 300 Chocolate Chip Depositor built in 2001
with 300 mm wide head and cantilevered design to mount over a stop/start indexing
cooling tunnel belt. This machine comes with nozzle plates for 4000 CT, 1000 CT
and 150 CT chip/drops. This depositor operates at a maximum speed of 20 strokes per
minute and has a head that moves up and down to create the shape of the chip. The frame
is mounted on a heavy-duty base with locking wheels and the hopper has a closed water
system with heat exchanger to circulate hot water to maintain temperature.
The motor specifications are 3 Phase, 60 Cycle, 480 Volts.

41200) complete chocolate moulding line for production of :
pralines-bars-eggs and other filled or full products.
PHOTOS (YEAR MADE 1992)
specifications :
made by : FQM (Belgium)
mould sizes : 275 x 135 mm
capacity : 200 kg/hour (approx. 12 moulds/min.)
Area sizes : 12500 mm x 4500 mm
description install.fqm 720 :
*electricale controlpanel
*laying on table
*lick-polisch roll
*pre-heating
*filling station (tempering inside)
*in-shake (vibrating)
*turn station
*out-shake (vibrating)
*pre-cooling
*elevator coolchamber (compressors)
*filling unit Hacos JD 12 (different nozzles)

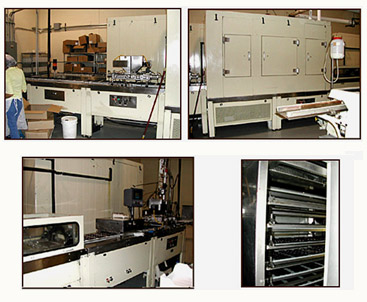

41210) CARLE & MONTANARI type CAVEMIL CREAM:
MOULDING PLANT for moulds of 275x175mm.

1 - Carle & Montanari 275 Moulding Plant built in 1990 and is capable of producing solid,
one-shot, solid with inclusions, shell moulded and book moulded articles.

The line accepts 275mm x 175mm polycarbonate rigid moulds and features (3) cooling sections,
(3) twin hopper depositors, shaking/inverting section, book closing station,
crossover units and refrigeration package.
The plant will operate at speeds up to (12) moulds per minute and (10) complete sets of moulds are
available in addition to the line. Price can be quoted on a per mould set basis.
This moulding plant requires approximately 325 moulds to fill the system and each mould
set comes with approximately 350 moulds.

Sold On 22.10.2002
41220) COMPLETE PRODUCTION LINE FOR EXTRUDED
PRODUCTS such as "snowballs", "marshmallows", etc.
- with continuous foamer, extruder, enrober, sprinkler. Comprising of:
- One MONDOMIX continuous air pressure WHISH.
- One OKA 680 mm extruder, to extrude on the conveyor belt or directon on a biscuit,
with a system of 12 heads
- De-stacker placing 12 biscuits in the width of the conveyor belt.
- One Kreuter enrober, working width 620 mm. With infeed table and 15 meter long cooling tunnel.
- One dry fruit coconut grain depositor.

41230) Production Line for chocolate mass comprising of:
PHOTOS, this line will be sold complete
- 1 x Sugar silo 1000 kg with transport screw
- 1 x Sugar Mill made by BAUERMEISTER, ZU-11 with mixer tank, filter and transport screw,
capacity 800 kg/h.
- 1 x Beets kneader MK 2/1000 (1000 kg///h) with weigher, with 4 dosing screw, 1 transport screw.
- 1 x Steel band made by LEHMANN 16 meteeer long with gates for feeding of refiners
- 1 x Steel band conveyor made by LEHMANNNN 16 meter long with gates for feeding of conches.
- 1 x 5-roll refiner made by BUEHLER SFGGG 1300.
- 1 x 5-roll refiner made by BAUERMEISTEEER FW 1000
- 1 x 5-roll refiner made by CARLE & MONNNTANARI VSN 1000
- 1 x Conch made by PETZHOLD PVW 2000, 222000 kg.
- 1 x Conch made by PETZHOLD KCUS 2000,,, 2000 kg
- 1 x Conch made by PETZHOLD KCUS 1200, 1200 kg
- 3 x Chocolate tanks each 3000 kg
