Flat Wafer Used Machinery



920106- Rapido E30 wafer line, repared, consisting of E30, WAE3, AK30, SB9/1
920107- Rapido E30 wafer oven, repared
920108- Rapido new and used original gas oven plates
920109- Nagema SB9/1 cutting machine, as new
920110- Nagema WAE3 arch cooler for wafer, as new


102) Wafer Cutting Machine:
Fabricated by HAAS, stainless steel,
Type DWL 2, Power supply 1.2 KW, 50 Hz
Jeahr made: 1995


HaasSchn2.jpg - 27604 Bytes

HaasSchn3.jpg - 48166 Bytes

------------------------

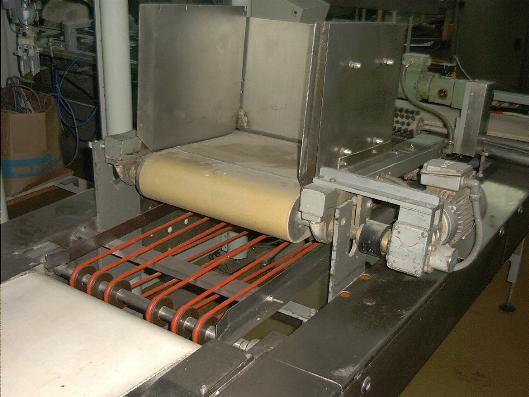

103) Wafer Creaming Machine (spreading)
Fabricated by HAAS
Stainless steel, Type W 25 D, Year made 1990.


HaasStreiche1.jpg - 35625 Bytes

HaasStreiche2.jpg - 35076 Bytes


--------------------------
176) Wafer Sheet Cutting Device
Fabricated by NAGEMA

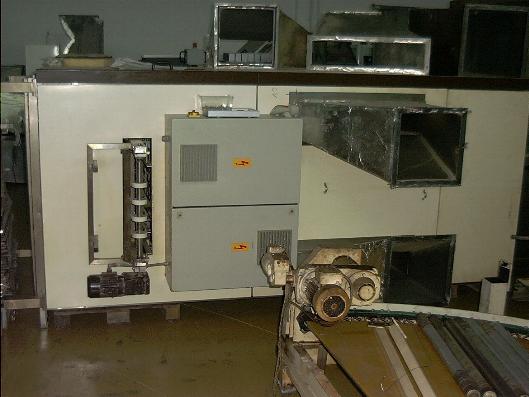

178) Wafer Block Cooling Machine
Fabricated by HASS, with cooling aggregate.


Blockkuehler1.jpg - 30205 Bytes

Blockkuehler2.jpg - 32636 Bytes

-----------------------------
170) A- HAAS Rolled Wafer Line:
Consisting of:
One HASS TRO 60 G - R rolled wafer oven
Gas heated,
Power supply 4 KW,
with 60 baking plates,
with band to roll the wafer type TRO - ER B,
with saw station to cut rolled wafer in the suit length,
with cooling and oiling devices,
with hot turning device,
year made 1990




175) B- Rolled Wafer Machine to Cut, insert and dipping the rolled
wafer in chocolate, to dip the rolled wafer up to the middle
of wafer in chocolate, at the end one side are coated with chocolate
and other side remains as it was.
Made by Remotec / Blum & Co.
Year made 1990


---------------------------

42200) ICE ROLLED WAFER OVEN
Manufacturer HAAS
Model EWB

HAAS MODEL EWB ROLLED WAFER OVEN, APPROXIMATELY 8-1/2" BAND WITH CENTER DIVIDER,
2-4" CURLING UNITS, CUTTER/SIZER, BATTER PUMP AND DRIVES FOR CURLING ROLLERS, WITH GAS
FIRED DRUM APPROXIMATELY 42" DIAMETER X 8-1/4" WIDE WITH BLOWER AND CONTROLS, 1 HP,
VARI-DRIVE, 3 PHASE.

HOLLOW TUBE TYPE WAFER PRODUCED: 3/4" DIAMETER X 4" LONG

42210) WITH HAAS MODEL TM-40 HI SHEAR WAFER MIXER, STAINLESS STEEL TANK AND IMPELLER, 15-1/2"
DIAMETER X 21-1/2" DEEP (APPROXIMATELY 15 GALLONS) 4.5 HP (3.3 KW DRIVE MOTOR 3 PHASE)
THIS SYSTEM MIXED BATTER, PUMPED IT INTO THE DIVIDED BAND, BAKED WHILE
CONTINUING AROUND THE DRUM AND SCRAPED, ROLLED AND CUT THE HOLLOW-CURLED WAFER.



COMPLETE FLAT WAFER PRODUCTION LINE

One x horizontal Mixer
- Fabricated by Hebestreit.
- Volume 200 liter, one speed 100 rpm
- Horizontal mixing arm with 5 blades
- Special machine for wafer dough
- Reconditioned + new painted

------------------------------

2935.jpg - 59081 Bytes

42280 One x Smelting + Tempering Mixer
- fabricated by Thrner, type Fondant,
- include mixing arm, approximately 2500 liter
- Bowl double jacked for heating by hott water
- Bowl and mixer stainless steel
In good running condition.

--------------------------

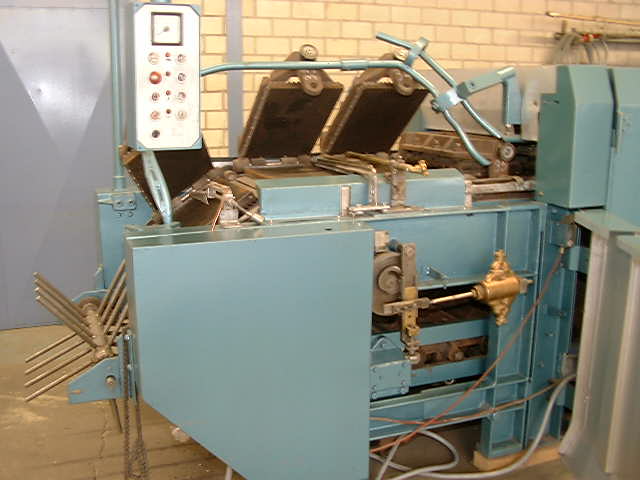

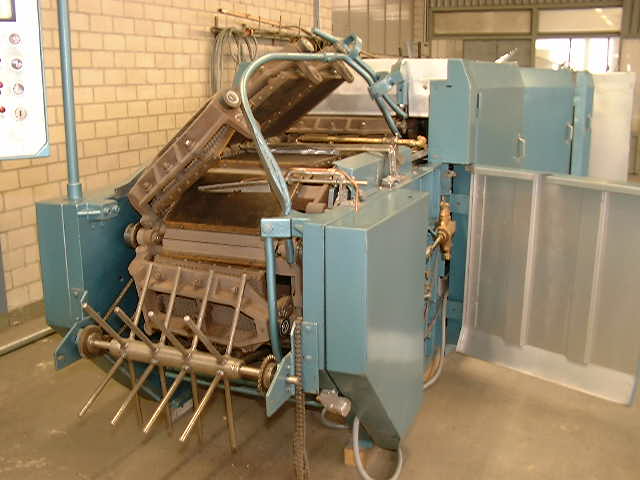

42290 1 X Flat Wafer Baking oven:
-Fabricated by: Hebenstreit
-Number of baking plate: 42
-Baking plate dimension : 470 X 290 mm..

Engraving:
2,6 X 2,6 X 0,5 mm.
9 X 9 X 3,5 mm.

Specification:
- Capacity for 2 minute backing time: 221 wafers sheet.
- Baking capacity in one hour: 1260 waffer sheets.
- Gas consumption: 28 m/h
- By a gas calorie of 8000 Kcal/m - Power consumption: 5 KW/h
- Air consumption: 20 m/h
- Fan: 42 Nm/ min

Machine Dimension:
- Length: 9350 mm
- Width: 1300 mm
- Height: 1550 mm

Condition of the machine: Overhauled and painted.

1.jpg - 45010 Bytes

2.jpg - 45423 Bytes

5.jpg - 45071 Bytes


42300 1 X Wafer Take-off Device EAT:
- Fabricated by Hebenstreit
- To take-off wafer sheet out of oven and for rewinding and cooling the wafer sheets.
- Overhauled and painted
- Length: 2650 mm

7.jpg - 155364 Bytes

The length of oven and take-off device together: 10350 mm
Total weight of oven and take-off device: net 13000 kg

42310 One wafer Turning Device
- Fabricated by RAPIDO(Hebenstreit) - Brand new



42320 One Wafer Creaming Machine.............-70181-:
maker: RAPIDO type AK 30/1
output: up to max. 30 wafer blocks/min.
wafer block with max. 5 wafer layers,
machine consisting of:
table with transport belt 320 mm wide x 1400 mm long and
fitted with stop-work, limit switch and 2 magnets which release or
pull off the table at the creaming head,
creaming station with stainless steel feeding funnel 540 x 280 x 280 mm deep,
feed height 1400 mm,
underneath fluted roll as contact creaming head,
cream thickness 1-2,5 mm,
creaming width 295 mm,
followed by stacking device for up to max. 5 layers, photocell control,
forwarding belt 1500 mm long,
at the end pressing roll 280 mm x 360 mm working width for height calibration,
wafer inlet 900 mm high,
wafer block delivery 805 mm high,
power required: 380 V, 3 ph, 3,5 Kva, 50 Hz;
space required: 3350 x 630 x 1360 mm high
in as is condition, unused

-----------------------------

42330 One Wafer Book Turning Device
Fabricated by RAPIDO (Hebenstreit)
Condition: Bran new

---------------------------

42340 One Wafer Cooling Machine..........-20912-

CoolerWafer.JPG - 68796,0 K

Condition: Brand new
maker: ARCAN type ATWCT 140
capacity: 480 pcs/h for 12 minutes cooling time and
for wafer books made up of 5 wafer sheets and 4 cream layers,
weight: 1 kg/book,
cream temperature from abt. 40 C to abt. 25 C,
machine built as a refrigerator,
insulated outer walls with stainless steel clad,
for standard wafer sheets of 290 x 468 mm,
inlet round belt 875 mm long,
wafer inlet controlled by photocell,
U-shaped compartments made of stainless steel round material, totally 141 pcs,
from them 90 pcs capable of being used for cooling, remaining ones as return
without wafer sheets,
refrigerating set installed in the cabinet, refrigerating capacity: 17.500 kcal/h,
cooling compressor 5,5 kW, currently water-cooled, however can be supplied
for air cooling as per customer's requirements,
with 2 heat exchangers and totally 4 air circulation fans,
delivery round belt 875 mm long,
total power connected: 9 kW or 10 kW if air-cooled compressor concerned;
space required: 5030 x 1500 x 2680 mm high
weight: 1800 kg

CoolerVorne.jpg - 7826,0 K

-----------------------------

42350-1 wafer cutting machine -10179-
maker: NAGEMA type SB 9/1
output: 9 double cuts/min.,
height of cut: 5 up to 80 mm,
angular -shaped steel frame construction,
electro-mechanical wafer pushing devices towards cross + longitudinal cutting,
incl. wire cutting frames,
underneath built-in delivery belt 275 mm wide x 1000 mm long for wafer residues,
all working processes like cross + longitudinal cutting + delivery belt having own drives,
3 threephase a. c. motors of 0,18 kW each,
incl. switchboard + control panel,
power connected: 380 V, 3 ph, 50 Hz, 3,7 A,
wafer feed height: 1015 mm,
delivery height: 920 mm above floor,
crosscut size: 3 x 87,5, longitudinal size: 13 x 35 mm;
space required: 1900 x 1400 x 1150 mm long
Condition: Overhauled

---------------------------------

42360 One horizontal bag filling and sealing machine
- Type MIGNONETTE fabricated by ROVEMA
- Used machine, Overhauled
and ready for operation.
Comprising:
- Electro motor 0.5 KW, 380 V, 50 HZ
- Infinitely speeds variable.
- Photocell for printed-paper
- Heat stamp for printing of product nuumber etc.
- One set die for one bag size.
- Length heat-sealing device
- Cross heat-sealing device with knife
- Separate temperature control for Lenggth and cross heat- sealing.
- Product chain for manually and automaatically feeding
- Transport band
- Control cabinet.


42370-List T000
1 X Wafer Baking Oven with Take-Off Device Fabricated by Hebenstreit.
With 42 baking plate
Baking plate dimension 470 x 290 mm.

Engraving:
2,6 X 2,6 X 0,5 mm.
9 X 9 X 3,5 mm.

Capacity/minute for 2 minute backing time: 21 sheets.
Capacity/h 1260 sheets
Gas consumption: 28 m/h, natural gas, 8000 kcal/m
Electric Consumption: 5 KW/h
Air consumption: 20 m/h,
Exhaust fan capacity 42 :Nm/min

Dimension:
Length including Take-off Device: 10350 mm
With: 1300 mm.
Height: 1550 mm.
Net Weight: 13000 kg.

Overhauled and painted ready for shipment

Ice Cone & Rolled Wafer Machinery:

4210-TWO x Steinhoff EWA Super 71 Pressed Wafer Cone Machine with 29 tongs with 12 pressed wafers per row, length 110mm x 47mm diameter, manufactured 1977

4220- TWO x Steinhoff Wafer Cone Oven, EWA-65-S for tulip type cones, manufactured 1967 & 1970.

4230- ONE x Steinhoff Wafer Cone Machine, type EWA-65-S, for wafer cones 110mm long x 47mm diameter,
manufactured 1968.

4240- FOUR x Steinhoff XT-45 Wafer Cone Machine, complete including Paternoster and Transport
Table, manufactured 1980, 1981 & 1982, for wafer length 135mm x 51mm diameter, capacity
approximately 3,500 per hour.

4250- ONE x Steinhoff XT-45, complete for the production of wafer pots, height 45mm x diameter 110mm.

4260- ONE x Steinhoff DZA Oven, manufactured 1985, capacity 7,200 pieces per hour, for sugar cones
135mm long x 51mm diameter.

4270- ONE x Haas TRO Oven, manufactured 1970 for industrial cone, length 110mm x 45mm diameter,
capacity 4,000 pieces per hour.

4280- ONE x Steinhoff MZA Oven for sweet cones.

4290- TWO x Steinhoff MZA-61-H Rolled Cone Machine, manufactured 1975 & 1978, capacity 25 kilos
per hour, 24 baking plates.

42100- ONE x Fatting Station for Rolled Cones complete with cooling tunnel and weigher.

42110- ONE x Steinhoff high speed Rolled Cone Machine XTR-65, manufactured 1980, with
65 baking plates, complete and ready to use, hourly capacity 75 kilos.

42120- ONE x Haas EWV 2 row Wafer Tube Machine, automatic.

42130- ONE x Ratti Tube Machine, Automat.

42140- ONE x Rapido G-30 flat wafer Automat for thick wafer sheets, fine reeded pattern, 460 x 290mm.

42150- ONE x Hebenstreit Rapido flat wafer Saw, manufactured 1998, for sheet size 460 x 290mm.

42160 ONE x Wafer Saw with rotary knife for sheet size 460 x 290mm, with packing help, manufactured 2000.

42170- ONE x Hebenstreit Rapido flat wafer Transport Belt, 4 metres long, manufactured 1998.

42180- ONE x HV Combo Mixing Set Up, with 18 different product components, on a transport belt,
emptying into containers, automatically transported, manufactured 1996.

42190- ONE x Karner Dry Mixer, 1,000 kilos capacity.

42200- ONE x Diosna Mixer 300 litre capacity, for wafer dough.

42210- ONE -x 200 litre capacity Dough Mixer.

42220- ONE x Hobart 100 litre capacity Dough Mixer, complete with mixing arms.

42230- ONE x Wolf Chocolate Temperer, 300 litre content, suitable for 200 litre per hour, including
refrigerated cooling.

42240- ONE x Stephan BB100 mixer / cutter, stainless steel bowl

42250-- 1 X CUP CONE MACHINE THREE PHASE,40 MOLDS WITH WIRING AND ENERGY
REGULATORS. MACHINE AS NEW CONDITION. BRAND IS ORION ITALIAN.
THIS MACHINE HAS LESS THAN 200HOURS OF OPERATION. IS IN A PARACTICALLY
NEW CONDITION.

42260--1 X ICE CREAM CONE MACHINE 77 MOLDS GABRIELLI BRAND MADE IN ITALY ALSO IN
EXCELLENT CONDITION. WITH ELECTRICAL WIRING AND CONTACTORS IN PERFECT
CONDITION.THREE PHASE.


A-- 1 X CUP CONE MACHINE THREE PHASE,40 MOLDS WITH WIRING AND ENERGY
REGULATORS. MACHINE AS NEW CONDITION. BRAND IS ORION ITALIAN.
THIS MACHINE HAS LESS THAN 200HOURS OF OPERATION. IS IN A PARACTICALLY
NEW CONDITION.

B--1 X ICE CREAM CONE MACHINE 77 MOLDS GABRIELLI BRAND MADE IN ITALY ALSO IN EXCELLENT CONDITION. WITH ELECTRICAL WIRING AND CONTACTORS IN PERFECT CONDITION.THREE PHASE.


-------------------------------------------------------

-1 X ORION LARGE 50 MOLD CONE MACHINE WITH ELECTRICALCONTACTORS AND WIRING IN GOOD CONDITION.

----------------------------------------------------

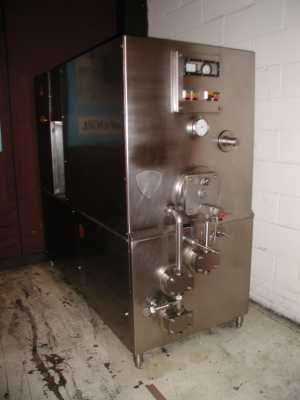

Reconditioned APV Crepaco model KM140 single barrel continuous ice cream freezer, fitted with open series
15 dasher.Capacity 300 to 1500 litres of ice cream per hour at 100% overrun. Supplied with 20hp dasher motor
and three pump mix-air system (pneumatically actuated CIP bypass covers available as an option).
Suitable for ammonia refrigerant. Power 380-415 Volts, 3 phase, 50 Hertz. Excludes remote starters.

IceCreamFreezer.jpg - 9738,0 K





yahoo.gif - 1195 Bytes
Suggest a Site for Free


Submit Free
http://www.ineedhits.com/add-it/free/ !!!!
Free submission to 110 search engines!
(Google, AllTheWeb, Voila,
Goo, Entireweb, ExactSeek,
WhatUseek, Splat, Search UK,
Pocket Flier)

converter.jpg - 3593 BytesUniversal Currency Converterhand1.gif - 960 Bytes


Inquiry.gif - 888 Bytes
arrowup.gif - 294 Bytes
home.jpg - 1947 Bytes
