Consisting of the following sections and machinery

1° X CLEANING DEPARTMENT.
N. 1 Golfetto vibrating separator with aspirator.
N. 1 Sangati intensive brushing machine.
N. 1 Air separation aspirator.

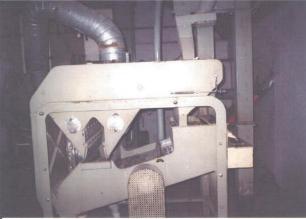

N. 1 Sangati T10 dry stoner. Double separation frame.
N. 1 Sangati intensive damper. With water feeder equipment.
N. 1 Golfetto combined damper column.
N. 1 Electro blower.
N. 1 Sangati entoleter wheat sterilizer.
N. 1 Auto cleaning air jet filters.
N. 2 Bucket elevators.
N. 1 Electric control board.

2° CLEANING DEPARTMENT.
N. 1 Golfetto vertical brushing machine.
With circular air separation aspirator.
N. 1 Golfetto nebulizer with compressor.
N. 1 Fall aspirator.
N. 3 Wheat feeders.
N. 1 Bucket elevator.

MILLING DEPARTMENT.

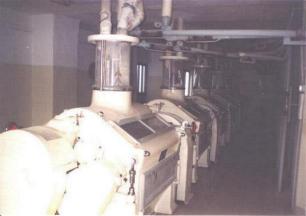

N. 6 Sangati S/47 double roller mills mm 1000 x 250 diameter.
With automatic servo governors for roll connection and disengaging.
N. 1 Roller mills shaft.With driving engine.
N. 6 Pneumatic detachers.

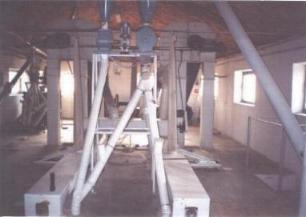

N. 2 Golfetto rot sieve plansfter.
N. 1 of them with 6 sections.
N. 1 of them with 8 sections.
Central driving.
Incorporated driving engine.
N. 1 Sangati vertical turbo sieve.
N. 2 Double bran finishers.
N. 1 Simple bran finisher.
N. 1 Complete Golfetto pneumatic lifting plant 15 lifts.
With electro blower, little cyclones, rotary air locks, piping lines.
N. 1 Auto cleaning air jet filters.

PACKAGING AND FLOUR MIXERS DEPARTMENT.
N. 2 x flour mixers.
N. 1 x flour blender.
N. 2 Sack packing and decanting elevators.
N. 3 Worms.
N. 1 Pneumatic plant.With 2 conveying systems.
N. 3 Weigher groups with valve packers for flours, wheat offal’s.
N. 1 Double redressing machine (security sifter).
- Electric control boards.New, still to assemble.

Used 120 tons / 24h wheat mill

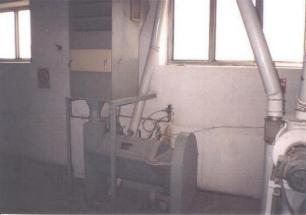

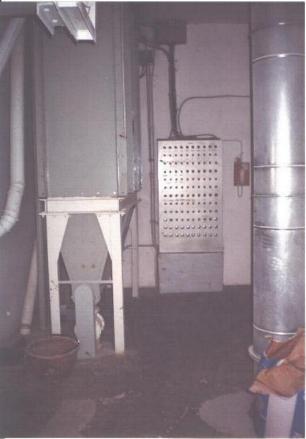

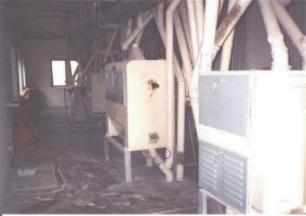

Photos & Description
year made from 1986 up to 1996
made by Sangati, Golfetto and Berga
Reconditioned before 2 years
Plant is producing and in good running condition
Shut down the plant after down payment

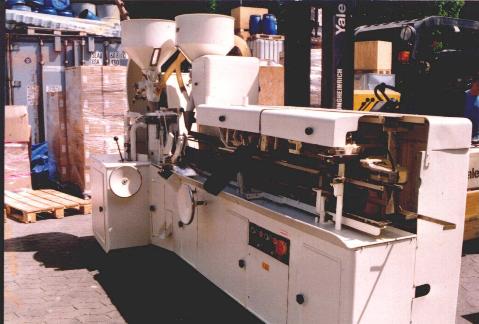

HAMAC-HÖLLER type AKBW2 Flour packing machine in block bottom bags
Machine is in good running condition, this automatic block bottom and side gusset fill and close machine,
made by HAMA-HÖLLER type AKBW2, takes paper, aluminum or cellophane bags from magazine
do open the bags, filed and closed automatically, closing the bags provided by glue or sealing.
Bag sizes and filling amount could be adjusted easy. Adjusted for 1000 gr.
Filling material: Flour, Sugar, rice, semolina, washing powder.
Bags sorts: Block bottom and side gusset bags.
Bag size:
Min. 50 x 30 x 150
Max. 93 x 65 x 280 mm
Filling weight:
min 125 cc.
Max 1.500 cc.
Capacity: 25 – 45 package / min.
Power supply: 1.75 KW.
Weight of machine: 1.700 kg.
Dimension:
Length: 3.600 mm
Width: 1.250 mm
Height: 2.050 mm

SOLD ON April 03, 2003
A) CORN TORTILLA LINE
"CORN LINE: PRODUCTION RATE OF 1000 DOZEN PER HOUR = ~ 500 LBS PER HR.
comprising of:
- TWO (2) HORIZONTAL CORN COOKING TANKS. 1000 POUNDS DRY CORN CAPACITY. H²O + LIME (8HRS).
GAS BURNERS, - 8’X 40” DIA., CASTORS, THREADED INFEED & DISCHARGE.
- (1)USED EFM CORN WASHER. 220 VOLTS, 3 PHASE, 4 AMPS.
- OVERHEAD SPRAY ELEVATOR.
- (1) USED EFM “FORCE FEED “ TYPE 50 HORSE POWER GRINDER WITH FEEDER BOX. GRINDER: 230 VOLTS, 3 PHASE,
80 AMPS. FEEDER: 220 VOLTS, 3 PHASE, 3 AMPS. STAINLESS STEEL AND STONES.
- (1) USED CASA HERRERA TWIN AUGER MASA FEEDER. 230 VOLTS, 3 PHASE, - 6.2 AMPS.
- (1) SHEETER,
- (1) PRESS & CUTTER (3 SIZES - EXTRA ROLLERS).
- (1) LAWRENCE EQUIPMENT DOUBLE ROW CORN TORTILLA OVEN WITH 8½ INCH DIAMETER ROLLERS.
- (1) SHEETER HEAD, (FOOD SERVICE TYPE). 220 VOLTS, 3 PHASE, 30 AMPS.
- 1) “SUPERIOR” ALL STAINLESS STEEL 7 TIER, 32 INCH WIDE BELTING, 18 FOOT COOLING BED,
COOLING CONVEYOR. 220 VOLTS, 3 PHASE, 7.8 AMPS. (1) SEPARATE DRIVE OVEN DISCHARGE CONVEYOR. 220 VOLTS,
3 PHASE, 3 AMPS.
- 1) USED CASA HERRERA 4-ROW CORN TORTILLA COUNTER/STACKER. 220 VOLTS, 3 PHASE, 10 AMPS.

SOLD ON April 03, 2003
B) FLOUR TORTILLA LINE
"FLOUR LINE: PRODUCTION RATE OF 450 DOZEN PER HOUR = ~ 700 LBS PER HR.
Comprising of:
- (1) One USED/RECONDITIONED 400 POUNDS CAPACITY CHAMPION MIXER.
- ONE (1) LAWRENCE EQUIPMENT DOUGH ELEVATOR AND AUTOMATIC DOUGH LOADER.
- ONE (1) USED WINKLER 6-POCKET DOUGH DIVIDER/ROUNDER. THIS MACHINE MAKES A VERY ROUND, TIGHT DOUGH BALL
AND HAS BEEN SELECTED FOR USE BY SOME OF THE LARGEST TORTILLA PRODUCERS.
- ONE (1) USED 6-POCKET “LAWRENCE EQUIPMENT” PROOFER. PAINTED FRAME, NYLON MESH CUPS. THIS PROOFER
WAS INTERFACED WITH THE ABOVE QUOTED BALL MACHINE TO FEED AN AUTOMATED TORTILLA LINE.
- ONE (1) LAWRENCE EQUIPMENT 12 BALL DROP, 6 BALL DROP, 4 BALL DROP ASSEMBLY WITH PRE-PRESS STAMPER FOR AUTO LOADING A FLOUR TORTILLA PRESS.
- ONE (1) LAWRENCE EQUIPMENT FLOUR TORTILLA PRESS. PRODUCTION READY CONDITION. 32 X 32 PLATEN SIZE

SOLD ON April 03, 2003
C) Samll scale tortilla chips production 200lb/h
Comprising of:
- Cook tank,
- evacuation pump,
- corn washer,
- corn grinder,
- adjustable auger feeder,
- sheeter,
- die cutter w/ change parts for tortillas,
- Casa Herrera or equiv corn tortilla oven,
- conveyorized fryer from snack food industry,
- cooling conveyor w/ blower,
- L bar sealer,
- case pack off roller conveyor
