Representación gráfica de superficies 3D

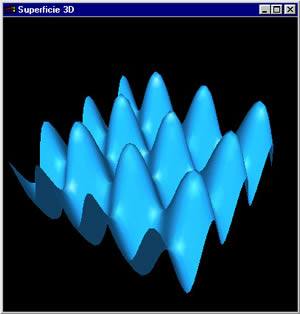

Una superficie 3D, es la representación gráfica de una función matematica de dos variables x, y, la función f(x,y) tiene que ser continua, ejemplo:
f(x,y) = sin(PI*x) + sin(PI*y)
donde PI=3.14159..., los valores para x,y estan en el intervalo [-Pi, Pi].




Código Fuente

En el código fuente utilizo las rutinas de trackball para rotar el grafico utilizando el mouse.

Codigo Fuente, Ejecutable : mesh.zip


 /*
 Graficacion de una funcion 3D, manteniendo presionado el boton
 central del mouse y arrastrando  se puede rotar el grafico en
 cualquier direccion.
 presionando "w" se obtiene una vista en modo wireframe (solo lineas)
 presionando "f" se visualiza en el modo smooth.

 Author  : Ramiro Alcocer
 Website : www.oocities.com/valcoey/index.html
 Email   : valcoey@hotmail.com
 */
 #include <GL/glut.h>
 #include <stdlib.h>
 #include <math.h>
 #include "trackball.h"

 #define n_segs          40
 #define max_puntos      n_segs*n_segs
 #define max_poligonos   (n_segs-1)*(n_segs-1)
 #define PI				 3.141592654

 struct {
        GLfloat fVert1[3];
        GLfloat fVert2[3];
        GLfloat fVert3[3];
        GLfloat fVert4[3];
        GLfloat fNormal[3];
       } Tri[max_poligonos];

 GLfloat vertice[max_puntos][3];
 GLfloat vnorms[max_puntos][3];
 int	 poligonos[max_poligonos][4];
 int	 numpoligonos;
 int	 numvertices;
 GLuint  mesh_list = 0;

 //defino el color y la posicion de la fuente de luz
 GLfloat light_ambient[] = { 0.75f, 0.75f, 0.75f, 1.0f };
 GLfloat light_diffuse[] = { 1.0f, 1.0f, 1.0f, 1.0f };
 GLfloat light_position[] = { 0.0f, 0.0f, 1.0f, 0.0f };
 GLfloat mat_ambient[] = {0.05f, 0.25f, 0.4f, 1.0f};
 GLfloat mat_diffuse[] = {0.1f, 0.6f, 0.9f, 1.0f};
 GLfloat mat_specular[] = {1.0f, 1.0f, 1.0f, 1.0f};

 // trackball
 GLuint    trackball_lasttime;
 GLfloat   trackball_lastposition[3];
 GLfloat   trackball_angle = 0;
 GLfloat   trackball_axis[3];
 GLboolean trackball_animate = GL_FALSE;
 GLfloat   trackball_transform[4][4];

 //Calcula el modulo de un vector
 GLfloat Modulo(GLfloat x, GLfloat y, GLfloat z)
 {
 GLfloat len;

 len = x*x + y*y + z*z;
 return ( sqrt(len));
 }

 //Normaliza el vector a mudulo 1
 GLvoid Normaliza(GLfloat *x, GLfloat *y, GLfloat *z)
 {
 GLfloat len;

 len = Modulo(*x, *y, *z);
 len = 1.0/len;
 (*x) *= len;
 (*y) *= len;
 (*z) *= len;
 }

 //Calcula el vector Normal
 GLvoid CalculateVectorNormal(GLfloat fVert1[], GLfloat fVert2[],
                             GLfloat fVert3[], GLfloat *fNormalX,
                             GLfloat *fNormalY, GLfloat *fNormalZ)
 {
 GLfloat Qx, Qy, Qz, Px, Py, Pz;
 Qx = fVert2[0]-fVert1[0];
 Qy = fVert2[1]-fVert1[1];
 Qz = fVert2[2]-fVert1[2];
 Px = fVert3[0]-fVert1[0];
 Py = fVert3[1]-fVert1[1];
 Pz = fVert3[2]-fVert1[2];
 *fNormalX = Py*Qz - Pz*Qy;
 *fNormalY = Pz*Qx - Px*Qz;
 *fNormalZ = Px*Qy - Py*Qx;
 }

 //funcion a graficar
 float funcion3D(float x, float y)
 {
 return (sin(PI*x)+sin(PI*y));
 }

 void EvaluarFuncion(void)
 {
 GLfloat xdelta, ydelta;
 GLfloat x, y;
 float xmin, xmax;
 float ymin, ymax;
 int i, j, k;

 xmin = -PI; xmax = PI;
 ymin = -PI; ymax = PI;
 xdelta=(xmax-xmin)/(n_segs-1);
 ydelta=(ymax-ymin)/(n_segs-1);
 x=xmin;
 k=0;
 for (i=0; i<n_segs; i++)
        {
        y=ymin;
        for (j=0; j<n_segs; j++)
                {
                vertice[k][0]=x;
                vertice[k][1]=y;
                vertice[k][2]=funcion3D(x, y);
                k+=1;
                y+=ydelta;
                };
        x+=xdelta;
        };
 numvertices=k;
 }

 void GenerarMalla(void)
 {
 int i, j, h, k;

 h=0; k=0;
 for (i=0; i<(n_segs-1); i++)
        {
        for (j=0; j<(n_segs-1); j++)
                {
                poligonos[k][0]=h;
                poligonos[k][1]=h+1;
                poligonos[k][2]=h+n_segs+1;
                poligonos[k][3]=h+n_segs;
                h+=1;
                k+=1;
                };
        h+=1;
        };
 numpoligonos=k;
 }

 void GenerarNormales(void)
 {
 GLfloat fNormalX, fNormalY, fNormalZ;
 GLfloat sumx=0.0, sumy=0.0, sumz=0.0;
 int i,j;
 int shared=0;

 for (j=0; j<numpoligonos; j++)
     {
      //Vertice 1
      i=poligonos[j][0];
      Tri[j].fVert1[0] = vertice[i][0];
      Tri[j].fVert1[1] = vertice[i][1];
      Tri[j].fVert1[2] = vertice[i][2];
      //Verice 2
      i=poligonos[j][1];
      Tri[j].fVert2[0] = vertice[i][0];
      Tri[j].fVert2[1] = vertice[i][1];
      Tri[j].fVert2[2] = vertice[i][2];
      //Vertice 3
      i=poligonos[j][2];
      Tri[j].fVert3[0] = vertice[i][0];
      Tri[j].fVert3[1] = vertice[i][1];
      Tri[j].fVert3[2] = vertice[i][2];
      //Vertice 4
      i=poligonos[j][3];
      Tri[j].fVert4[0] = vertice[i][0];
      Tri[j].fVert4[1] = vertice[i][1];
      Tri[j].fVert4[2] = vertice[i][2];

      //Calcula el vector normal al poligono
      CalculateVectorNormal(Tri[j].fVert1, Tri[j].fVert2, Tri[j].fVert3,
                            &fNormalX, &fNormalY, &fNormalZ);

      //nos retorna el vector unitario, es decir de modulo 1
      Normaliza(&fNormalX, &fNormalY, &fNormalZ);

      //almacena los vectores normales, para cada poligono
      Tri[j].fNormal[0] = fNormalX;
      Tri[j].fNormal[1] = fNormalY;
      Tri[j].fNormal[2] = fNormalZ;
      };
 for (i=0; i<numvertices; i++)
    {
    for (j=0; j<numpoligonos; j++)
       {
       if (poligonos[j][0]==i || poligonos[j][1]==i ||
           poligonos[j][2]==i || poligonos[j][3]==i)
           {
           sumx = sumx + Tri[j].fNormal[0];
           sumy = sumy + Tri[j].fNormal[1];
           sumz = sumz + Tri[j].fNormal[2];
           shared ++;
           }
       }
    vnorms[i][0] = sumx / (float) shared;
    vnorms[i][1] = sumy / (float) shared;
    vnorms[i][2] = sumz / (float) shared;
    Normaliza(&vnorms[i][0], &vnorms[i][1], &vnorms[i][2]);
    sumx=0.0;
    sumy=0.0;
    sumz=0.0;
    shared=0.0;
    }
 }

 void meshlist(void)
 {
 int i,j;

 mesh_list = glGenLists(1);
 glNewList(mesh_list, GL_COMPILE);
 glBegin(GL_QUADS);
 for (i=0; i<numpoligonos; i++)
        {
        j=poligonos[i][0];
        glNormal3fv(vnorms[j]);
        glVertex3fv(Tri[i].fVert1);
        j=poligonos[i][1];
        glNormal3fv(vnorms[j]);
        glVertex3fv(Tri[i].fVert2);
        j=poligonos[i][2];
        glNormal3fv(vnorms[j]);
        glVertex3fv(Tri[i].fVert3);
        j=poligonos[i][3];
        glNormal3fv(vnorms[j]);
        glVertex3fv(Tri[i].fVert4);
        };
 glEnd();
 glEndList();
 }

 void init(void)
 {
 glLightfv(GL_LIGHT0, GL_AMBIENT, light_ambient);
 glLightfv(GL_LIGHT0, GL_DIFFUSE, light_diffuse);
 glLightfv(GL_LIGHT0, GL_POSITION, light_position);
 glEnable(GL_LIGHTING);
 glEnable(GL_LIGHT0);
 glMaterialfv (GL_FRONT, GL_AMBIENT, mat_ambient);
 glMaterialfv (GL_FRONT, GL_DIFFUSE, mat_diffuse);
 glMaterialfv (GL_FRONT, GL_SPECULAR, mat_specular);
 glMaterialf (GL_FRONT, GL_SHININESS, 60.0f);
 glEnable(GL_DEPTH_TEST);
 glPolygonMode(GL_FRONT_AND_BACK, GL_FILL);
 EvaluarFuncion();
 GenerarMalla();
 GenerarNormales();
 meshlist();
  /* put the identity in the trackball transform. */
 glPushMatrix();
 glLoadIdentity();
 glGetFloatv(GL_MODELVIEW_MATRIX, (GLfloat *)trackball_transform);
 glPopMatrix();
 tbInit(GLUT_MIDDLE_BUTTON);
 }

 void display(void)
 {
 glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
 glPushMatrix();
 tbMatrix();
 glCallList(mesh_list);
 glPopMatrix();
 glFlush();
 glutSwapBuffers();
 }

 void reshape (int w, int h)
 {
 if (!h)
	return;
 tbReshape(w, h);
 glViewport(0, 0, w, h);
 glMatrixMode(GL_PROJECTION);
 glLoadIdentity();
 gluPerspective(45, (GLfloat) w/(GLfloat) h, 1.0, 100.0);
 glMatrixMode(GL_MODELVIEW);
 glLoadIdentity();
 glTranslatef(0.0, 0.0, -12.0);
 }

 void keyboard(unsigned char key, int x, int y)
 {
 switch (key)
   {
	case 'f':glPolygonMode(GL_FRONT_AND_BACK, GL_FILL);
			 glutPostRedisplay();
			 break;
    case 'w':glPolygonMode(GL_FRONT_AND_BACK, GL_LINE);
			 glutPostRedisplay();
			 break;
    case 27: exit(0);
             break;
   }
 }

 void mouse(int button, int state, int x, int y)
 {
 tbMouse(button, state, x, y);
 glutPostRedisplay();
 }

 void motion(int x, int y)
 {
 tbMotion(x, y);
 glutPostRedisplay();
 }

 int main(int argc, char** argv)
 {
 glutInit(&argc, argv);
 glutInitDisplayMode (GLUT_DOUBLE | GLUT_RGB);
 glutInitWindowSize (400, 400);
 glutInitWindowPosition (0, 0);
 glutCreateWindow ("Superficie 3D");
 init ();
 glutDisplayFunc(display);
 glutReshapeFunc(reshape);
 glutKeyboardFunc(keyboard);
 glutMouseFunc(mouse);
 glutMotionFunc(motion);
 glutMainLoop();
 return 0;
 }
