Identification Pictures for
Surface Mount Devices (SMD)
All images and text are copyright VK3EM - Luke Enriquez (c) 2000

Capacitors

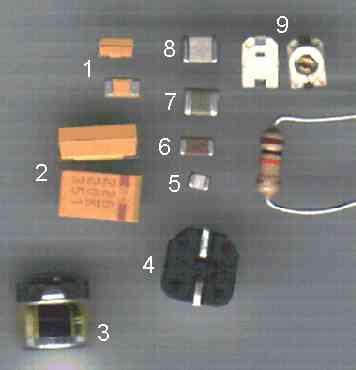

1. A-Case Tantalum (Bottom and Side)    2. D-Case Tantalum Capacitor (Top and Side)     3. Electrolytic Capacitor (Side View)    4. Electrolytic Capacitor (Bottom View)  5. 0805 Cermaic  6.  1206 Ceramic  7. 1210 Ceramic  8 . High Q Porcelin RF  9. Variable Trimmer (Top and Bottom) Note : 1/4 Watt leaded resistor as reference

Resistors

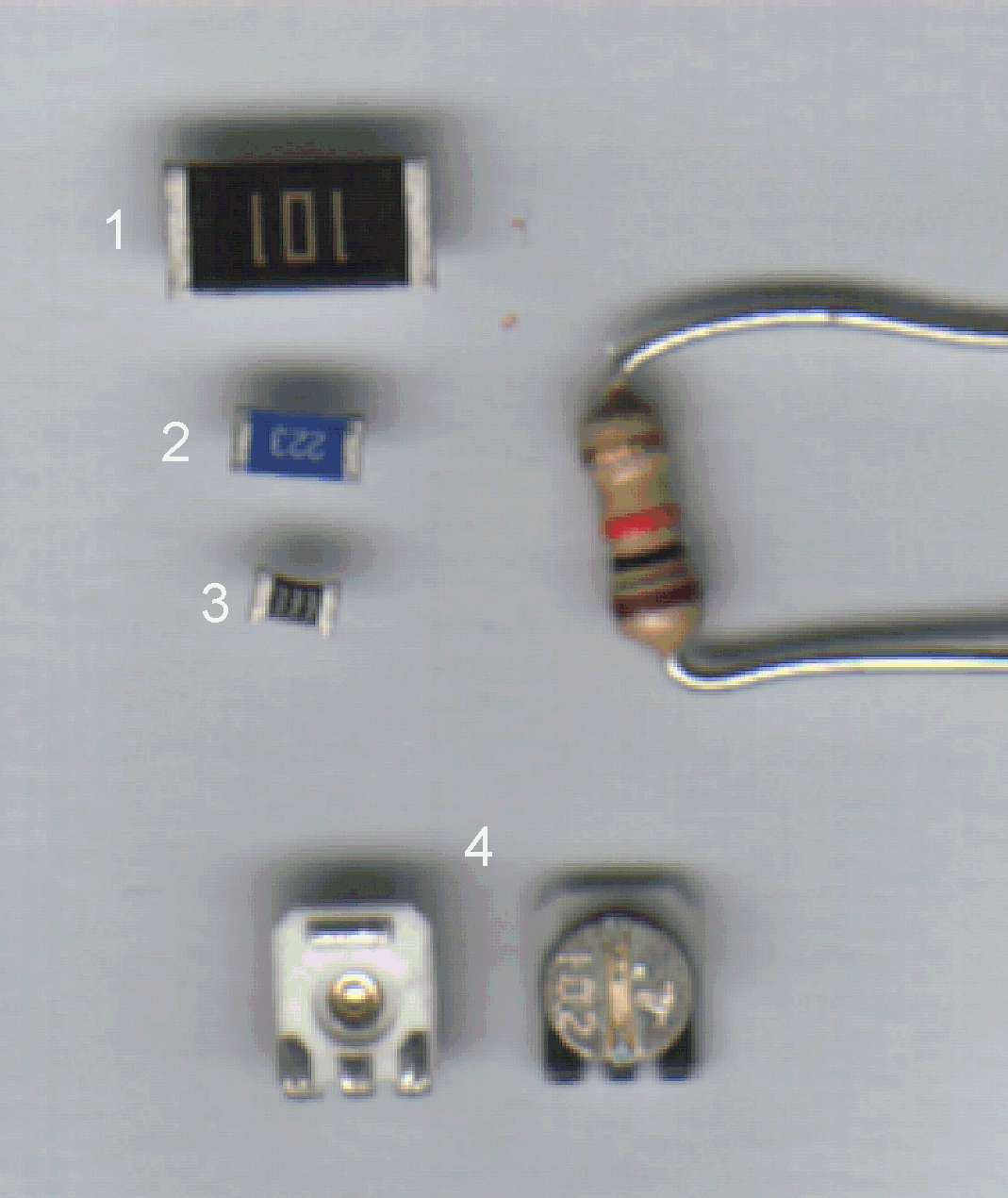

1. 1 Watt 1218        2. 1206 1/4 Watt        3. 0805 1/8 Watt        4. Potentiometer (Top and Bottom)

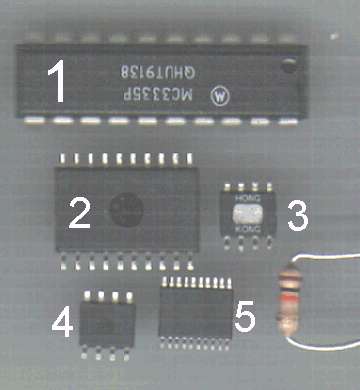

1. 20 Pin DIP (Reference)  2. 20 Pin (WIDE) SO-IC   3. SO-IC 8 with heat sink tab   4. SOIC-8   5. 20 Pin SSOP

1.  SMT Power Transistor  2. SMD Led  3. Melf Diode   4.  4 Leg SOT  5 - SMB Diode  6. SOT-223

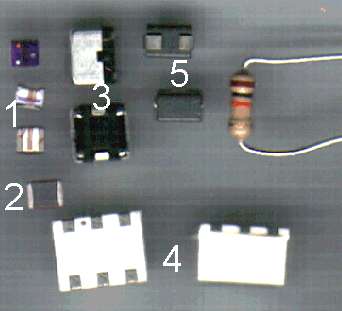

1. 1008 Inductor (Wire Wound) 2. 1210 Ferrite Bead  3. Variable Ind  4. RF Transformer 5. Ferrite Bead
