Extreme Programming Overview

Why XP

The cost of fixing things increases profoundly the longer we wait. Stretching out design just makes the errors cost more, whether found inside design, or in a later phase. The right lesson is to find out right away whether we've made a mistake. The best way to do that is to take an idea through analysis, design, code, and test in the shortest possible time. -- Ron Jeffries

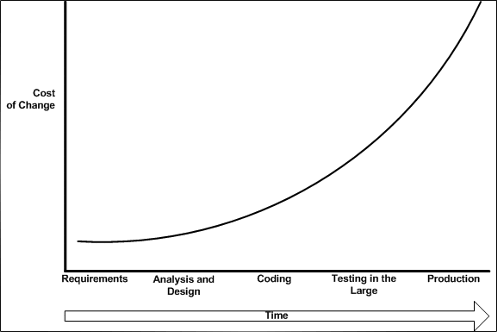

The following graph (from Boehm's famour book, Software Engineering Economics) shows that the cost of change increases exponentially with time with the waterfall model. Therefore, it becomes important to keep changes to a mimimum once an application is in production.

Kent Beck's idea is that the cost of change can be flattened by making software more malleable. Rather than following the waterfall method, one goes through short iterations. A variety of practices allow the application to be modified more easily over time. Thus Extreme Programming emphasizes less design up-front, whereas waterfall pushes all of the design to the beginning of a project.

XP Equation

XP contends that every project balances 4 principal variables: Time, Cost, Scope, and Quality. XP fixes the time, cost, and quality. Therefore only scope can be varied during the project.

XP Values

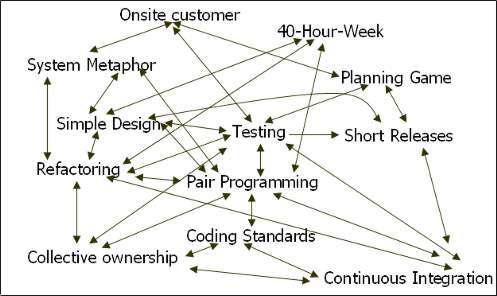

XP Practices Complement One Another

Technical/Programming
Test-Driven Development
Frequent/Ongoing Refactoring
Continuous Integration
Paired Programming
Design/Architecture
System Metaphor
Simple Design
Coding Standards
Collective Code Ownership
Project Management
Planning Game
Customer Rep On Team
Frequent Releases
Sustainable Pace
Acceptance Tests

XP Process

Iteration Planning

Each iteration consists of stories.The business decides which stories to implement.The developers estimate how long each story will take to complete. Stories should be broken such that they have a clear beginning and end. Also, stories should be small enough so that at least five 8-10 can be completed per month.

Story and Task Cards

Story cards represent features and are defined primarily by the business. However, Q&A and the development team itself may also assign story cards in some instances. All stories must ultimately be approved by the business. Stories can be split and modified as needed. Task cards represent tasks that need to be performed to accomplish each story.

Velocity

Developer estimates are measures in "ideal hours." In other words, the number of hours it would take to complete a task without interruptions or major problems. Velocity represents the ratio of ideal hours to the actual time it takes to complete a task. For example, if 40 hours worth of ideal time stories are placed into the first iteration, and only 20 hours of stories are actually completed, then the velocity is 0.5. For the next iteration, only 20 hours worth of ideal time tasks should be taken on. The goal is to know what is possible and therefore to do the highest priority tasks that can fit into an iteration.

Stand-up Meeting

During an iteration, there is a brief daily meeting. Team members state what they did yesterday, what they plans to do today, and bring up any obstacles that may be in their way.

Bullpen Environment

XP Advocates an open environment to make paired programming and interaction with the customer representative easier.

XP Roles

Customer

The customer drives the project. He/she sets goals and prioritizes features. Business decisions are the customer's job.

Developer

The development is responsible for technical planning (architecture, design) and for providing a solution that satisfies the customer.

Tracker

The tracker keeps track of the schedule. The tracker's job is to maintain valuable project statistics and to make sure the project is meeting its objectives.

Coach

The coach is basically a mentor who helps guide the team. The coach is the most experienced practictioner of XP and can help resolve ambiguities as well as technical challenges.

Rights and Responsibilities

Customer Rights

Customer Responsibilities

Developer Rights

Developer Responsibilities
