This is my first ( and very old now ) succesfull Jal&Pic application, here is the schematic:
I have made three identical panoply, ( named
left, center and right) everyone have 6 groups of lights, three are yellow
disposed in a rectangular shape, the other three are red, yellow and green
disposed in a circular shape and one speaker who make noise with two different
frequencies. In schematics it's figures only 6 leds, in reality every led
is a group of n leds, of course this need some additional drivers. Because
serial.jal library had special requirements which I don't understand at
that moment, I had used Axel
serial
routine, you can download above schematics, JAL program (
serial.jal
)and Axel library from here:
serial.zip.For
this left panoply, leds and speaker will be active sending ASCII caracters
(taste 0 to 7 on PC keyboard) from a terminal emulator at 19200bps. Parameters
of transmision must be set appropiate: 8 data bits, no parity, 1 stop bit
and flow control can be either hardware or none. ICP socket means In Circuit
Programming, this ICP it's strongly recomended to be added to any programmer
and P1 is COM1.

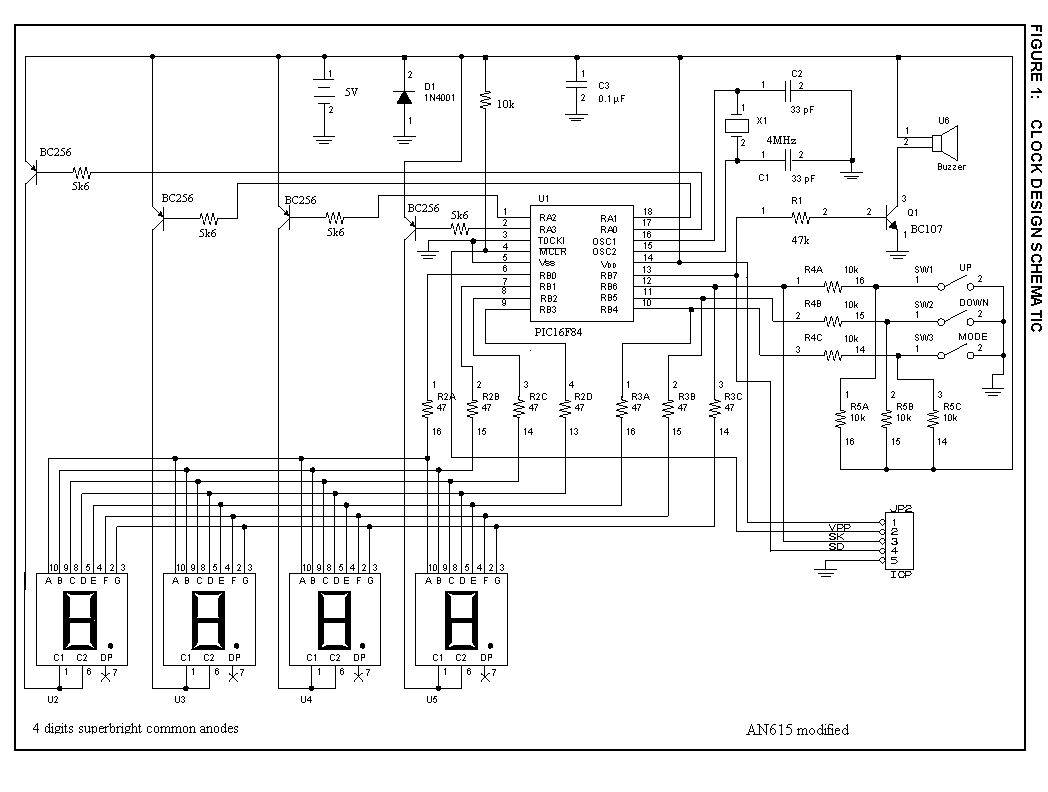

This clock use a modified Microchip AN615 schematics.
I've tested because PIC pins are used in an "aggressive mode", some
of them are input and output in a sequence way. Watch the schematics:
For a good visibility of this multiplexed display,
I have used 25 mm Kingbright seven segment display. Flickering is almost
invisible with a refreshing rate of about 5mS . To keep functional
the In Circuit
Serial
Programming capabilities,
R1 must have a large value. All three setting buttons are connected in
a smart way at the same pins who driving display segments. The program
is doing a standard 24 hours format clock . To have better accuracy I've
decided to change oscillator from 4.00MHz to 3.2768 MHz, so one second
time base can be obtained without any software trick. Here is the
code, if you have some noticeable improvements please let me know. clock1.jal
Newest clock
version ( 4,000 MHz quartz, interrupts, cucu ) it's in evaluating process
now, but seems to be very accurate, with a correct compensation it lies
me only +/- 5seconds/ month.
There is a simple methode to build ( using almost the same hardware
and *only* a PIC ! ) a HH:MM:SS clock or a dual clock HH1:MM1 HH2:MM2 showing
two different earth times. Do you know what I'm talking about ? If yes,
your project can lie in the table below. If you are
realy fascinated about time measuring, see my WEB PICx84 watch collection
( best regards to people who have built these clocks, if zipped documentation
was complete, including mail and web address, I could provide here a link
to the owners page... )
Verdict | Source | Autor |
---|---|---|
Briliant: | mclock.zip | Bob Blick |
Nice: | pictock.zip | John Becker |
Interesting: | Jinx's clocks | Joe Colquitt |
first.zip | David Tait | |
unclock.zip | Mike Predko | |
Common: | countdn.zip | Stan Ockers |
clkapic.zip | French design | |
clock.zip | John Patterson | |
binclk.zip | Peter Engles |
