VHDL Editor with Hierarchy Tree

Features:

• VHDL syntax highlight
• Cut, Copy, Paste, and Undo
• Goto Line, Find, and Find Next
• Replace
• Comment out selected lines
• Quick Locate an Entity, Architecture, Component Prototype (Declaration), or Component Instance (where the component is used). Look up the left frame, find the object you want to display or edit, highlight it by left clicking on it. That object will appear in the right frame. If you left click on it in the left frame again, the first line of the object in the right frame will be highlighted. With this feature, you can quickly and easily find a component without searching for the component name using Edit/Find

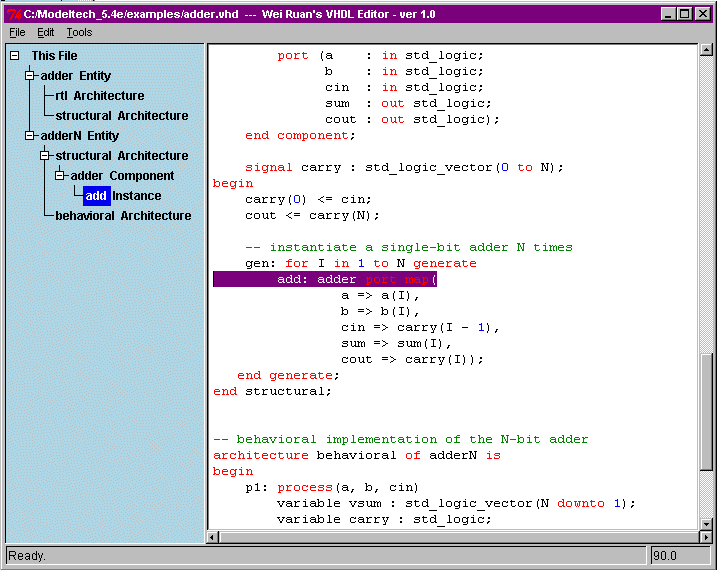

Screenshot:

To run this application, you need following extensions:

• Tcl Runtime Library
• Combo Box
• Super Text

Download this application

Updated on July 31, 2001 to make it work with supertext v1.0b1.
