Boyette's Engine...

Boyette's Engine... Stage 1
...A converted 3hp. Briggs-Stratton!

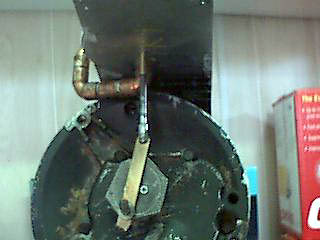

Here is an overall view with the burner removed to see the displacer cylinder. And from the flywheel end...

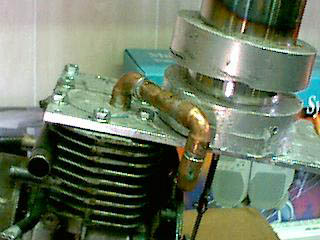

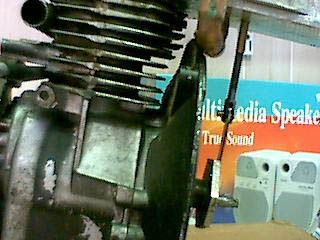

The displacer rod and link are connected to the crankshaft. The copper tubing connects the displacer chamber to the power cylinder.
Here is a view with the burner installed!
And here is the creator of this engine!


Pictures provided by Boyette White.

Go to STAGE 2 of development!
