smXpress

The different output screens when the project smXpress will run.

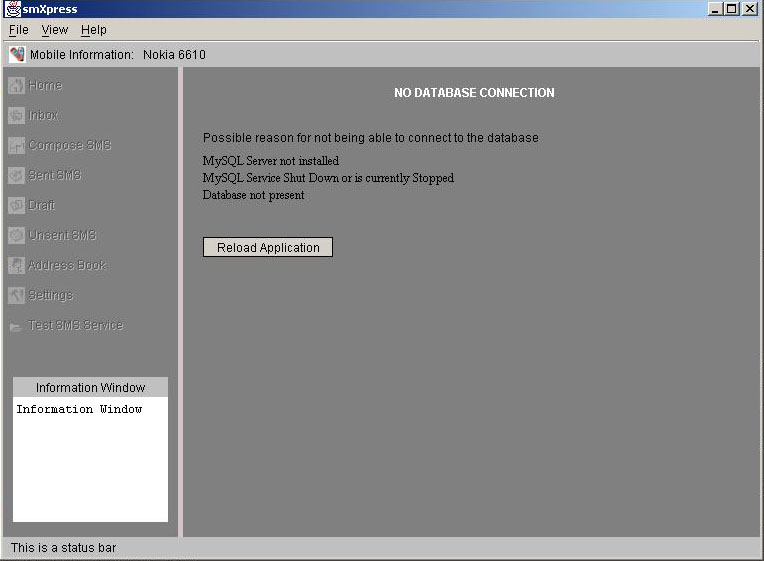

It will check the presence of the database. If presence, it will proceed else will display error screen.

If the database is present, then it will check for presence of mobile handset.

If both database server and the mobile is present, the main application will start and only then other buttons will be activated.

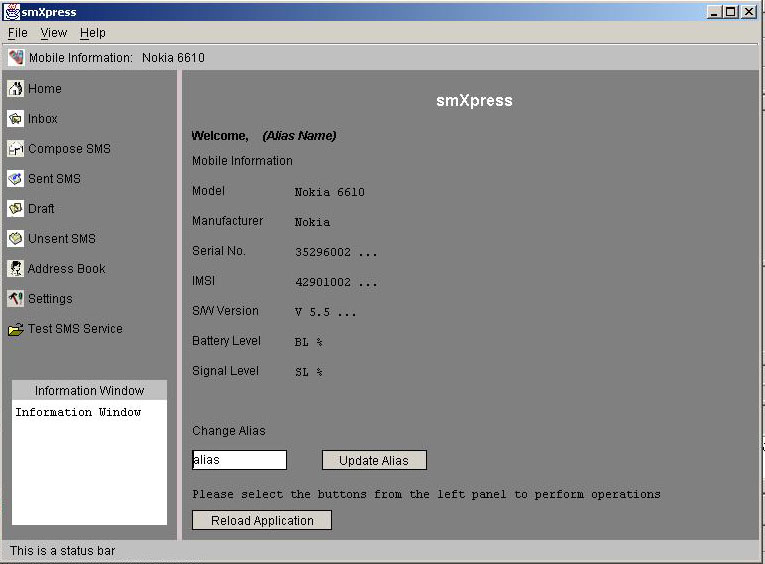

The screen shown is main screen or when the Home button is clicked.

Other screens are shown below.

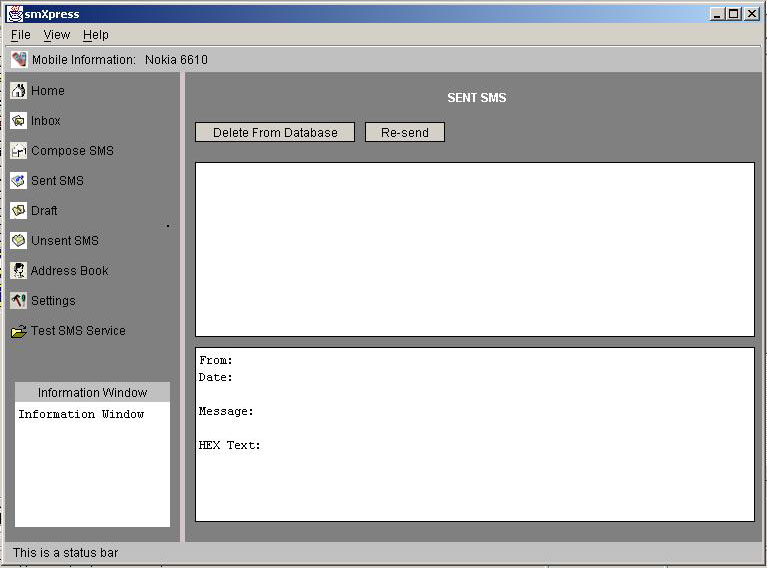

The screen for the Sent SMS, Draft, Unsent SMS are of same type. Only difference can be found in the button actions that are present in the screen.

Sent SMS - Delete, Send again

Draft - Delete, Send, Send All

Unsent SMS - Delete, Send, Send All

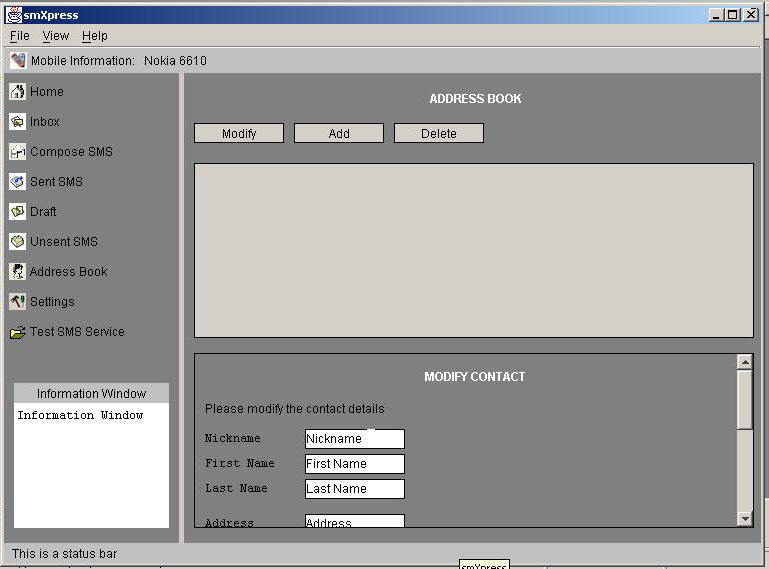

In the address book, contacts brief details will be displayed in the upper window. Selecting any one row will display full details in the bottom window.

Add contact and Modify contact form will be displayed in the bottom window.

Delete botton will open a confirm window.
