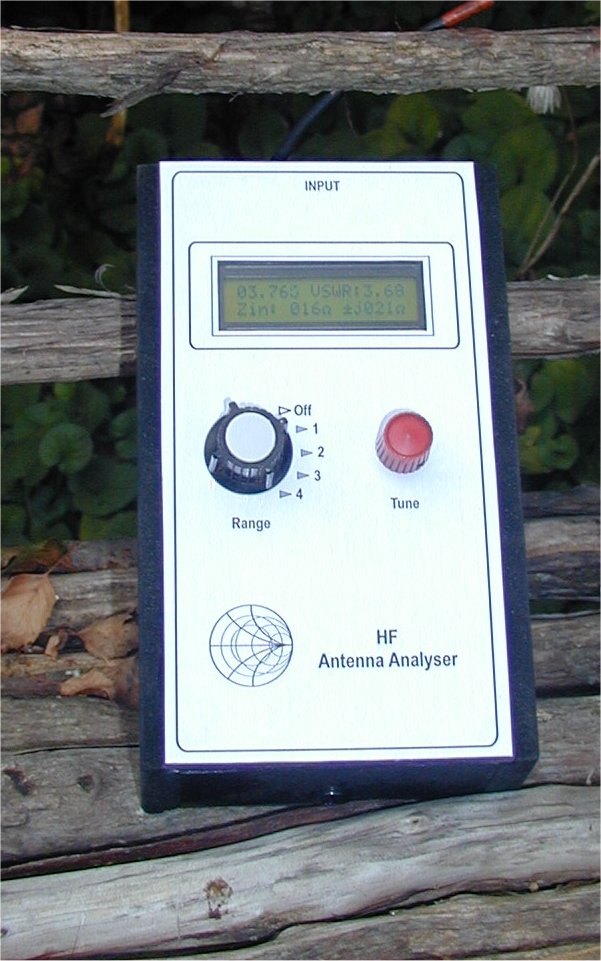

ZL2PD HF Digital Antenna Analyser

This webpage contains software and project related information for anyone interested in building this instrument. This HF digital antenna analyser uses a Philips 87C552 microprocessor, an 8051 compatible device. The analyser is the subject of an article currently planned for publication in New Zealand's amateur radio magazine "Break-In" in late 2005. Break-In is published by NZART, New Zealand's amateur radio organisation. Details about the magazine can be found at www.nzart.org.nz ('Break-In' is a term used in ham radio to describe the method by which an operator sending a message can hear the other party's signal during brief transmission pauses)

ZL2PD Digital Antenna Analyser

Files Available to Download:

Intel HEX file - Clicking on this link will allow you to download a zipped HEX format file (3 kB) for programming an 87C552 chip for use in this analyser

Source File - Clicking on this link will allow you to download a zipped Metalink compatible ASCII TEXT format source file (14 kB) for this instrument. This will allow the code to be modified by experienced 8051 programmers who may wish to add more features.

Updates - Clicking on this link will allow you to download a zipped file containing any changes made to the design of this analyser or its software since publication.   (Nothing here at present)
