1970 Assembly Manual Wiring Diagrams

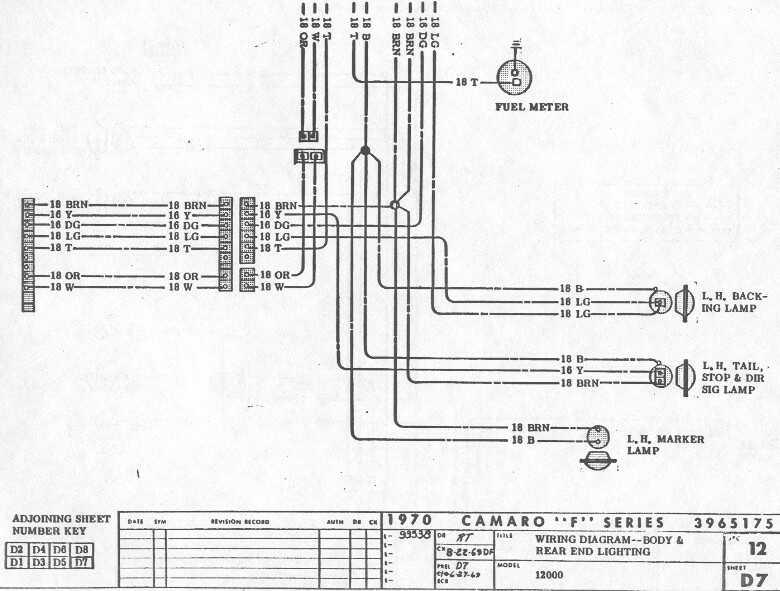

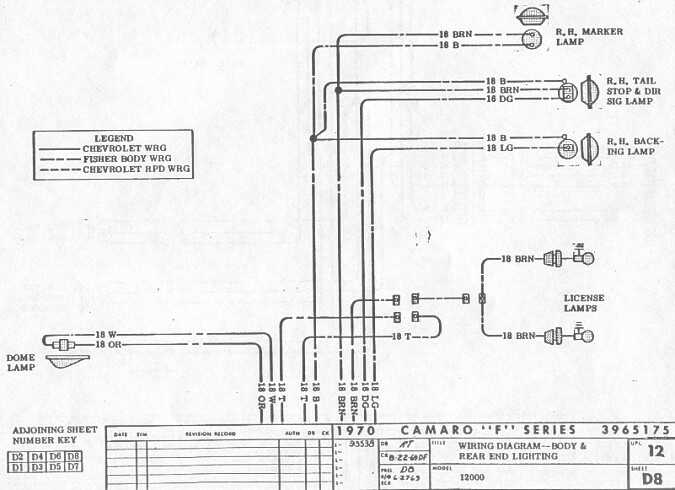

Body and Rear End Lighting

wire_gm_body_rear_end_lighting_1.jpg (45138 bytes)    wire_gm_body_rear_end_lighting_2.jpg (31148 bytes)

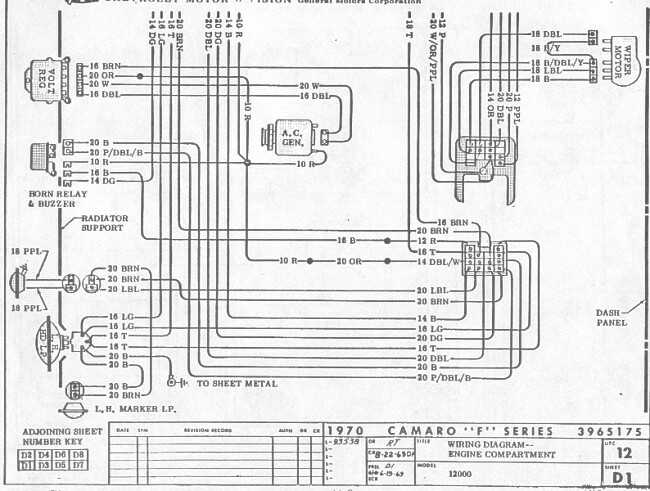

Engine Compartment

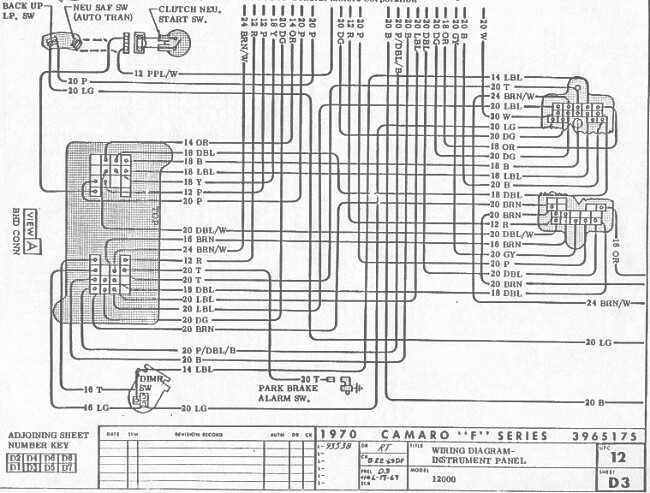

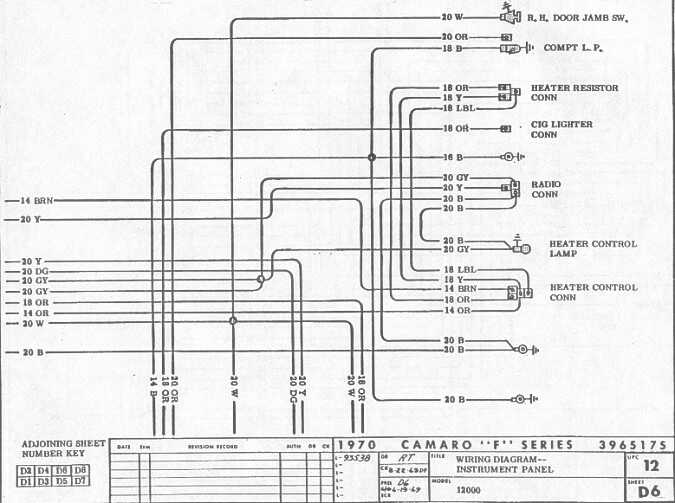

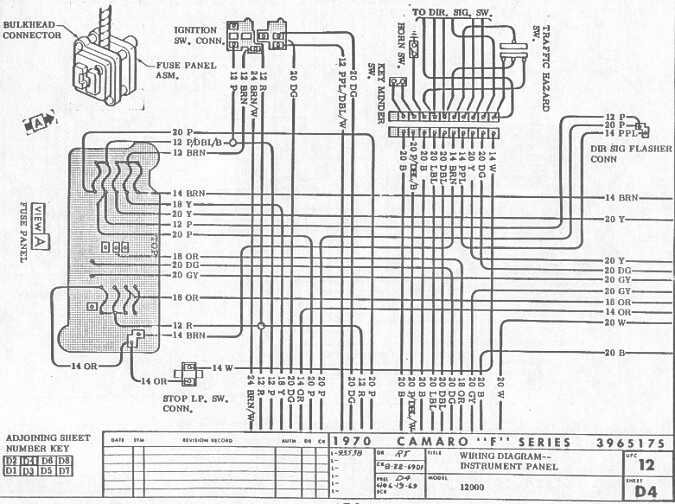

Instrument Panel

 wire_gm_ip1.jpg (52308 bytes)    wire_gm_ip2.jpg (52939 bytes)    wire_gm_ip3.jpg (49188 bytes)    wire_gm_ip4.jpg (37972 bytes)

1970 Wiring Diagrams from another source

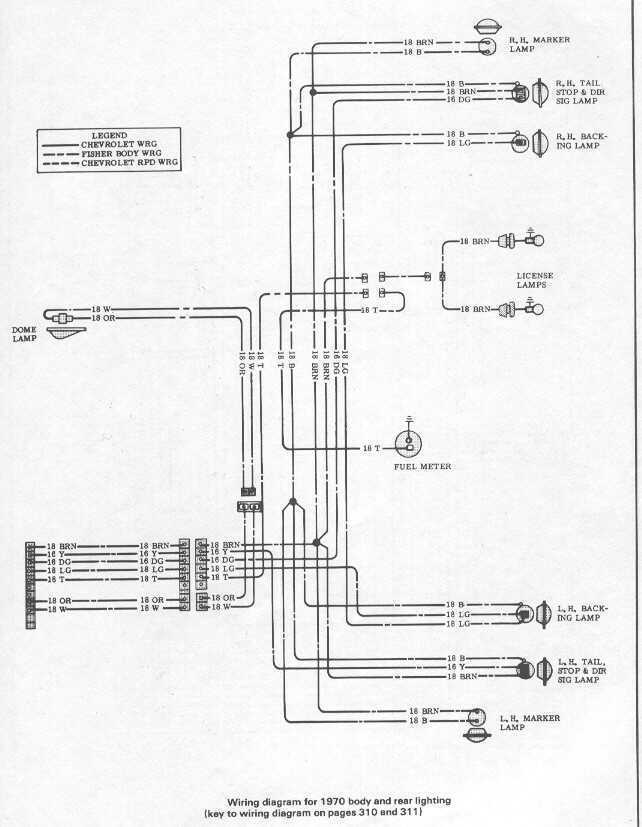

Body and Rear Lighting

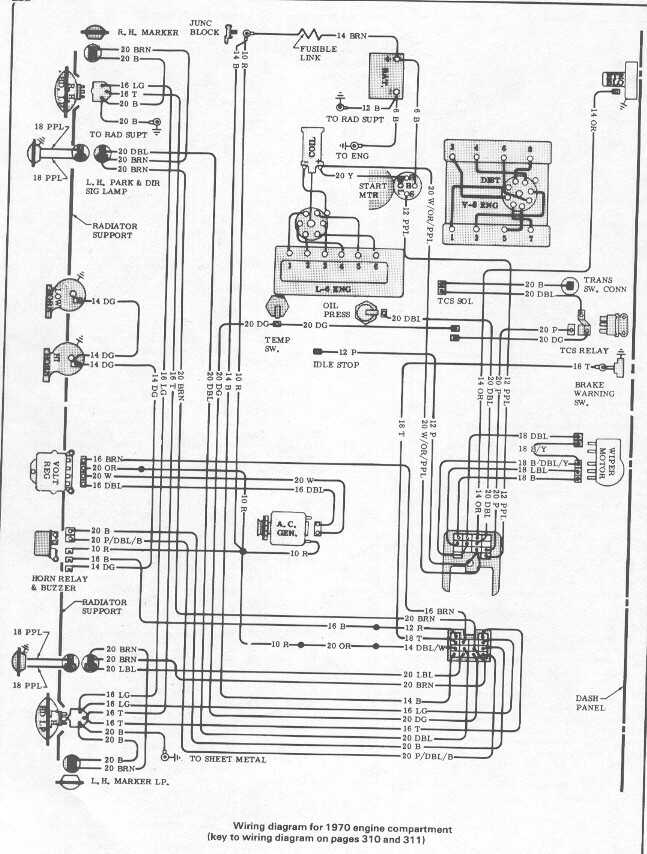

Engine Compartment


Instrument Panel


Key Page 310


Key Page 311
