AGUSTA A109 CM

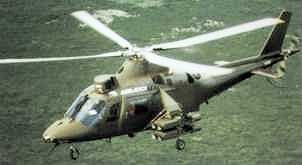

El helicóptero A109 CM es el modelo militar de la familia A109 operando en diferentes configuraciones por las fuerzas armadas de varios países. El A109 CM es un helicóptero liviano, bimotor, con rotor principal articulado con palas de material compuesto, con un motor ALLISON 250C20R/1 y tren de aterrizaje con ruedas fijo. Soporta un equipamiento de armamento muy grande y puede cumplir varios tipos de misiones tales como: Patrullaje y reconocimiento, Transporte, Antitanque, Ambulancia, etc.

The A109 CM helicopter is the military model of the A109 family in operation in various configurations by the armed forces of many Countries around the world. The A109 CM is a light-weight, twin engine, four composite bladed fully articulated rotor, eight seats multirole helicopter powered by two ALLISON 250C20R/1 turboshaft engines. It features a wheel type fixed landing gear to increase the crashworthiness and ease ground handling. A wide range of armament and mission equipment make the A109 CM a real multirole light helicopter able to satisfy the most military requirement thus fulfilling different missions such as:

PATROL AND RECONNAISSANCE
- ESCORT/AREA SUPPRESSION
- TRANSPORT
- LIGHT ATTACK/ANTITANK
- LIASON AND COMMAND
- MEDICAL EVACUATION

Characteristics Características	Information Información	Characteristics Características	Information Información
First Flight Primer Vuelo	19??	Engine Motor	2 Allison 250 C20R/1
Seating Capacity Plazas	1 / 7	Power Potencia	450 SHP each 400 SHP Cont
Empty Weight Peso Vacío	3532 Lbs	Hover Ceiling O.G.E. Estacionario O.G.E	6100 Ft
Maximum Weight Peso Máximo	6283 Lbs	Hover Ceiling I.G.E. Estacionario I.G.E	9700 Ft
Vel. Cruise Vel. crucero	131 Kts	Service Ceiling Techo de Servicio	15000 Ft
V.N.E. V.N.E	152 Kts	Maximum Range (Std) Alcance (Std)	352 NM
