HELICÓPTEROS
"THE PAGE"
BELL
HELICOPTERS TEXTRON

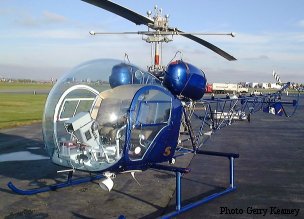

BELL 47 G4 |
Characteristics |
Information |
| First Flight Primer Vuelo |
- |
| Seating Capacity Asientos |
1 / 2 |
| Empty Weight Peso Vacío |
1780 |
| Maximum Weight (Int.) Peso Máximo (Int.) |
2950 |
| Maximum Weight (Ext.) Peso Máximo (Ext.) |
2950 |
| Engine Motor |
1
Lycoming |
| Power Potencia |
305 / 260 Cont |
| Transmission Rating Límite de Transmisión |
260 / 220 Cont. |
| V.N.E. V.N.E |
91 Kts. |
| Vel. Cruise Vel. crucero |
74 Kts. |
| Hover Ceiling O.G.E. Estacionario O.G.E |
3900 |
| Hover Ceiling I.G.E. Estacionario I.G.E |
7700 |
| Maximum Range (Std) Alcance (Std) |
295 NM |
