Early History of Odiorne's Point
The first recorded settlement and fortification at this site was Pannaway Plantation, built by David Thompson in 1623, as the first English settlement in the Piscataqua River area. A large stone structure was probably built, called the "Great House", with other additional structures. This may have been a trading post used by the first settlers. The Thompson group relocated to Boston Harbor in 1627. A log garrison house was probably built around 1670 by the Odiorne family, but no archaeological evidence exists to prove or disprove any type of building materials used in the early settlements here. A gravel pit operation in the early 1900's obliterated any trace of the original settlement sites.
The area was used almost exclusively for farming up through the 1880's, after which several cottages, including the Sagamore House resort hotel on Frost Point, were built for summer residences and tourists. A small Life-Saving Station was built at Odiorne's Point in 1894, in use until 1906. It was a foot-patrol check-in station serving the main station at Wallis Sands in Rye. The stone breakwater at Frost Point was built in 1902 by the US Army Corps of Engineers.
World War I Era
No fortifications were planned for this location. However, two truck-mounted 60-inch Sperry searchlights were set up at Frost Point in 1920 (harbor positions #1 and #2). They were withdrawn in 1921 and shipped to Fort Totten, NY. The 197th Coast Artillery Regiment (Anti-Aircraft), New Hampshire National Guard conducted yearly summer training exercises nearby at Rye Harbor after 1922.
World War II History
The onset of World War II saw the need for increased protection of Portsmouth Harbor that could not be met by any of the other existing forts of the area. Two batteries of modern twin 6-inch guns (200-series), with a range of 15 miles, and a battery of twin 16-inch guns (100-series), with a range of 25 miles, were planned as part of the new defenses. Fort Foster only had room for one new battery, but there was no space available at any of the other forts without destroying existing batteries, which was deemed unacceptable. The only available land was between Odiorne's Point and Frost Point in Rye, which at the time was home to several fashionable summer houses on 22 lots. In 1942 the federal government condemned and purchased all of the land between the two points (264.9 acres) and gave all residents 30 days to pack up and leave. In those days, market conditions were depressed, and no one got top dollar. To this day the surviving "old-timers" still feel bitter about the whole affair, mostly because they did not get a chance to get any of it back when the military left. The coastal highway was then closed to the public, which then had to use another route to travel along the coast between Portsmouth and Hampton.

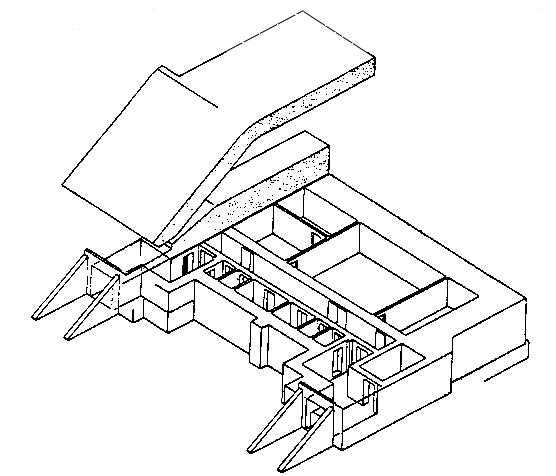

The first emplacement that was built here in 1942 was a temporary one, consisting of four 155mm guns, Model 1918M1, serials 872, 783, 1080, 235 (Minneapolis Steel and Machine Co.), on tractor-drawn carriages, Model 1918M1, serials 572, 694, 328, 746 (Minneapolis Steel and Machine Co.), set in concrete "Panama mounts" at Odiorne's Point. Three of these mounts are still visible today. The fourth is buried under some brush. The center of the gun carriage was placed over the central "hub" of the mount. The towing trails of the carriage were set on the steel rails on the outer ring, to allow for a full 360º field of fire. The guns were originally temporarily set up at Frost Point in field emplacements in 1941. Four earth-covered concrete magazines were built behind the gun mounts (two forward and two rear), along with a Battery Commander's Station. These structures no longer exist, however the concrete foundation of the #2 forward magazine can still be found. This battery served until 1944, when the other new batteries here were completed.

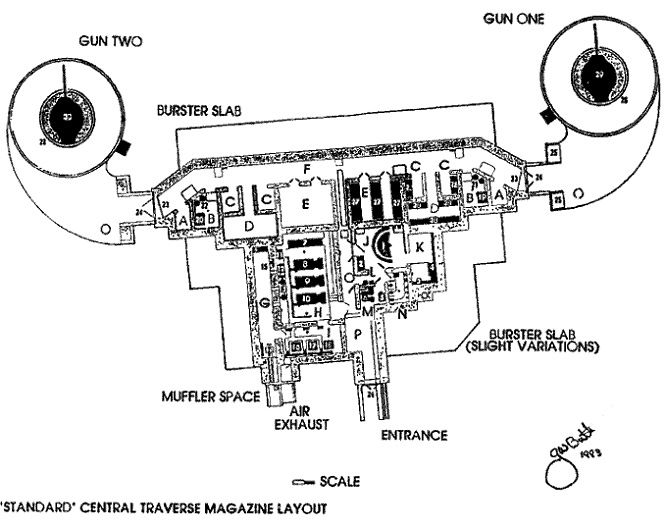

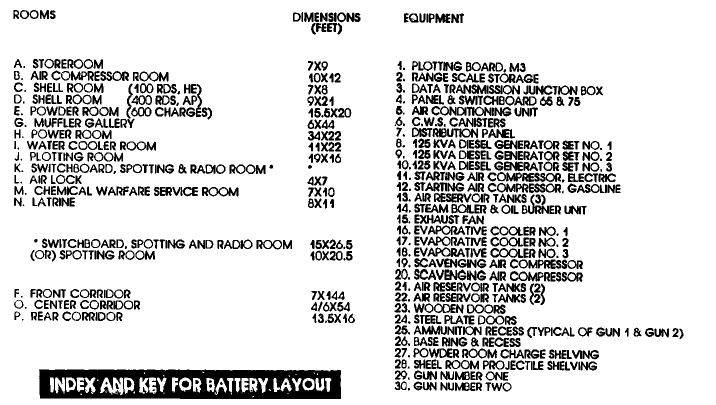

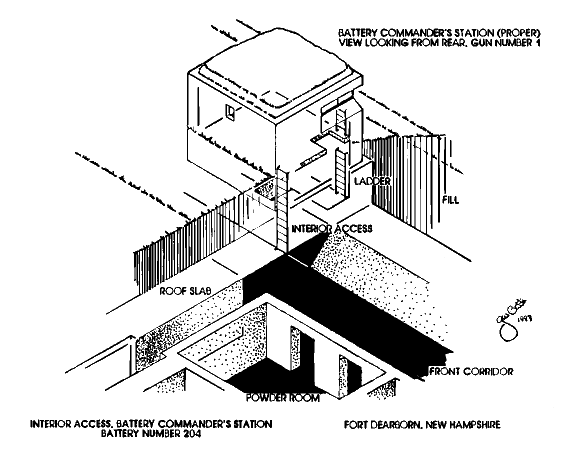

Construction was started in 1943 on the concrete emplacement for the new M1 6-inch shielded guns, serials 22, 23 (Watervliet Arsenal), on M3 barbette carriages, serials 14, 15 (Watertown Arsenal), for Battery Construction No. 204 at Odiorne's Point (proposed name was Battery M. H. Barry in honor of Lt. Colonel Michael H. Barry). The layout of Battery 204 differed from most other similar batteries, in that the Battery Commander's Station was built directly on top of the magazine, and that access to the station was by an interior ladder. This design was later deemed dangerous, as a direct hit on the Commander's Station would seriously damage the entire magazine. All other 200-series batteries, such as Battery 205 at Fort Foster, would have their Commander's Station built as a seperate structure, a safe distance away from the magazine. Two automatic 40mm mobile AA guns, Model M2, and two 50 cal. heavy machine guns were emplaced around the battery for land and air defense.

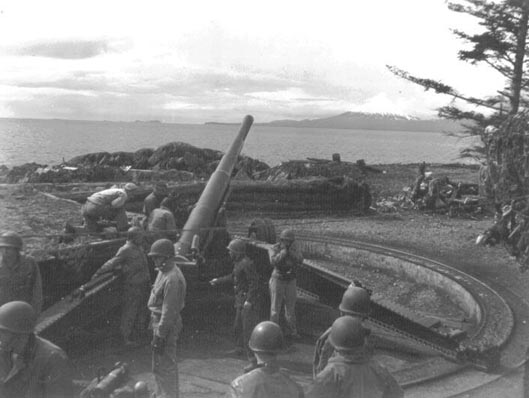

See Sitka's 6-inch Guns, by Matt Hunter, and also The 6-inch Shield Gun, by Andy Bennett,
for more photos and information on this type of gun.

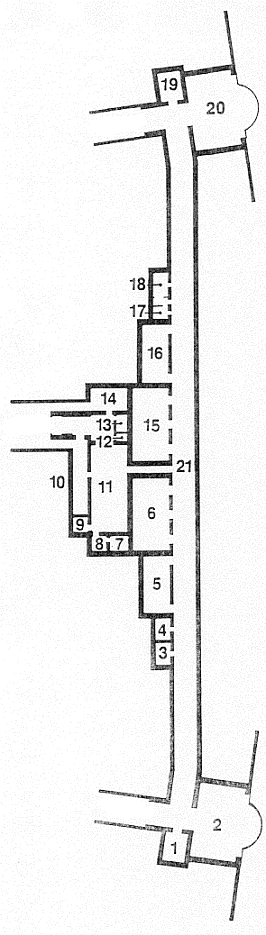

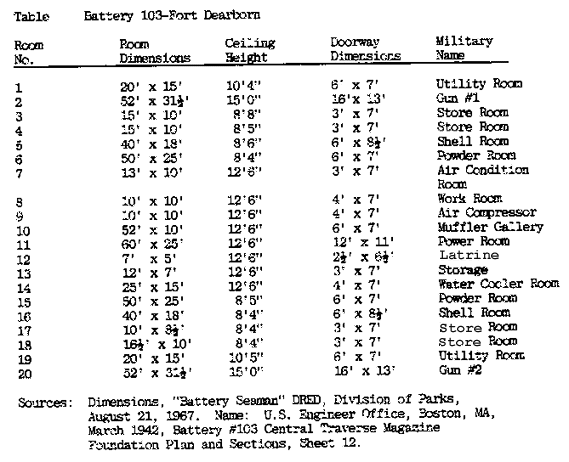

The 50-caliber MKII M1 Navy guns that were available to the 100-Series Battery Program came from the "South Dakota" Class battleships of 1917, and the "Lexington (CC-1)" Class heavy cruisers that were scrapped as per the 1922 Washington Naval Treaty. The gun tubes, serials 99, 104 (Watervliet Arsenal), were mounted on M5 barbette carriages, serials 56, 57 (Watertown Arsenal), in protective concrete casemates at Frost Point. This battery was named Battery Construction No. 103 / Battery Seaman (in honor of Colonel Claudius M. Seaman). Steel-plate shields were added in 1946. The double Battery Commander's (BC) and Gun Group Commander's (G1) Observation Station was built on top of the battery, similar to Battery 204 (except for exterior access). The Gun Group Command Post was located in a small concrete building behind the battery, transferred from Fort Stark in 1942. The plotting room for Battery Seaman was built as a seperate buried casemate behind the battery due to the shock of firing a gun of that large caliber. During the war, four automatic 40mm mobile AA guns, Model M2, and four 50 cal. heavy machine guns were emplaced around the battery for land and air defense.

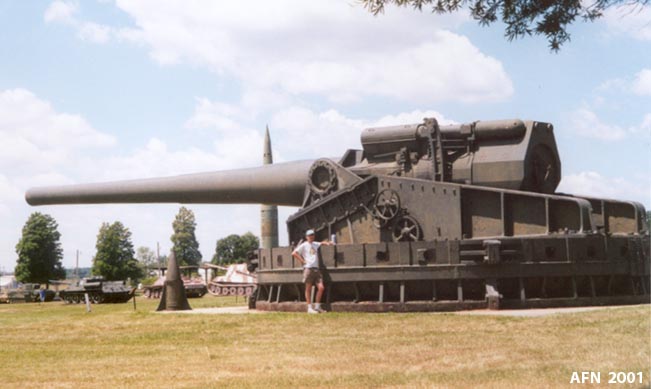

Navy MK II 16-inch gun, on Army proof-mount barbette carriage.
This may be the last surviving example of this type of weapon.
Located at Aberdeen Proving Ground, Aberdeen, Maryland.
In late 1942 construction was begun on the fourteen Fire-control Towers (or Base-end Stations) that were needed for the three new gun batteries. These stations ranged between 25 miles north and 25 miles south of Frost Point, the maximum range for the 16-inch guns of Battery Seaman. (See World War II Towers).
In 1943 the entire reservation was formally named Fort Dearborn, after Henry Dearborn, born in Hampton, N.H., Major in the American Revolution, Secretary of War during 1801-1809, and Major General in the War of 1812. (see also N.H. war heroes) Construction was finished on several new buildings, including a gate house by the bridge over Seavey Creek, barracks, Officers' quarters, chapel, commissary, and a TNT storage magazine used for the harbor mines. A 60-inch Sperry searchlight on a steel tower (position #9) and an SCR-268 radar were located at Odiorne's Point. (See also World War II Towers). Most new construction was alongside the highway, including several Quonset huts. Several of the original houses that were not immediately razed were used as barracks or Officers' quarters, but all were demolished after the war, with the exception of the Odiorne Farmhouse (built 1800), and the Sugden House (built 1921), which is now the Seacoast Science Center and the visitor center to the fort and park. The fort was garrisoned by elements of the 22nd Coast Artillery Regiment (Harbor Defense), U.S. Army. Barbed-wire security fencing (dead-lines) around the Seavey Creek marshes is still visible. Anti Motor Torpedo Boat Battery 951, built in 1943 at Pulpit Rock Camp, just south of Odiorne's Point, consisted of two 90mm M1 guns on fixed M3 mounts, two mobile 90mm M1A1 guns, and four 50 cal. heavy machine guns. It was not officially part of Fort Dearborn, but rather under the umbrella of the Portsmouth Harbor Defense Command. (See Pulpit Rock Camp). AMTB Battery 351 was also at Pulpit Rock Camp, consisting of two 37mm mobile guns, later replaced with two 40mm M2 mobile guns, and a dedicated searchlight.
In June 1944, Batteries 204 and Seaman were completed and proof-fired with several rounds for each gun. This was the only time that they were ever fired. Windows were shattered as far away as downtown Portsmouth. Battery Seaman was then placed on caretaker status to finish out the war. Battery Hunter at Fort Stark was then retired, as it was no longer needed.
Cold War Period
In 1946 the ocean-side of the reservation was fenced-in to allow the public opening of the coastal roadway. All four 90mm guns of Battery 951 at Pulpit Rock were removed and placed in storage inside Battery Seaman. In 1947 the 954th Coast Artillery Battery (Harbor Defense), New Hampshire National Guard, Portsmouth, was formed with 101 men to operate Battery 204. The 954th Battery, along with its sister unit the 978th C.A. Battery (HD) of Dover, was a part of the 237th Coast Artillery Battalion (Harbor Defense), New Hampshire National Guard, headquartered in Dover. Units of the 281st Coast Artillery Battalion (Harbor Defense) were also present here at Fort Dearborn during this time. However, by 1948 the fort was deactivated and all the guns were removed. In 1949 the fort was declared surplus property, and the 954th Battery, as well as the 237th Battalion, was redesignated as Field Artillery, as the U.S. Army Coast Artillery was abolished by 1950. The Seavey Creek parcel of the reservation (128.2 acres of the old Odiorne farmstead) was deeded by quitclaim to private landowners (not the original landowners, however), with the original farmhouse still intact. The U.S. Air Force took formal possession of 45.3 acres at Odiorne's Point in 1955 (in actual use since 1949) which then became the Rye Air Force Station, used as an Air Defense Command (ADC) Air Defense Radar site for the 644th Aircraft Control and Warning (AC & W) Squadron, supporting the bombers and fighters of Portsmouth Air Force Base (later known as Pease AFB) in Newington. A mobile AN/TPS-1D radar unit was placed atop Battery 204 from 1955-57. The Sugden House was used as barracks for about 15 men. A fire station, mess hall, gate house, operations center, and other buildings were built by the Air Force. Some older Army buildings and Quonset Huts still extant at the time were also used. The Air Force personnel left in 1959, while retaining an easement of 0.3 acres for the Fort Dearborn Gap-Filler Annex Air Defense Radar site, operated remotely by the 762nd AC&W Squadron (later the 762nd Radar Squadron) from the North Truro Air Force Station in North Truro, Massachusetts. An AN/FPS-14 SAGE System "Gap-Filler" radar tower was built behind Battery 204 in 1957, in operation until 1968. Meanwhile, units of the New Hampshire National Guard used the Frost Point parcel (91.4 acres), still known as Fort Dearborn, for training purposes from 1949-53. Battery 204 was also designated as a Civil Defense shelter during these years. (Read a trip report by Scott Murdock, taken in May 1999, about the area's former Air Force radar stations and bases.)
Post Military Period
In 1961 the federal government transferred by quitclaim the former Air Station (Odiorne's Point) parcel and the National Guard (Frost Point) parcel to the State of New Hampshire for use as a park, and all of the remaining military structures (including the radar tower) were demolished between 1971 and 1976, with the exception of the concrete batteries and casemates, which by 1980 were completely buried by gravel and soil fill. The former residents had no say in the property transactions, most of them being under the assumption that they would have first choice to buy back their former property. The park was informally open to visitors in 1962, with interpretive programs beginning in 1973. The original name of the park was "Fort Dearborn State Park", but was changed to "Odiorne Point State Park" before it officially opened to the public to better convey the natural history of the area. The former Air Force fire station was used as the first visitor center until 1976. The Sugden House then became the visitor center (enlarged in 1992 and renamed the Seacoast Science Center). The concrete batteries were exhumed in 1988. The plotting room casemate is still entombed however. The Seavey Creek parcel was sold to the State of New Hampshire in 1993, with additional acreage, bringing the total State Park acreage to 331.5 acres. The WWII-era TNT magazine is located on this parcel of land.
Admission to the park is $3.00 per person, with an additional $3.00 per person admission to the Seacoast Science Center. There is limited interpretation of some of the military structures, with additional information and photos displayed inside the visitor center. There are picnic facilities and restrooms at Odiorne's Point, and an unsupervised swimming beach and boat landing at Frost Point. Battery Seaman is partially open to visitors (gun casemates only), but has been heavily vandalized over the years. Battery 204 is currently closed to visitors. During the summer months, visitors should bring a copious supply of insect repellent, as the local mosquitos and black flies are reknown for their ferocious appetites!
Odiorne Point State Park official website from NH State Parks
Map of Odiorne Point State Park.
1992 USGS Satellite Images of Odiorne Point State Park
Battery locations outlined in yellow. Sugden House outlined in red.
