Animation by Granny-Wicked

ANIMATION ON THE INTERNET

Your first moving 'GIF'
"Basic" animation, using
Paint Shop Pro - Version 5
Make a series of 12 box images, with the edges all the same color. Fill 6 with color. Leave 6 non-filled.

PLEASE NOTE: Comments and items listed in COLORS are for you to use to make the animation box work using a specific version of the Paint Shop Pro program.

Select a single color (black) as your foreground color, to be used for drawing the lines.
Ruler turned on (View/Ruler) will help you to align your cursor correctly each time
If it helps turn on your grid lines (View/Grid)

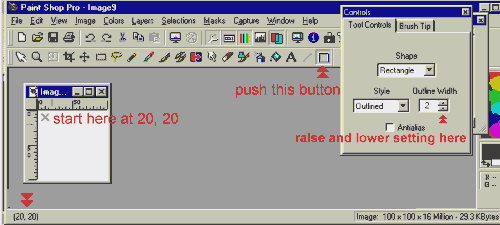

PSP #5 screen

SHAPE TOOL
Open A New Image Area 100 x 100 pixel White background 72 dpi 16 million color	SHAPE TOOL Rectangle or Square (select either) Style set to Outline Outline width set at 2 (increasing size by 2 each time as you make a new Box)

Note: In the lower left corner of all the PSP Program, it shows the settings for the cursor In the lower right hand corner it shows you the size of your image area and the bytes you are using at the time of creation.

screen
capture

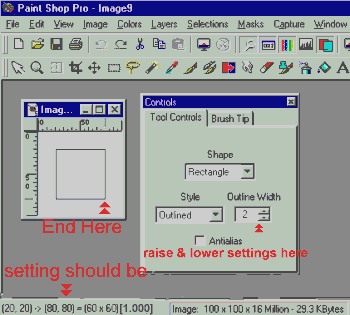

Start your box drawing at the 20,20 mark on your image, click the left mouse button and holding it down, draw/drag your cursor to the 80,80 mark. It is very important to stay consistent in your marks, on each of your animation layers, (Picture Frames) or it will be off by pixels. Each of the boxes, were created with the same settings, other then the outline number, which was increased by 2 for each new gif.

Again, there will be a total of 12 boxes completed for this animation project. Each one will be part of our animated Box. The first set of 6 are Boxes with the Outline width size changed from size 2 to 12. (2,4,6,8,10,12)

For the SECOND set of Boxes we will copy and paste each of the first 6 images we made as new images, then flood filled the center changing the center from white to another color. (I used Basic 216 pallet safe colors).

NOTE: If you choose to use PSP# 7 with the VECTOR properties manipulated, create each of the 12 boxes and manipulate the Vector area and save all 12 boxes separately.

Used pallet safe colors: Colors will show on all browser forum and have a faster loading time on a graphic intense page.

Similar to these

Plain Squares with Outline Width from size 2 to 12
Plain Squares with Outline Width from size 2 to 12
Squares with Center flood - filled with 216 pallet safe colors

Browser safe Color codes and names	Red = "#FF0000"	Lt.Blue = "#00FFFF"	Yellow = "#FFFF00"
Browser safe Color codes and names	Green = "#00FF00"	Dk. Blue = "#0000FF"	Purple = "#FF00FF"

Now we can take our individual pictures into Paint Shop Pro Animation
package and start the process of animation, or movement.

Animation lesson page 2
