Specifications

		32 Analog Inputs 8 bits 1.25V to 3.75V
		1 Analog Output 8 bits 1.25V to 3.75V
		6 Digital Inputs (Analog Inputs can be used as digital inputs also)
		28 Digital Outputs
		Able to simulate 3000 "gates" per second
		Memory can store around 200 "gates"
		Comes complete with cable to connect to PC printer port, 9V 1A plugpack and mounting posts
		Memory is capacitor backed and write protectable and will last around one week. Can also be battery backed.

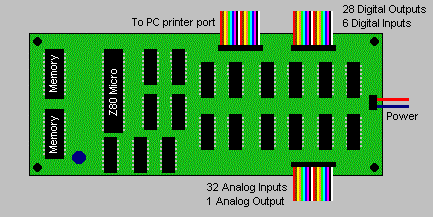

		Board measures 200mm by 80mm
