Matrices are extremely handy for writing fast 3D programs. As you'll see they are just a 4x4 list of numbers, but they do have 2 very important properties:

• 1) They can be used to efficiently keep track of transformations, ie actions which occur in a VR program such as movement, rotation, zoom in/out etc.

• 2) A single matrix can represent an infinate number of these transformations in any combination. Let's say the user in your program walks forward, turns left, looks up, backs up a bit etc... All you need to do is keep a copy of a master matrix in memory and adjust it as the user does these things. At any point you then use this one matrix to figure out where everything in your virtual world should be drawn on the screen.

In 3D computer graphics it is often convenient to assume that the view-point is always at the origin <0,0,0>. Not only does it make it easier to render a scene but it often makes it a lot faster as well. Instead of having the user move around the world we can keep the user at the origin and make the objects move around instead. From the users point of view it will look exactly the same. Matrices are a fast and convenient tool to perform these transformations.

A Point in Space

As mentioned above, a point or vector can be represented in 3D space as <x,y,z>. When using matrix math it helps to represent it as <x,y,z,w>. That extra w there helps make things like movement easier to deal with. If we have a point in 3D space we can convert it to this new format by setting w to 1. In this text I'll be representing all points in space as a collumn vector:

|x|

|y|

|z|

|w| <- w=1

Let's say we want to take any point <x,y,z,w> given and do something to it to get a new point. A row vector can be used to represent how we want to change a point:

These values                      |x|

contain the                       |y|        This is our

info on how we ----> |A B C D|  . |z|   <--- point in 3D

want to change                    |w|        space

the point

| x  y  z  w |

| A  B  C  D |     = (x * A) + (y * B) + (z * C) + (w * D)

Let's say we want to be able to take any point <x,y,z,w> and figure out the coordinates for the point <x',y',z',1> which is exactly 4 units to the "right" of it, ie the point which is 4 units further along the x axis. We can do this by using 4 row vectors. The first one will calculate the new x point (x'), the next one the new y point (y') and so on. First let's look at calculating x'.

We know that the new x point can be calculated like this: x' = x + 4, so a row vector to calculate this would be:

                     | 1  0  0  4 |

(x * 1) + (y * 0) + (z * 0) + (w * 4) = x + 4

x row vector ---->    | 1  0  0  4 |    x'=1*x + 0*y + 0*z + 4 = x + 4

y row vector ---->    | 0  1  0  0 |    x'=0*x + 1*y + 0*z + 0 = y

z row vector ---->    | 0  0  1  0 |    x'=0*x + 0*y + 1*z + 0 = z

1 row vector ---->    | 0  0  0  1 |    x'=0*x + 0*y + 0*z + 1 = 1

Here's a more generic representation of what we are doing:

|x'|         | M11  M12  M13  M14 |    | x |

|y'|    =    | M21  M22  M23  M24 |    | y |

|z'|         | M31  M32  M33  M34 |    | z |

|w'|         | M41  M42  M43  M44 |    | w |

Following the line of reasoning above, we can figure out how to calculate the new point based on the given point and the matrix:

x' = (x * M11) + (y * M12) + (z * M13) + M14

y' = (x * M21) + (y * M22) + (z * M23) + M24

z' = (x * M31) + (y * M32) + (z * M33) + M34

w' = (x * M41) + (y * M42) + (z * M43) + M44

Plugging a point into a matrix like this and getting a new point out is called "tranforming" a point by a matrix, just keep that in mind so you know what to call your procedure to do it!

A few of the more commonly used matrices follow. Now that you know how matrices work you should be able to derive these yourself, but heck I may as well save you the trouble.

Doing nothing

You often need a matrix to pop out exactly the same point as was plugged in. The matrix to do this is called the identity matrix:

|  1    0    0    0 |            x' = x

|  0    1    0    0 |            y' = y

|  0    0    1    0 |            z' = z

|  0    0    0    1 |

A translation is simply adding (or subtracting) a point to any given point. Let's say you want to add TX to x, TY to y and TZ to z. The matrix to do this is:

|  1    0    0    tx |            x' = x + tx

|  0    1    0    ty |            y' = y + ty

|  0    0    1    tz |            z' = z + tz

|  0    0    0    1  |

Sometimes we may need to scale a point, ie mutiply each axis by a given number. This is handy for things like zoom effects.

|  sx   0    0    0 |            x' = sx * x

|  0    sy   0    0 |            y' = sy * y

|  0    0    sz   0 |            z' = sz * tz

|  0    0    0    1 |

Basic Rotations

Things start getting a wee bit tricky here. For starters we can rotate things around the x axis, the y axis, or the z axis. Notice how each axis forms a line in 3D space? Well we can also rotate things around any arbitrary line. This is handy if we want to do effects like objects rotating about their own axis (I'll discuss this a bit later).

The matrix for rotating around the x axis by angle é is:

|  1      0      0     0 |            x' = x

|  0    cos é  -sin é  0 |            y' = (cos é) * y - (sin é) * z

|  0    sin é   cos é  0 |            z' = (sin é) * y + (cos é) * z

|  0      0      0     1 |

|  cos é   0    sin é   0 |            x' = (cos é) * x + (sin é) * z

|    0     1     0      0 |            y' = y

|  -sin é  0    cos é   0 |            z' = -(sin é) * x + (cos é) * z

|    0      0    0      1 |

|  cos é   -sin é   0    0 |            x' = (cos é) * x - (sin é) * y

|  sin é    cos é   0    0 |            y' = (sin é) * x + (cos é) * y

|    0       0      1    0 |            z' = z

|    0       0      0    1 |

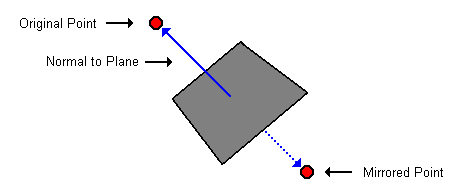

Mirroring involves flipping all points about an arbitrary plane in 3D space. This is illustrated in figure 1.

• 1) Calculate the distance of the point from the plane
• 2) Move the point in the opposite direction to the plane normal a distance of 2 * dist.

dist = p * normal + k

Based on the information above we can see that the final mirror equation is:

p' = p - 2 * dist * normal

   = p - 2 * (p * normal + k) * normal

   = p - 2 * (p.x*normal.x + p.y*normal.y + p.z*normal.z + k) * normal

p'.x = p.x - 2*p.x*nx*nx + 2*p.y*ny*nx + 2*p.z*nz*nx + 2*k*nx

p'.y = p.y - 2*p.x*nx*ny + 2*p.y*ny*ny + 2*p.z*nz*ny + 2*k*ny

p'.z = p.z - 2*p.x*nx*nz + 2*p.y*ny*nz + 2*p.z*nz*nz + 2*k*nz

| 1-2*nx*nx    -2*nx*ny     -2*nx*nz     -2*nx*k |

|  -2*ny*nx   1-2*ny*ny     -2*ny*nz     -2*ny*k |

|  -2*nz*nx    -2*nz*ny    1-2*nz*nz     -2*nz*k |

|      0           0            0            1   |

Multiplying Matrices

So now that we know how to represent each of the different types of matrix operations, how do we combine them? By multiplying two matrices together:

P = B x A

To multiply B by A, you treat each collumn in A as a seperate collumn vector, and transform it by matrix B to get the new collumn. Let's look at doing it for the first collumn in A:

|P11|       |B11  B12  B13  B14|     |A11|

|P21|   =   |B21  B22  B23  B24|     |A21|

|P31|       |B31  B32  B33  B34|     |A31|

|P41|       |B41  B42  B43  B44|     |A41|

| (A11 * B11) + (A21 * B12) + (A31 * B13) + (A41 * B14) |

| (A11 * B21) + (A21 * B22) + (A31 * B23) + (A41 * B24) |

| (A11 * B31) + (A21 * B32) + (A31 * B33) + (A41 * B34) |

| (A11 * B41) + (A21 * B42) + (A31 * B43) + (A41 * B44) |

|P11|       |B11  B12  B13  B14|     |A11|

|P21|   =   |B21  B22  B23  B24|     |A21|

|P31|       |B31  B32  B33  B34|     |A31|

|P41|       |B41  B42  B43  B44|     |A41|

|P12|       |B11  B12  B13  B14|     |A12|

|P22|   =   |B21  B22  B23  B24|     |A22|

|P32|       |B31  B32  B33  B34|     |A32|

|P42|       |B41  B42  B43  B44|     |A42|

|P13|       |B11  B12  B13  B14|     |A13|

|P23|   =   |B21  B22  B23  B24|     |A23|

|P33|       |B31  B32  B33  B34|     |A33|

|P43|       |B41  B42  B43  B44|     |A43|

|P14|       |B11  B12  B13  B14|     |A14|

|P24|   =   |B21  B22  B23  B24|     |A24|

|P34|       |B31  B32  B33  B34|     |A34|

|P44|       |B41  B42  B43  B44|     |A44|

          | P11  P12  P13  P14 |

B x A =   | P21  P22  P23  P24 |

          | P31  P32  P33  P34 |

          | P41  P42  P43  P44 |

Let A and B be our matrices,P will be the result (B x A).

var i,,j : integer;

for i := 0 to 2 do

    for j := 0 to 3 do

        begin

            P[i][j] := 0;

            for k := 0 to 3 do

                P[i][j] := P[i][j] + B[i][k] * A[k][j];

        end;

P[3][0] := 0; { Set the bottom row to 0 0 0 1 }

P[3][1] := 0;

P[3][2] := 0;

P[3][3] := 1;

Let's say we have two matrices A and B. If the following is true:

                | 1   0   0   0 |

A x B = B x A = | 0   1   0   0 |

                | 0   0   1   0 |

                | 0   0   0   1 |

There are several methods for calculating the inverse of a matrix, for large matrices the Gaussian method is preferred. Gaussian uses a technique called of "row reduction", first we create a large matrix like so:

    This is the matrix

    we are trying to                This is the identity

    find the inverse of                    matrix

|    A11  A12  A13  A14               1   0   0   0       |

|    A21  A22  A23  A24               0   1   0   0       |

|    A31  A32  A33  A34               0   0   1   0       |

|    A41  A42  A43  A44               0   0   0   1       |

    Identity matrix              The inverse

|    1   0   0   0           B11  B12  B13  B14    |

|    0   1   0   0           B21  B22  B23  B24    |

|    0   0   1   0           B31  B32  B33  B34    |

|    0   0   0   1           B41  B42  B43  B44    |

There are three kinds of elementary row operations we can use:

• RULE 1 - Interchange two rows.

RULE 2 - Multiply any row by a constant other than 0.

RULE 3 - Add a constant multiple of any row to another row.

var i,j,row : integer;

    multiple,divisor : real;

    A : array[0..3][0..7] of real;

Set values A[0..3][0..3] to our 4x4 matrix

Set values A[0..3][4..7] to the 4x4 identity matrix

{ Loop through each row }

for row := 0 to 3 do

    begin

        { Make sure this row doesn't have a 0 in A[row][row] (use RULE 1) }

        if A[row][row] = 0 then

            begin

                find a row i where (i>row) and (i<3) and (A[i][row] <> 0)

                interchange rows 'i' and 'row'

            end;

         { Divide this row by a constant so that A[row][row] = 1 (use RULE 2) }

         divisor := A[row][row];

         for j := 0 to 7 do

             A[row][j] := A[row][j] / divisor;

         { Make all other elements in collumn 'row' a 0 (use RULE 3) }

         for i := 0 to 2 do

             if i <> row then

                 begin

                     multiple := A[i][row];

                     for j := 0 to 7 do

                         A[i][j] := A[i][j] - multiple * A[row][j];

                 end;

     end;

Return the matrix in the values A[0..3][4..7]

One other very important thing to remember is that due to round-off errors you will often get values in the matrix such as 0.000001 which are supposed to be 0. When looking for a row where A[i][row] != 0 you must keep this in mind, and instead check that the absolute value is larger than some small number (eg 0.0001).

Rotating Around an Arbitrary Axis

Let's say we need to rotate space by about an arbitrary axis defined by the line o + kd (where o is the origin point <ox,oy,oz> and d is the directional vector <dx,dy,dz>). Here are the steps needed to perform this rotation:

1) First translate all of space so that the line of rotation starts at the origin. Do this by subtracting the line's origin point from all points. Here is the matrix needed, along with it's inverse:

    |   1    0    0   -ox  |            |   1    0    0   ox  |

F = |   0    1    0   -oy  |       F' = |   0    1    0   oy  |

    |   0    0    1   -oz  |            |   0    0    1   oz  |

    |   0    0    0    1   |            |   0    0    0   1   |

     |   dx/v   dy/v   0     0  |            |   dx/v  -dy/v   0     0  |

G =  |  -dy/v   dx/v   0     0  |       G' = |   dy/v   dx/v   0     0  |

     |   0       0     1     0  |            |    0      0     1     0  |

     |   0       0     0     1  |            |    0      0     0     1  |

3) Now rotate space around the y axis until the line of rotation lies along the z axis:

    |   dz/w   0    -v/w   0  |            |   dz/w    0    v/w    0  |

H = |    0     1     0     0  |       H' = |    0      1     0     0  |

    |   v/w    0    dz/w   0  |            |   -v/w    0    dz/w   0  |

    |    0     0     0     1  |            |    0      0     0     1  |

4) At this point the axis of rotation is a line lying along the z axis between the points <0,0,0> and <0,0,w>, so you can rotate space around the z axis by :

    |   cos A     -sin A     0       0  |

W = |   sin A      cos A     0       0  |

    |     0          0       1       0  |

    |     0          0       0       1  |

P = F' x G'x H' x W x H x G x F

Note that this method is NOT a good way of rotating points about an arbitrary axis. The term 1/v in the G and G' matrices can result in a singularity. This can easily be fixed by replacing G and G' with the identity matrix when v is 0, but I'll be including a much faster and safer matrix in the final Win95GPE release.

Solving Simultaneous Equations

Imagine that we have the following equations:

a*x + b*y + c*z + d = 0

e*x + f*y + g*z + h = 0

i*x + j*y + k*z + l = 0

Matrices on the other hand provide us with a very useful tool for solving such problems. We can create a matrix like this:

|0|       |a  b  c  d |     |x|

|0|   =   |e  f  g  h |     |y|

|0|       |i  j  k  l |     |z|

|1|       |0  0  0  1 |     |1|

                       -1

|x|       |a  b  c  d |     |0|

|y|   =   |e  f  g  h |     |0|

|z|       |i  j  k  l |     |0|

|1|       |0  0  0  1 |     |1|

x = A*0 + B*0 + C*0 + D*1 = D

y = E*0 + F*0 + G*0 + H*1 = H

z = I*0 + J*0 + K*0 + L*1 = L

In summary, if we create a matrix from 3 parametric equations and then calculate the inverse of that matrix then the 4th collumn will contain a point which satifies all 3 equations. If the inverse matrix operation fails then we know that the problem has no solution (or an infinate number of solutions).

Incidently the fact that we'll only wind up using the 4th collumn can help in optimising this procedure since we don't need to calculate the entire matrix.

2D Matrices

In this text I've been using 4x4 matrices for 3D coordinate geometry, but it's just as easy to use a smaller matrix for 2D (or higher), we simply drop the z term.

2D matrices are of the form:

|x'|       |M11  M12  M13 |     |x|

|y'|   =   |M21  M22  M23 |     |y|

|1 |       | 0    0    1  |     |1|

ie x' = M11*x + M12 * y + M13

   y' = M21*x + M22 * y + M23

         | 1    0    0  |              x' = x

         | 0    1    0  |              y' = y

         | 0    0    1  |

         | 1    0    tx |               x' = x + tx

         | 0    1    ty |               y' = y + ty

         | 0    0    1  |

         | sx   0    0  |               x' = x * sx

         | 0    sy   0  |               y' = y * sy

         | 0    0    1  |

         | cos(A)   -sin(A)    0  |               x' = cos(A)*x  - sin(A)*y

         | sin(A)    cos(A)    0  |               y' = sin(A)*x  + cos(A)*y

         |   0         0       1  |

This section is yet to be written. With all the math out of the way I'll be showing how to actually apply this knowledge to a 3D engine.

Important Note to Direct3D Users: Direct3D matrices are similar, but in the representation used by the help file the "x" and "y" dimensions are swapped around. Thus they show the translation matrix to be:

| 1  0  0  0 |

| 0  1  0  0 |

| 0  0  1  0 |

| tx ty tz 1 |
