99/00 Si Rear Swaybar

click to enlarge

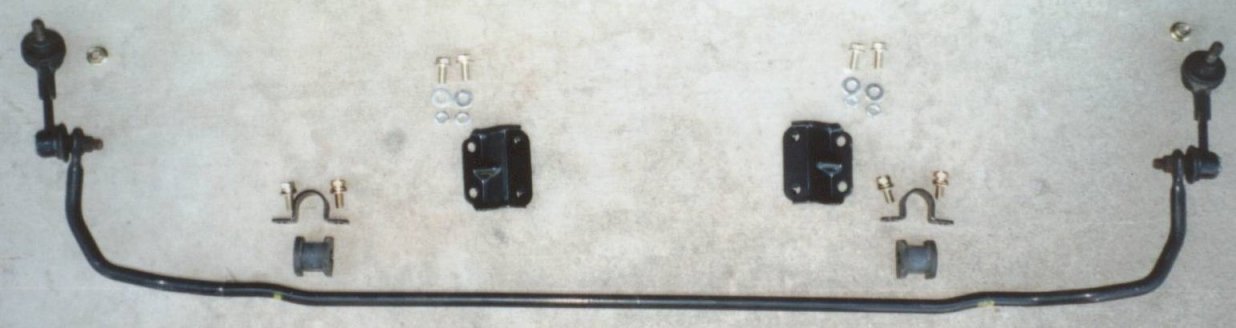

All the parts for the swaybar.

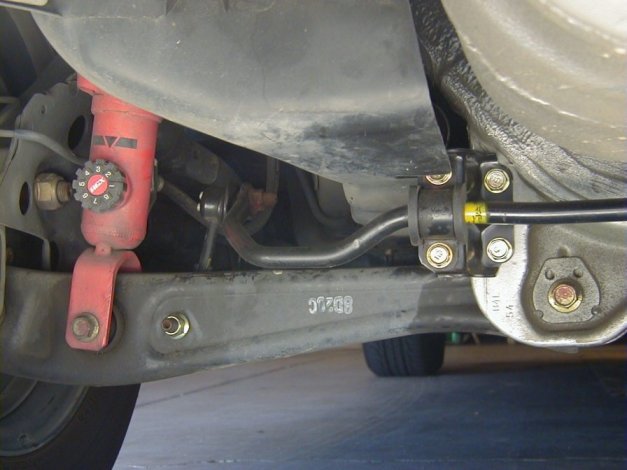

Here's the swaybar all mounted up, and a nice view of my shocks on setting 3.


                                  Parts List



                    1. 99/00 Civic Si Rear Antiswaybar
                    2. Antiswaybar Endlinks: 1 for each side
                    3. Endlink mounting nuts: 2 for each side. One bolt is for the LCA and the other is to mount the bar to the endlink
                    4. Swaybar D-Bracket: 1 for each side
                    5. D-Bracket bushing: 1 for each side
                    6. D-Bracket mounting bolts: 2 for each side
                    7. D-Bracket Plate: This plate is needed to connect the D-Bracket to the car's subframe
                    8. Plate nuts, bolts, and washers: 2 for each side
I think the LCA nuts are 12mm and all the other bolts are 10mm. You can't go wrong if you get them straight from the dealer.

Everything is basically bolt on and straight forward to install. I got my swaybar from www.sohfast.com It came with the bar, D-Bracket and bushings, and the endlinks. The parts I got from the Honda dealer were: all bolts, D-Bracket Plate, and Endlink nut for the LCA. From ACE Hardware I got nuts to mount the Plate and 4 washers (placed next to the nut, not the Plate). Email me if you have any questions.
