_4_______PD-A2_______1986
SPECIFICATIONS
|
Motor |
1DC Supplied |
|
Drive |
Belt drive |
|
Speeds |
33.1/3 & 45 rpm (+_6%) |
|
Wow & flutter |
better than 0,06% |
|
Plate |
30cm base aloy 30cm glass top |
|
S/N |
70 dB or more |
|
Tonearm |
Straight ADC ATL 1 |
|
Head |
STANDON 681 EEE-S |
|
Dimensions |
462mm#364mm#206mm |

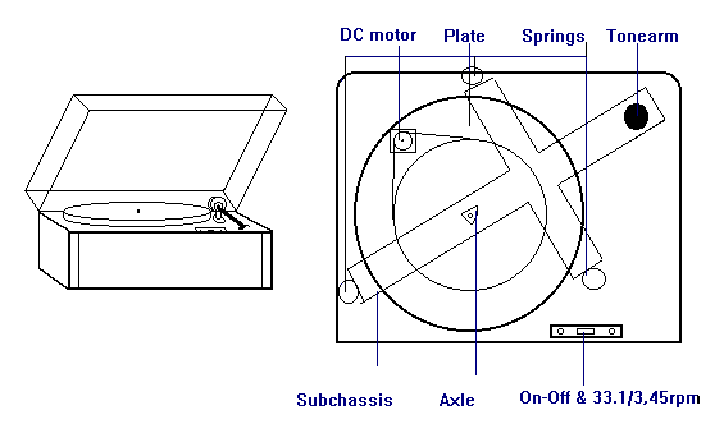

Construction solid sea novopan 100mm
Chassis-subclasses technique
3points suspend, 3 springs regulated
Wooden subclasses cross shape
COST ANALYSIS
Construction&.......900 drs
Motor & springs..13.000 drs
Tonearm..........15.000 drs
Head..............4.300 drs
Stylus........... 8.400 drs
Total cost.......41.600 drs
