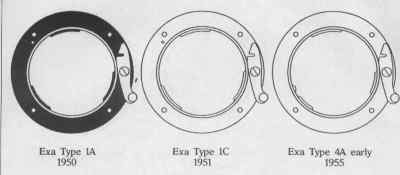

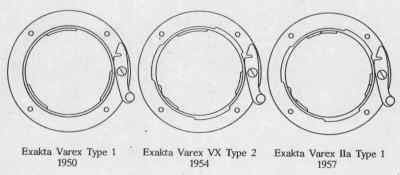

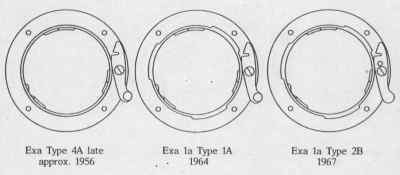

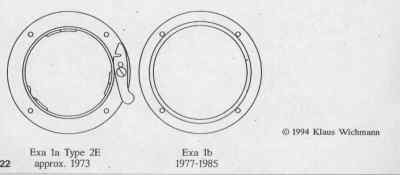

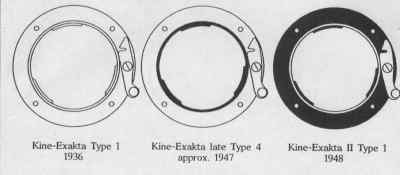

Exakta collecting is growing all over the world. Exakta and Exa lens-mounts Exakta lens-mounts 1936-1970 Exa lens-mounts 1950-1985 Kine Exakta Type 1 The prime lens-mount ******* Kine Exakta Type 4 After WW II brass was limited, from this reason the lens-mount was made from aluminium, later the arresting lever got an other shape ******* Kine Exakta II Black enamel Exakta Varex Brass again ******* Exakta Varex II Type 2 From Type 2 with additional outside bayonet flangesand a cut off at one of the inner bayonet flanges. The reason was to prevent dark edges by using telephoto lenses, Ihagee created the outside bayonet flanges ******* Exakta Varex IIa Like above, but with slots at the inner bayonet flanges Exakta Varex IIb Type 2 Approximatively 1966 the arresting lever got an other simple shape ******* Exakta RTL 1000 For the Exakta RTL 1000 with an additional hole for the inner diaphragm shutter release. The inner bayonet flanges were shortened ******* Unknown Type An unknown Type from my spare parts Exa Type 1A The prime Exa lens-mount, like Kine Exakta, but with a pinhole on the left top ******* Exa Type 1C Like Exakta Varex but with a pinhole on the left top ******* Exa Type 4 early Like Exakta Varex Type 2 but without outside bayonet flanges Exa Type 4A late Like Exakta Varex IIa but without outside bayonet flanges ******* Exa Ia Like Exakta Varex IIa with outside bayonet flanges ******* Exa Ia Type 2B early Like Exakta Varex Iib Type 2 with outside bayonet flanges Exa Ia Type 2E Like above but without outside bayonet flanges ******* Exa Ib M42 screw mount ******* by courtesy of Klaus Wichmann the author of the books: VON DER KINE-EXAKTA BIS ZUR ELBAFLEX EXA Die preiswerte Kleinbildreflex Eine historische Kameraserie wird vorgestellt edited by LINDEMANNS VERLAG Nadlerstrasse 10, 70173 Stuttgard Menu | Collection | Articles
