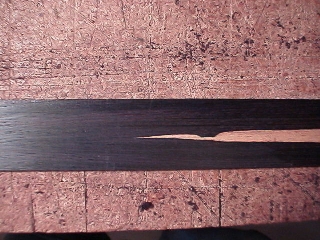

This is a closeup of the test joint. Two pieces of blackwood as long as sides. |
![]() |

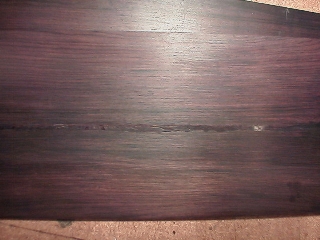

The long view after joining them and scraping. No joint visible!
so I decide I'll make the sides full depth, edge joining two pieces to
achieve the full depth.
(A bit of a hassle -{understatement} but I don't want to sacrifice the end result. |
![]() |

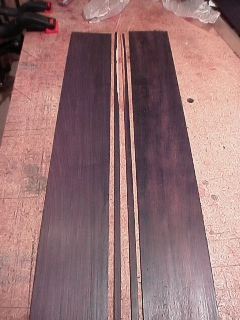

The two pieces on the outside will be joined. |
![]() |
Here they are after gluing. |
![]() |

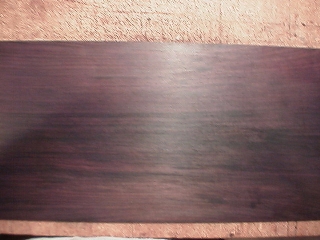

And after scraping. Looks pretty good I think. |
![]() |

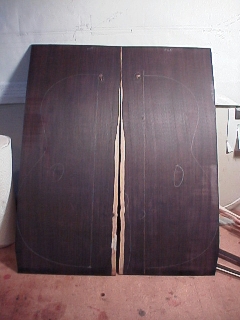

Here are the back pieces. I have drawn on the exact location of the plantilla. The sapwood in the middle will be used for ornamentation. |
![]() |

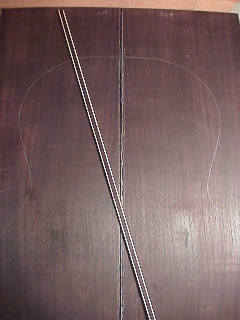

After trimming the excess from the center, I have made center strip out of the excess piece. I have glued on european maple strips (1.2mm) which will also surround the binding on the back and sides. The maple is "curly" so it sort of glimmers in the light. |
![]() |

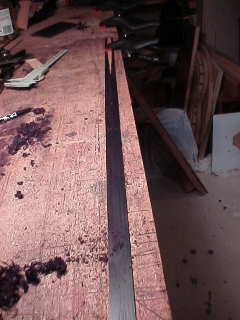

Here is the test joint strip with two applications of shellac. Very dark and very smooth. |
![]() |

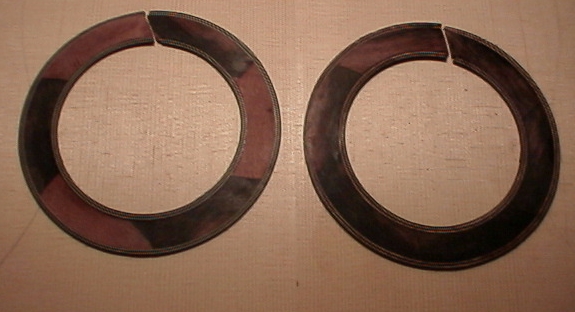

The rose on the right is the one I'll probably use. Not the best picture.... |
