Khan Jal's Camera Specs

| Camera | Capture Card | Software | Transmitter |

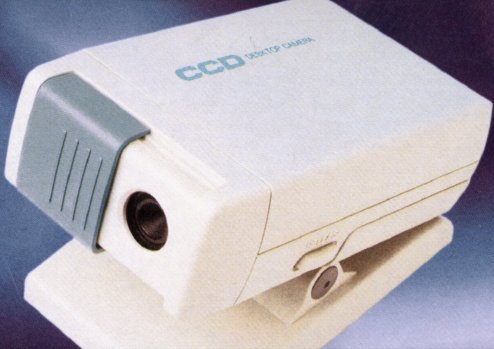

Camera Specifications
Type :
CCD Desktop Camera		 Brand :
Creative Labs		 Imager :
1/3 inch, CCD Area Image Sensor
Synchronizing Method :
Internal synchronization		 Lens :
1/3 inch, fixed focus (F:2.8 f=5.6)		 Resolution :
330 horizontal and 350 vertical lines
Output Impedance :
75 ohms, unbalanced		 Operating Temperature :
0 C (+32 F) to +40 C (+104 F)		 Number of Effective Pixels :
514 (horizontal) X 491 (vertical)
S/N :
More than 46 dB		 External Camera Dimension :
W 2-5/8 (67) X H 3/8 (34) X D
4-1/2 (113) inches (mm)		 Scanning Method :
2 : 1 interlaced
White Balance :
Automatic tracking
(2,800K-6,000K)		 Weight (camera alone) :
Approx. 5.3 oz (0.33 lb)		 Scanning Frequency :
15.734 kHz (horizontal),
59.94 Hz (vertical)
RF Regulation :
FCC Class B verified		 Power Supply :
12 V DC		 Video Output :
VBS (1 V, NTSC signal format)
AGC Sensitivity Switching :
Automatic		 Power Consumption :
Approx. 0.2A (at 12 V DC)		 Minimum Illumination :
10 Lux
Electronic Shutter :
Automatic electronic shutter
(1/60s to 1/15,000s)



Brand Name :Sharp
Model :VL-E785U - 8mm Viewcam® with 4" Color LCD View Screen
Features :
  • 3" High Resolution Color LCD View Screen
  • 16:1 Optical Zoom
  • Time/Date/Battery Remaining On-Screen Display
  • Titler with 8-Preset Titles
  • Remote Control
  • 0.8 Cat's Eye Lux Minimum Illumination
  • Up to 105 Minutes Continuous Recording
  • Hi-Fi Mono Recording/Playback System
  • Fingerprint Reduced Low Reflectivity (1%) LCD View Screen for Outdoor Use
  • 270° Variable Angle Recording
  • Instant Playback with Color and Sound
  • Self Recording
  • Full Range Auto Focus with Macro
  • Manual Focus
  • 4-Mode Auto Exposure Function
  • Auto Demonstration Mode
  • Digital Auto Iris and White Balance
  • Backlight Compensation
  • Power Saving LCD Off Function
  • Built-In Speaker
  • Time and Date Display
  • Battery and Tape Remaining Indicators
  • Quick Return
  • 180° Angle Playback Correction
  • Video Search
  • Audio/Video Dubbing Cables
  • Universal Voltage AC Adaptor/Battery Charger
  • Shoulder Strap
  • Protective Lens Cap
  • Size (WxHxD inches): 7 x 4-1/5 x 3-4/5
  • Approximate Weight: 1.65 lbs.


Camera Specifications
Type :
Indoor/Outdoor CCD Cam w/ mic.		 Brand :
X10		 Imager :
1/3 inch, CCD CMOS Sensor
Resolution :
310 TV lines		 Operating Temperature :
-10 C (+14 F) to +55 C (+131 F)		 Humidity Limits :
0 - 95% Humidity
Number of Effective Pixels :
510 (horizontal) X 492 (vertical)		 Scanning Method :
2 : 1 interlaced		 Power Supply :
12 V DC
Video Output :
NTSC		 Power Consumption :
Approx. 0.2A (at 12 V DC)		 Minimum Illumination :
(f1.8)
Electronic Shutter :
Automatic electronic shutter
(1/60s to 1/15,000s)		 Degree of View :
38
