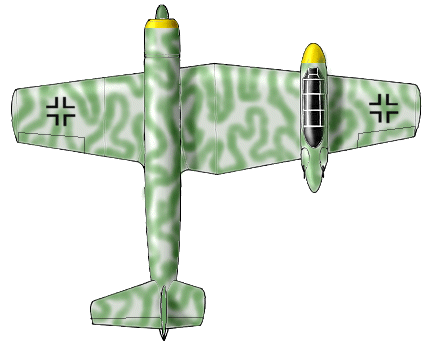

Artwork by Igor Shestakov

BLOHM und VOSS P.168

Two more asymmetric Stuka projects: BV.P.168 and BV.P.172 were very similar in layout and dimensions. Both were powered with one radial BMW 801 engine. The P.168 crew nacelle was armed with Me-410-style remote-controlled gun barbettes. The location of bombs is unknown, but evidently they were hung on the middle of the wing span out of propeller arc.

Type: Stuka

Engine:
BMW 801 1x1,600hp

Dimensions:
Wing span:
15m

Length:
12.45m

Weight:
-

Performance:
-

Armament:
Two 13mm MG131
500kg (?) bombs

4-view drawing

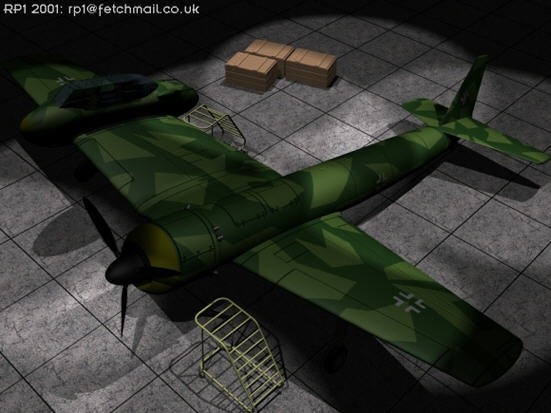

Artwork by Richard Pawling

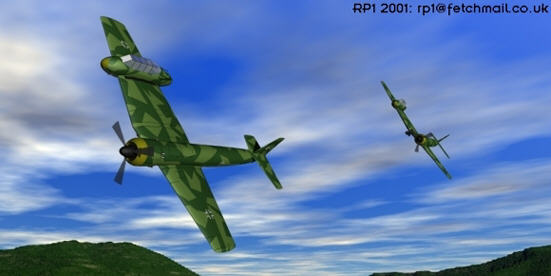

Artwork by Richard Pawling

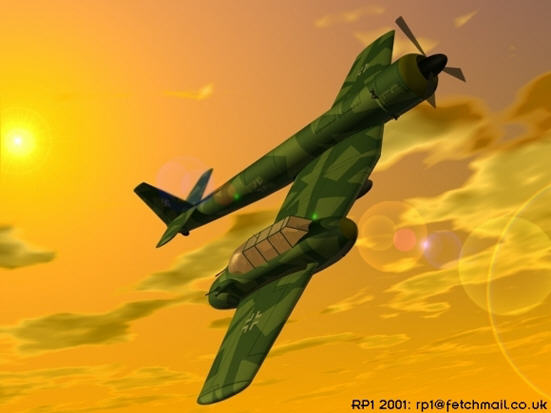

Artwork by Richard Pawling
