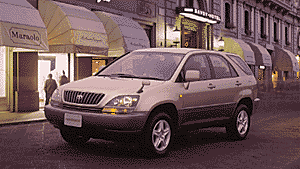

Here
it is! The 1998 Harrier SUV concept!
It also gave us the closest look at the Lexus RX300 introduced March of
1998.
|

The next-generation SUV that combines the performance of a passenger car and the
functions of a sports utility vehicle. The SUW Harrier is a completely new concept.
A car that satisfies two burgeoning consumer markets: those who want all the performance
attributes of a passenger car, and those who want all the functions of a sports utility
vehicle.
The Harrier is at home in formal city situations, as it is in the mountains or at
the beach. And its new design is worthy of its new concept. In front, over-and-under
headlamp units and a smart grille give a hefty impression, tempered with a suave
air. All the front-end lights are concentrated in two headlamp units, so they are
less susceptible to damage when driving over rough, unpaved roads.
From the side, the Harrier is very much a 4-wheel drive, evidenced by its big wheels.
Its flowing wedge-shaped silhouette is well balanced. The rounded rear window and
rear quarter emphasize its strong, smooth surfaces. The rear combination lamps are
covered by clear plastic lenses that are like extensions of the rear quarter panels. |
In the rear, the Harrier has a torque-sensing
limited slip differential (LSD). It has a higher bias than conventional differentials.
As a result, it is much better at determining the proper torque split between left
and right wheels.
The Harrier has Macpherson strut suspension front and rear, both hung on large subframes
that prevent vibration from being transferred to the body. On paved roads or off,
the Harrier's suspension assures excellent control, stable operation, and a quiet,
comfortable ride. |
 |
|
|

What a beautiful
engine! The Variable Valve Timing we've seen on Lexus sedans now comes here too!
|
The Harrier mounts Toyota's new-generation
BEAMS* 3.0-liter V6 1MZ-FE engine laterally in front. The BEAMS powerplant features
a VVT-i* valve train and a three-step variable intake system that adjusts the length
of the intake tract to match engine operating conditions. As a result, the engine
offers world top-class low-to-mid-range torque and high-speed performance that rivals
any passenger car. So the Harrier can readily act as passenger sedan or SUV.
A new active control engine mount uses pressure from the engine's intake manifold
to reduce engine vibration and booming noise in the cabin. In addition, it allows
idling to be set at very low rpms, improving fuel efficiency. |
|
| |
| Sports-Steer Shiftmatic transmission: On the
automatic transmission shift indicator panel, there is an M beside the D for Drive.
This function of the Sports-Steer Shiftmatic transmission allows the driver to shift
it like a manual. Once the gear shift lever is placed in M, thedriver shifts down
with the switch on top of the steering wheel spokes and up with the switch on the
underside, selecting and changing gears as necessary. This quick-shifting system
makes for exciting, sports car-like driving. |

And just look at this
center console! There's an LCD panel for GPS controls and notice how the shift lever
doesn't get in te way around the feet! |
|
|

Look at
the beautiful interior! Note the bright speedometer display and the slanted air vents!
|
Full-time 4-wheel drive: Who knows when an SUW will be called upon to navigate
rough roads? That's why Toyota engineers developed a new full-time 4-wheel drive
system for the Harrier. The center differential is engineered to split the engine's
torque to match the conditions the Harrier is traveling through. Rain and snow, for
example, pose no problems. |
|
