MD
HELICOPTERS
MD
530 MG/TOW |
|
|
|
Versión militar del MD 530F, especialmente desarrollado para el trabajo en altas altitudes y/o condiciones de alta temperatura. El

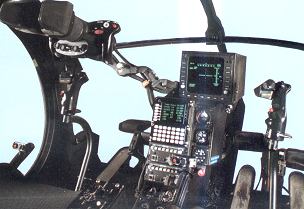

visor montado en el mastil (MMS) le permite al Defender lanzar sus
misiles TOW desde una posición lejana y a cubierto, proveyendolo de una
excelente supervivencia en combate. |
|
|
|
The powerful MD 530F is uniquely suited to fly at high altitudes and hot conditions, while maintaining exceptional perfomance. The
mast-mounted sight (MMS) permits the Defender to launch its TOW missiles
from a mask-defilade position, thereby further enhancing the excellent
battlefield survivability of the helicopter. |
|
|
|
Characteristics |
Information |
Characteristics |
Information |
| First
Flight Primer Vuelo |
1984 |
Engine Motor |
1
Allison |
| Seating
Capacity Plazas |
1 / 1 |
Power Potencia |
425 shp T.Off |
| Empty
Weight Peso Vacío |
1975 Lb |
Hover
Ceiling O.G.E. Estacionario O.G.E |
12000 Ft |
| Maximum
Weight Peso Máximo |
3550 Lb |
Hover
Ceiling I.G.E. Estacionario I.G.E |
14200 Ft |
| Vel.
Cruise Vel. crucero |
119 Kts |
Service
Ceiling Techo de Servicio |
16000 Ft |
| V.N.E. V.N.E |
152 Kts |
Maximum
Range (Std) Alcance (Std) |
230 NM |
|
Dimensions / Dimensiones |
|||
| Fuselage
Length Fuselaje Largo |
24,20 ft 7,40 mt |
Main
Rotor Diameter Diam. Rotor Principal |
27,40 ft 8,35 mt |
| Length,
Rotors Turning Dist. Rotores Girando |
32,10 ft 9,80 mt |
Tail
Rotor Diameter Diam. Rotor de Cola |
4,75 ft 1,45 mt |
| Total
Height Alto Total |
2,62 mt 3,84 mt (with MMS) |
Price Precio |
NA |
