BELL
HELICOPTERS TEXTRON
AH-1W / SUPERCOBRA |
Characteristics |
Information |
| First Flight Primer Vuelo |
- |
| Seating Capacity Asientos |
2 |
| Empty Weight Peso Vacío |
10300 Lbs. |
| Maximum Weight (Int.) Peso Máximo (Int.) |
14750 Lbs. |
| Maximum Weight (Ext.) Peso Máximo (Ext.) |
14750 Lbs. |
| Engine Motor |
2
G. E. |
| Power Potencia |
2032 ea / Cont |
| Transmission Rating Límite de Transmisión |
/ Cont. |
| V.N.E. V.N.E |
167 Kts. |
| Vel. Cruise Vel. crucero |
150 Kts. |
| Hover Ceiling O.G.E. Estacionario O.G.E |
3000 Fts. |
| Hover Ceiling I.G.E. Estacionario I.G.E |
14750 Fts. |
| Maximum Range (Std) Alcance (Std) |
317 NM |

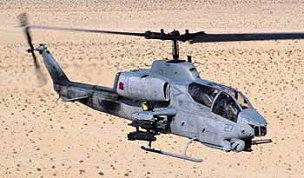

The AH-1W Super Cobra is a day/night marginal weather Marine Corps attack helicopter that provides enroute escort for our assault helicopters and their embarked forces. The AH-1W is a two-place, tandem-seat, twin-engine helicopter capable of land- or sea-based operations. The AH-1W provides fire support and fire support coordination to the landing force during amphibious assaults and subsequent operations ashore. The Bell Supercobra is currently in the Engineering and Manufacturing Development Phase of a major upgrade known as the H-1 Program. The programme calls for the remanufacture of the US Marine Corps fleet of AH-1W SuperCobra and UH-1N utility helicopters to an advanced four bladed configuration.The existing two-bladed semi- rigid, teetering rotor system is replaced with a four-bladed, hingeless, bearingless rotor system. First flight of the AH-1W (4BW) is scheduled for October 2000, with the UH-1N (4BN) flight a month later. Deliveries to the USMC will begin in 2003.
El Super Cobra es un helicóptero todo tiempo del cuerpo de la marina de USA, que provee apoyo para los helicópteros de asalto y las fuerzas embarcadas. Consta de dos plazas en tamdem, dos motores y es operado tanto en tierra como embarcado.
