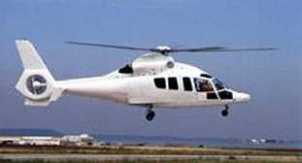

EUROCOPTER EC-155

The EC 155 is the latest evolution of the Dauphin family. Combining the large experience of the Dauphin fleet and the new technology assets steaming from Eurocopter’s Research and Developpment such as Avionique Nouvelle, 5 bladed Spheriflex main rotor head together with a new Fenestron tail rotor and a variable main rotor speed for low noise signature. The two Turbomeca Arriel 2C1 engines will power the EC 155 giving the helicopter a high level of performance.

Characteristics Características	Information Información	Characteristics Características	Information Información
First Flight Primer Vuelo	19??	Engine Motor	2 Turbomeca Arriel 2C1
Seating Capacity Plazas	1 / 12	Power Potencia	851 shp each
Empty Weight Peso Vacío		Hover Ceiling O.G.E. Estacionario O.G.E
Maximum Weight Peso Máximo	10582 Lbs	Hover Ceiling I.G.E. Estacionario I.G.E
Vel. Cruise Vel. crucero	143 Kts	Service Ceiling Techo de Servicio
V.N.E. V.N.E		Maximum Range (Std) Alcance (Std)	450 NM
