    |  |  | Barriers
      over the oceans |  |  |  |  |

    |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |

    |  |  |  |  |  |  |  |  |  |  |  |

    |  |  |  |  |  |  |  |  |  |

    |  |  |  |  |  |  |  |  |  |  |  |

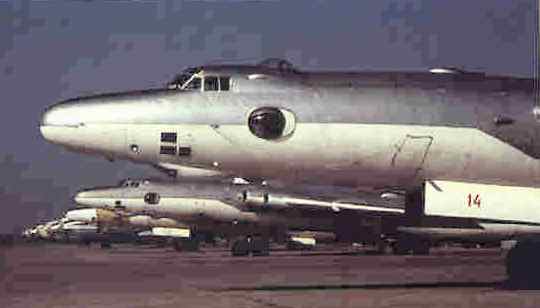

    |  |  |  |  | "M-4 Bison' deployment. This quadri-jet
        bomber, for many sources similar to American B-52, was built in a limited
        number of units, because the 'Tu-95 Bear' was preferred. |  |  |  |  |  |  |  |

    |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |

    |  For over a decade,
      from 1954 to 1965, the US Navy spent many efforts to participate in the
      defense of North American continent against the threat of Soviet Union nuclear
      bombers. The first Soviet nuclear experiment dated August 1949 represented
      a dramatic signal for United States, waking them up from the euphoria due
      to the victory in the II World War and then involved in an indiscriminate
      disarmament campaign. The worry raised with the confirmation that Moscow
      fitted some aircrafts to deploy the atomic bomb over North American targets,
      even if with a 'one way ticket' ; ironically, the candidate aircraft was
      the copy of the American B-29's, some of which were forced to land in Manchuria
      (a Soviet controlled territory), while in mission against Japanese targets.At the beginning of 1952 rumors said that a big number of Tu-4 was grouping
      in the oriental Siberia, from where they would have been able to attack
      the United States. The problem raised to a maximum level of alert in 1954.
      Washington analysts, probably on the base of false information obtained
      by Stalin's secret services, foresought a massive bomber manufacturing program
      in USSR that would have brought in the half of 1959 to a line of at least
      700 aircrafts (300 Tu-95
      Bear and 400 M-4
      Bison) capable to strike targets in the North American continent and
      to return to bases; other 700 aircrafts with more limited range (Tu-16
      Badger) had to be kept in account.
 In the February 1954 issue, aeronautical magazine 'Aviation Week' published
      a detailed study, initiating a firestorm about the threat and about the
      inadequacy of the American defenses, synthesized by the term 'bomber
      gap'; only two years later and after millions dollars in additional
      military expenses, truth was reestablished on the base of the incontrovertible
      photos shot over Soviet Union from the CIA
      U-2s. Anyway, which was the real situation of American defense? Practically
      invulnerable to the Japanese threats during the war, thanks to the distance
      that separated them from the Pacific war theater, United States began to
      mind about that problem only in 1948, on the wave of the Berlin
      crisis. Radar stations around the most sensitive places of the Country
      were set up, reactivating from the stores old war time devices, in order
      to protect the North-East, the areas of Seattle and Hanford, WA (where the
      production of the atomic ordnance were located), of Albuquerque and Los
      Alamos, NM (centers of nuclear research). The system was gradually extended,
      and in 1950 became operational the 'Lashup Net' embracing California,
      northern Mid West and Tennessee Valley, where the Atomic Energy Commission
      main plants were located.
 |  |

    |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |

    | Defense lines In 1951 was set up the first American defense line, named "Pine
        Tree", that gave anyway a too close forewarning to allow
        the positive interception of bombers coming from the north, because it
        extended in the South Canada only.To search a more effective solution, the 'project Lincoln' was
        started by the MIT. The MIT was, during the war, the main radar research
        center in the USA. Project Lincoln came to the conclusion that should
        be necessary to move the discovery devices as northward as possible, but,
        for that time, the project seemed technically and economically unfeasible,
        and met strong oppositions.
 President Eisenhower started the 'Project 752' to build the
        DEW line (Distant Early Warning), located
        at the northern border of American continent, whose American portion was
        completed in 1953, and Canadian portion in 1956, to become fully operational
        in 1957.
 As the national defense was an interforce matter, and it could not financially
        weigh on one armed force only, was established the CONAD (CONtinental
         Air Defense command), in order to centralize command and
        control, with its headquarter on Ent AFB, at Colorado Springs, Colorado.
        For the international DEW Line management, on September, 12 1957, was
        created the NORAD (NORth American Defense
        command).
 |  |

    |  |  |  |  |  |  |  |  |  |  |  |  |  |  |  |

    | Navy contribution  Let's make a back step: in 1949, facing
        the need to contribute to the 'Lashup' network, and because of its
        44 fixed land-based sites, the US Navy assumed the task to defend naval
        approaches to north-eastern USA. The service was reluctant to directly
        participate to air defense, because of the need to operate with and maintain
        huge forces, but it was forced to consent when became clear that the project
        would be carried on in any case and that, because of the poor sight range
        of radars, a great part of it will be projected in the oceanic environment.   |  |

    |  | In September 1954, was created the 2-barriers system, one
        over Atlantic Ocean, the other over Pacific Ocean, to defend the sides
        of the continent. The schema planned an inner barrier, managed by USAF,
        with land-based radars, or, as for Atlantic coast, based on towers built
        at sea, and with airborne radar pickets "EC-121" (derived from
        Navy's WV-2), and an outer barrier under the responsibility of US Navy.
        The barriers was part of the "Contiguous Barriers" system.
        CONAD requested 19 radar picket station to the Navy, but, because of limited
        funding, only 10 station could be built up, equally distributed over the
        two shorelines.From an organization point of view, on September, 1st, 1954 was established
        on the Ent AFB, the COMNAVFORCONAD (COMmander NAVal
        FORces CONAD), commanding three regional commands: Western,
        Central and Eastern. COMNAVFORCONAD had also the task of coordinate and
        program the US Navy Forces deployed to defense missions under the CONAD's
        ROC (Regional Operation Centers) command.
 The key forces were the surface units, equipped like radar pickets, bur
        six over seven class "Buckley" destroyers, transformed during
        1943/44 in DER
         (Radar
        Picket Destroyer Escort) were decommissioned at the end of war, and
        only one survived as a trainer in the reserve.

 |  |

    |

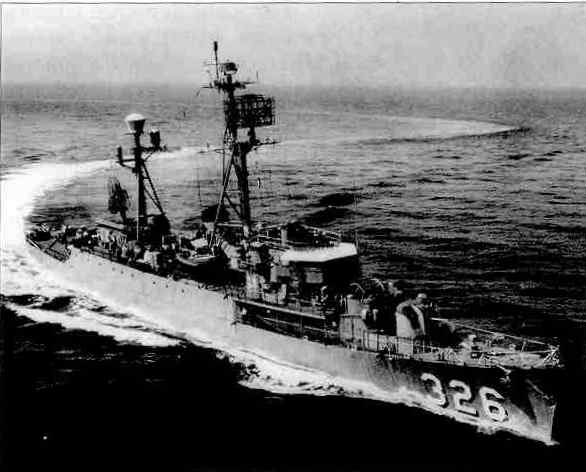

 | The idea to refurbish these old DER, whose equipment were now obsolete
        was soon abandoned, was instead chosen to transform some "Edsall"
        class DE (built around 1943/44): these units, with diesel engines, had
        a doubled range with respect to "Buckley"
        's.Six units were transformed during February 1951 and June 1952: the first
        was USS
        Harveson (DER 316), followed, between January 1955 and December 1957
        by other 28 "Edsall" class ships and 2 class "John

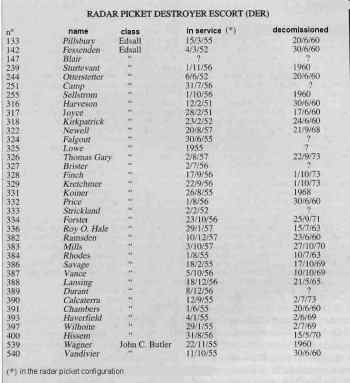

        C.Butler". The Navy then had in 1957 36 DER: the "Edsall"
        mounted a long distance "SPS-6" air search radar, a surface
        search "SPS-4" radar, IFF equipment, a radio-beacon and a TACAN
        (TACtical Air Navigation) to give assistance
        to aircrafts. The "Edsall" DER had a crew of 130 and a range
        of 21,000 km at over 20 Knots.
 USS
        Wagner (DER 539) and USS
        Vandivier (DER 540) were part of an experiment carried on to evaluate
        the feasibility of the transformation of the over 70 "John C.Butler"
        class DE: these ships had steam engines that gave them a range of only
        10.200 km at 22 knots, and for this reason the program was discontinued,
        and in 1960 the two ships were decommissioned, and the "DER"
        line was unified on the "Edsall".
 |  |

    |
