Welcome to ConnectPro. CPU Sharing

CS-601A, Multi-User CPU Sharing
Share a single computer with up to six users without all the networking costs! Item Number: CS-601A.

Features
Share 2 Consoles With 1 CPU
Share 2 Consoles With 1 CPU. Why purchase an extra computer to hold the same information or do the same tasks when you can just add another monitor, keyboard and mouse to the same system you are currently using. The 2 to 1 CPU Sharing device will allow you to share a single tasking system with another user without the purchase of networking cards and networking hassles.

Auto / Manual Mode Selectable
The 2 to 1 CPU Sharing device can switch between consoles either by button or chosen to switch to another console by auto time out. When neither console is being used for a selected amount of time, whichever console is used first will be selected as active.

Simultaneous VGA Display On Both Consoles
No matter which console is set to active, all monitors connected will display the same output so others may view at their consoles. This is great for teaching others how to do specific tasks.

Specifications
  • Private mode for privileged operation.
  • Screensaver protects the monitors.
  • Auto Scan and Auto Switch are fully transparent to the user.
  • Easy to install and operate.

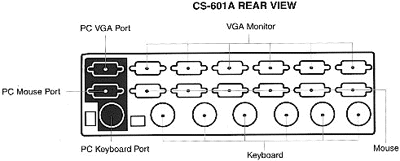

CS-601A Rear View.
Price and Features
Function Specifications
Retail Price $269
Sharing User Number 6
Sharing Function Keyboard & Mouse
Signal of VGA Port RGB Analog & HSYNC, VSYNC
VGA Band Width (-3db) 100 MHz
VGA Resolution 1024 x 768
LED 6 Inputs & 1 Manual Status
Function Key Auto / Manual Selection
Keyboard Connector 5 pin DIN Female
Mouse Connector 9 pin D Type Male / Female
Monitor Connector 15 pin HDB Type Female
Enclosure Metal
Weight 2650g
Dimensions (L x W x H) 254 x 180 x 82 (mm)
Power Consumption AC 9V 430mA (Max)
Note: specifications and prices are subject to change without notice.
