Product Description |
The fast and flexible solution for broadcasting video
information to the public!
Product Number: VS-102, VS-104, VS-108
|
|
Features |
- Duplicate video signals to two / four / five / eight video outputs.
- Our video splitters are more than just video duplicators:
they enhance video signals through long distance broadcasting
of up to 65 m (210 feet).
- The daisy chain feature enables you to connect multiple video
splitters together so you can use as many monitors as you want
with minimum cost.
|
|
Specifications |
- Gain control switch for optimum picture quality.
- Power-save mode when computer is off.
- Suitable for SVGA, VGA and Multisync monitors.
|
|

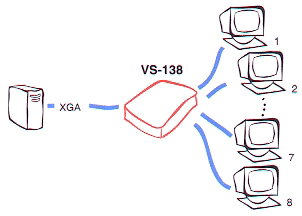

Video Splitter Application Diagram |
|
|
Prices and Features |
| Features |
VS-102 |
VS-104 |
VS-108 |
| Prices |
$79 |
$109 |
$149 |
| Slide Switch |
Video Signal Gain Control |
| Power Consumption |
DC 9V 130mA |
DC 9V 250mA |
| Cable Distance |
65 m / 210 feet (max) |
| Signal Type |
VGA, SVGA, Multisync Monitor |
| VGA Bandwidth (-3db) |
150MHz |
| VGA Resolution |
1024 x 768 |
| Input Connector |
1 15-pin HDB, Male |
| Output Connector |
2 15-pin HDB, Female |
4 15-pin HDB, Female |
8 15-pin HDB, Female |
| LED |
1, Power Indicator |
| Enclosure |
Metal |
Plastic / Metal |
| Weight |
190 g |
1150 g |
1200 g |
| Dimensions (L x W x H) |
104 x 98 x 24 (mm) |
224 x 152 x 52 (mm) |
| Note: specifications
and prices are subject to change without notice. |
| |
