Battery Hentig

This battery of two 3-inch guns on pedestal mounts was named for Captain Edmund C. Hentig who was killed by Apache Indians at Cibicu Creek, Arizona in 1881.
{see "American Seacoast Defenses" 2nd Ed. page 72}

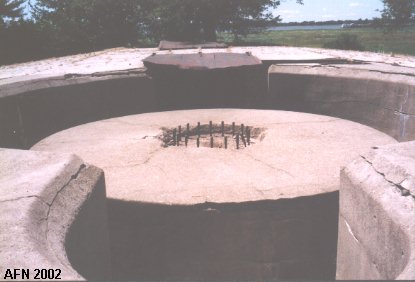

Emplacement #2	Emplacement #1

Battery Dodd

This battery of two 4.7-inch Armstrong quick firing guns was originally located on the old fort next to Battery Torbert. Built in 1898, that was only a temporary position and the guns were later moved to a permanent position outside the fort. The permanent battery was named for Colonel (brevet Brig Gen) Levi A. Dodd who commanded a Pennsylvania volunteer regiment during the Civil War. He left the service in 1865 and died in 1901. The guns and pedestal mounts were removed by 1921.
{see "American Seacoast Defenses" 2nd Ed. page 86}

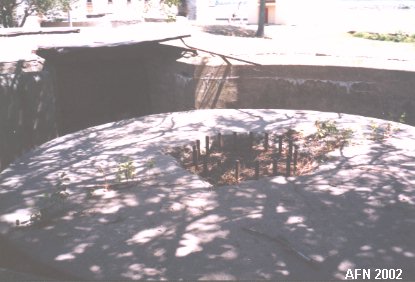

Emplacement #2	Emplacement #1

Mine Casemate & Miscellaneous

Mine Casemate
Fire Control Tower on the dike
cable hut	Engineer storehouse

|
