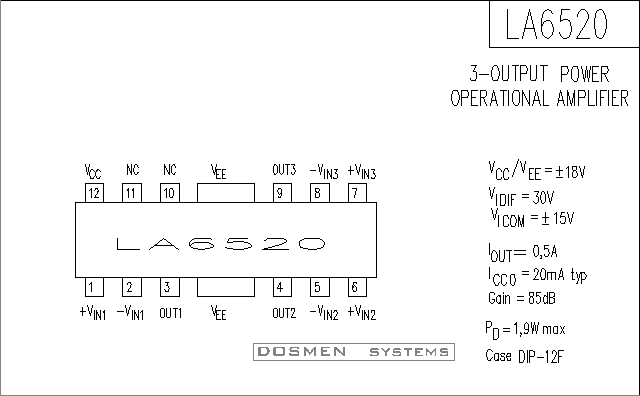

The LA6520 is a 3-output power OP amp designed for  use  in  consumer,
industrial application.


                                 FEATURES
     - High Output Current
     - High Gain
     - With Current Limiter
     - Wide Operating Voltage (+-2...+-18V)
     - Capable of being Operated from Single Supply (4...36V)
     - On-Chip Thermal Shutdown


                              MAXIMUM RATING
     Maximum Supply Voltage              +-18V
     Differencial Input Voltage            30V
     Allowed Power Dissipation             1,9W
     Operating Temperature                -20...+75C


     OPERATING CHARACTERISTICS            min      typ        max
     Quiescent Current Dissipation         -       20mA        -
     Input Offset Voltage                  -       2mV         -
     Input Offset Current                  -       10nA        -
     Input Bias Current                    -       50nA        -
     Maximum Input Voltage                 -     +-12V         -
     Voltage Gain                          -       85dB        -
     Limiting Current (On-Chip Limiter)    -       0,5A        -
