Split Cube
Prev Main Up Next



Up

  • Designer:
Stewart Coffin
  • Material:
Aluminium stock and metacrilate tray

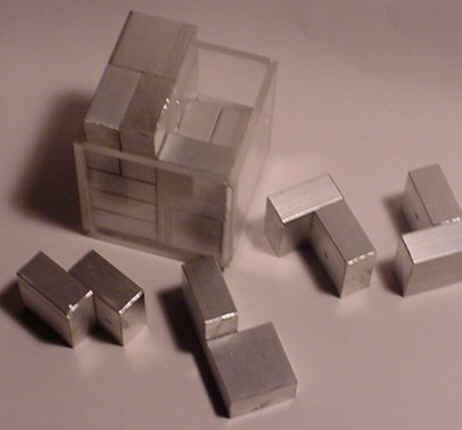

The original idea is to cut cubes into two identical halves and then rejoin them by their half-faces or quarter-faces all possible ways. The result is the 10 puzzle pieces shown below.
  • Pieces

10




A

B

C

D

E

F

G

H

I

J



  • Solutions

They pack into a 4x4x5 solid 15 different ways.

If we eliminate the pieces that are themselves rectagular (E and J) and try to pack them into a 4x4x4 solid there are no solutions. We can find solutions by eliminating one and duplicating another from the remaining eight. But there are only to favorable situations: eliminate D and duplicate F (4 solutions ), or eliminate H and duplicate C (7 solutions ).

CGN, 2001, 2002
