I wish to thank Dana Cooley who sails "Althea" a 1984 Sabre 34 MK I hull #220 out of Rock Hall, MD. for sharing these photographs taken at the Sabre plant.

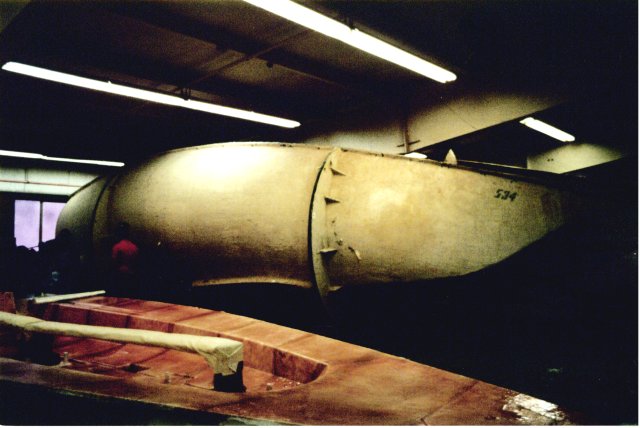

The Sabre 34 MK I hull mold

The mold with a hull laid up in it

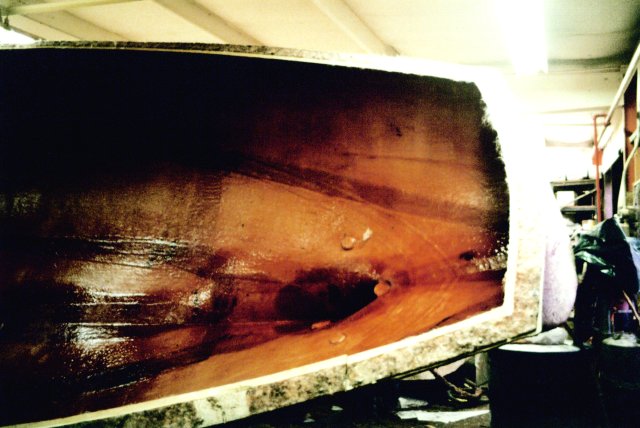

Stern section of hull in mold
The locations for the two cockpit scuppers
can be seen (the circular raised portions)
on either side and slightly forward of
the tube for the rudder post

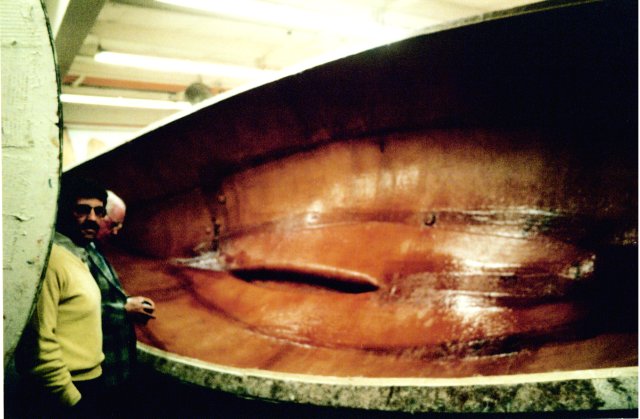

Here the keel bilge sump is visible
as well as the location for
the galley sink drain seacock
on the starboard side just
aft of the bilge sump.
You can also sea the 3 seacock
locations for the head and head
sink drain up forward on the
starboard side

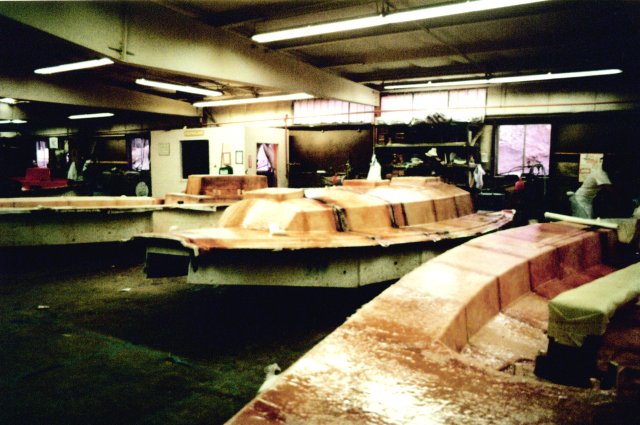

S-34 MK I deck mold

Click HERE for Page 2 of the construction photos
