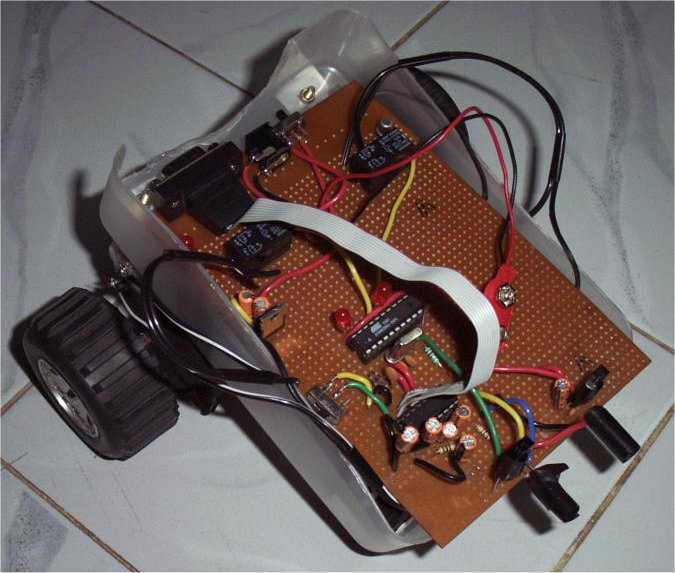

Josh, was my first attempt in robot building. It senses obstacles
using IR. It can also communicate with the computer with an RS232
interface. Hope the docs found in this page help you build your
first robot. :). Also visit http://home.conceptsfa.nl/~vdvelden/index/uk/html/index.html
which helped me a lot in getting started. For 8051 programing
visit http://www.ee.fit.edu/courses/ece1552/ATutor.htm
. If this link dosent work you could download the zipped
file(138K) which contains all the webpages. And http://www.beyondlogic.org/serial/serial.htm
for COM port programming.
The links listed above were found after a lot of searching, and
were the best i found.
Parts used:
AT89C2051
- The microcontroller
MAX232
- The RS232 level convertor
TSOP1738
- IR receiver
Download the microcontroller code.
Download the code to interface
the robot from the computer.
Download the circuit. In the circuit
the TSOP1738 connections havent been specified properly. Refer to
the its datasheet (linked above) for proper connections.
Contact me @ p_mdriyaz@hotmail.com
|
